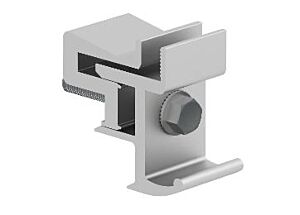

Sunmodo NANORACK-HOOK: Rail-Less Module Mounting Solution

This innovative module hook offers a streamlined and secure method for installing solar panels directly to the roof, eliminating the need for traditional rails.

About the NanoRack System

The SunModo NanoRack System is a rail-less solar mounting solution designed for fast and efficient installation, primarily on residential composition shingle roofs. Here's a breakdown of its key aspects.

Eliminates the Need for Rails: Unlike traditional solar mounting systems that require rails to attach the solar panels, the NanoRack system mounts the panels directly to the roof using specialized brackets and hardware.

Ground Assembly: A significant advantage is that much of the assembly can be done on the ground, with components attached directly to the modules before lifting them onto the roof. This simplifies the process and can save time and labor.

Self-Aligning: The system features a patent-pending hook-and-loop design that automatically aligns the solar panels as they are installed, eliminating the need for precise measuring between modules after the initial row.

Key Components of the NanoRack System:

• NanoRack Module Hook (NANORACK-HOOK): Attaches to the module frame and hooks onto the Universal Bracket.
• NanoRack Universal Bracket (NANORACK-UNI): Connects to the roof deck via the NanoPlus base and interlocks with the Module Hook to secure the panels.
• NanoPlus Base (NANOPLUS-B): The foundation that attaches directly to the roof deck using screws.
• NanoRack End Bracket (NANORACK-END): Provides a clean and secure finish for the outer edges of the solar array.
• Grounding Lug (GRND-SMR): For code-compliant bonding to the racking system.
• Wire Management Clips: To organize and secure PV wires and cables.
• MLPE Mount (MLPE-MODULE): For attaching Module-Level Power Electronics (MLPEs) like microinverters or optimizers.
• Skirts (Optional): To provide a clean aesthetic finish around the perimeter of the array

Check out the SunModo Racking Design Tool

Key Advantages:

• Rail-Free Simplicity: Securely fastens solar modules directly to the roof, reducing material costs and installation complexity.
• Top-Down Installation Efficiency: Features an intuitive top-down clamping design, significantly speeding up module placement.
• Broad Panel Compatibility: Designed to accommodate a wide variety of framed solar panels, offering versatile application.
• Reduced Parts, Simplified Inventory: Lowers the number of components required, streamlining inventory management and reducing potential errors.
• Clean, Low-Profile Aesthetics: Provides a visually appealing, minimalist installation with discreet hardware.

Engineered for Performance & Reliability:

• Precision Integration: Specifically engineered for seamless compatibility with SunModo NanoRack systems.
• Durable Construction: Manufactured from corrosion-resistant anodized aluminum with robust stainless steel hardware, ensuring long-term performance.
• Effortless Fastening: Incorporates a 13mm hex socket interface for quick and consistently torqued connections.
• Panel Protection: Engineered to apply uniform clamping pressure, safeguarding the integrity of solar panel frames.
• Code-Compliant Grounding: Supports UL 2703 compliant installations with integrated grounding capabilities, ensuring safety and code adherence.

Ideal Applications:

• Residential Rail-Less Solar: Perfect for homeowners seeking a sleek and efficient rooftop solar PV system.
• Versatile Roof Compatibility: Suitable for both asphalt shingle and metal roof installations.
• Installer-Focused Design: Empowers installers with a fast, reliable, and code-compliant rail-less mounting solution.
• Minimalist Mounting Needs: The top choice for projects prioritizing clean aesthetics and rapid, direct-to-roof module attachment.

Warranty:

• Backed by SunModo's 25-year limited warranty, providing assurance against material defects and workmanship when installed according to guidelines.

Specifications Table

About SunModo

SunModo, headquartered in Vancouver, Washington, is a U.S. manufacturer dedicated to delivering cutting-edge solar racking solutions for residential, commercial, and industrial projects. With a focus on innovation and installer efficiency, SunModo’s product line includes rail-less, pitched roof, flat roof, and ground-mount systems.

All products are engineered to meet UL and NEC standards, ensuring safe, fast, and reliable solar installations. SunModo’s mission is to reduce the cost of solar energy through thoughtful design and industry-leading support.
