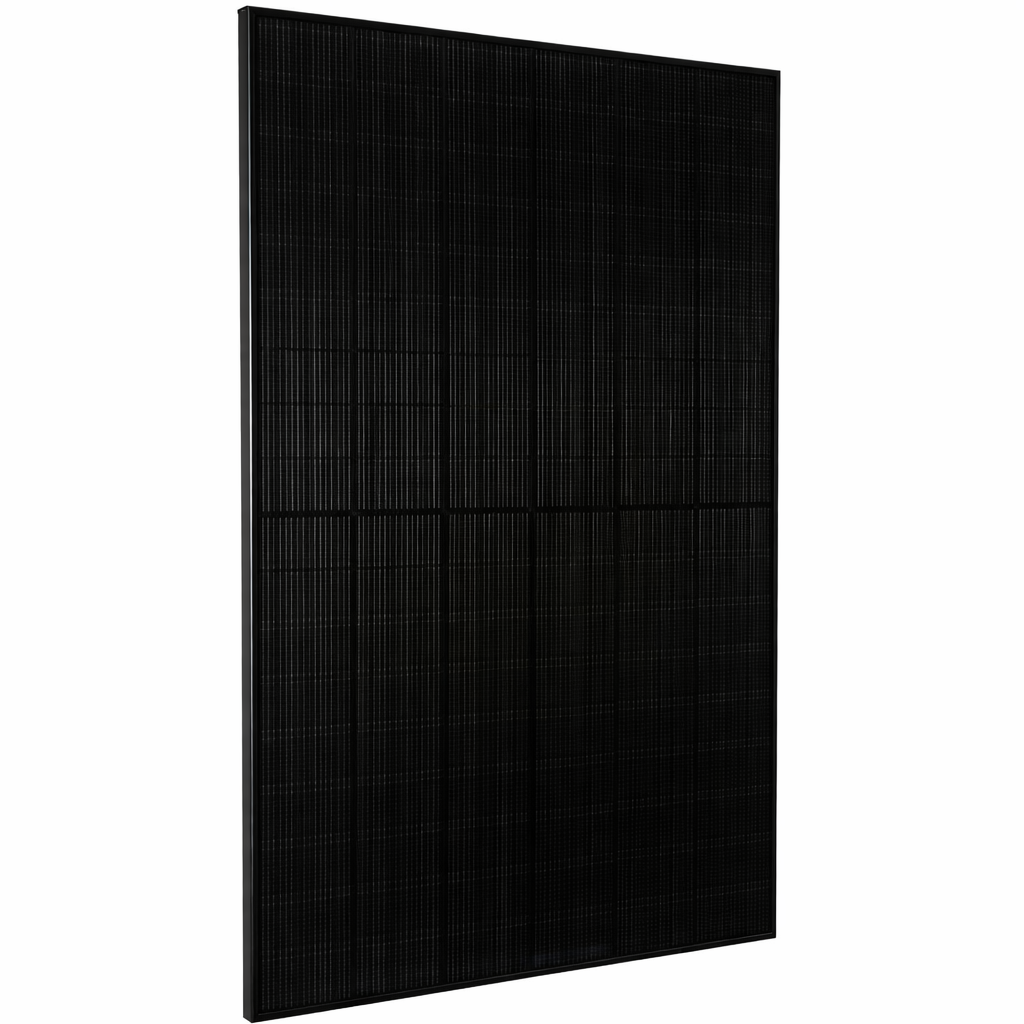

Mission Solar 435W N-type i-TOPCon Mono Black Solar Panel MSX10-435HNOB Domestic Content
MPN No: MSX10-435HNOB
Expected ship date Mar 15 - 22
In Stock
$225.66
Mission Solar 435W N-type i-TOPCon Mono Black Solar Panel MSX10-435HNOB Domestic Content
Mission Solar 435W N-type i-TOPCon Mono Black Solar Panel MSX10-435HNOB Domestic Content
Regular price
$225.66
$0.51/watt
New
657 IN STOCK
Mission Solar 435W N-type i-TOPCon Mono Black Solar Panel MSX10-435HNOB Domestic Content
Mission Solar 435W N-type i-TOPCon Mono Black Solar Panel MSX10-435HNOB Domestic Content
Available
MPN No: MSX10-435HNOB
Regular price
$225.66
$0.51/watt
Expected ship date Mar 15 - 22
We offer multiple secure payment options for your convenience
We offer multiple secure payment options for your convenience
Data Sheet
Regular price
$225.66
Mission Solar 435W N-type i-TOPCon Mono Black Solar Panel MSX10-435HNOB
Qualifies for Domestic Content
Assembled in the USA
The MSX10-435HN0B from Mission Solar Energy’s MSX N-Type 108HC series is a high-efficiency American-made N-type i-TOPCon monofacial module delivering 435W of power with 22.3% efficiency. Manufactured in San Antonio, Texas, this module is engineered for residential and commercial rooftops, offering best-in-class durability, superior low-light performance, and industry-leading warranty protection with 25-year workmanship and 30-year production warranty.
Key Technology
-
N-Type i-TOPCon Monocrystalline Cells
Advanced high-density interconnect and multi-busbar design improve current flow and reduce resistance. -
High Module Efficiency – 22.3%
Optimized 108 half-cell configuration maximizes rooftop energy density. -
Built for Tough Conditions
Certified for 5,400 Pa front and 5,400 Pa back load and resistant to salt spray, ammonia, humidity, sand, and high heat. -
Excellent Low-Light Performance
Specialized glass design and low temperature coefficient (-0.29%/°C) maintain strong output in cloudy or shifting conditions. -
Positive Power Tolerance
0 to +3% tolerance ensures strong field performance.
Best Uses
-
Residential Rooftop Systems
High efficiency and sleek black frame design ideal for premium home installations. -
Commercial Rooftop Projects
Strong mechanical ratings and 1,500V system compatibility for distributed generation. -
American-Made Solar Projects
Designed and manufactured in the USA for domestic content requirements.
Warranty
- Workmanship Warranty: 25 Years
- Production Warranty: 30 Years Linear Performance
- First-Year Degradation: ≤1%
- Annual Degradation (Years 2–30): ≤0.45%
- Guaranteed Output at Year 30: 86%
Product Specifications
| Specification | Details |
|---|---|
| Manufacturer | Mission Solar Energy |
| Model | MSX10-435HN0B |
| Cell Type | N-type i-TOPCon Monocrystalline |
| Cell Configuration | 108 Cells |
| Maximum Power (Pmax) | 435 W |
| Module Efficiency | 22.3% |
| Power Tolerance | 0 to +3% |
| Maximum Power Voltage (Vmp) | 33.31 V |
| Maximum Power Current (Imp) | 13.07 A |
| Open Circuit Voltage (Voc) | 39.56 V |
| Short Circuit Current (Isc) | 13.79 A |
| Maximum System Voltage | 1,500 V DC |
| Maximum Series Fuse Rating | 30 A |
| Operating Temperature Range | -40°C to +85°C |
| NOCT | 45°C |
| Temperature Coefficient (Pmax) | -0.29% / °C |
| Temperature Coefficient (Voc) | -0.25% / °C |
| Temperature Coefficient (Isc) | +0.05% / °C |
| Dimensions | 67.76 × 44.65 × 1.38 in |
| Weight | 46.96 lbs |
| Front Glass | 3.2 mm AR Coating Tempered Glass |
| Frame | 35 mm Anodized Aluminum, Black |
| Encapsulant | Polyolefin Elastomer (POE) |
| Junction Box | IP68 Rated |
| Cable | 1.2 m, 4 mm² (12 AWG) |
| Connector | MC4 EVO2 / Staubli EVO-2A |
| Fire Rating | Type 1 |
| Front & Back Load | Up to 5,400 Pa |
| Pallet Configuration | 30 modules per pallet |
| Truckload (53’) | 840 modules (28 pallets) |
About Mission Solar Energy:
Mission Solar Energy is an American solar manufacturer headquartered in San Antonio, Texas. Known as “America’s Module Company®,” Mission Solar produces high-quality, domestically manufactured modules designed for long-term durability, rooftop performance, and U.S. content compliance.
American-Built 435W High-Efficiency Rooftop Solar Module
The MSX10-435HN0B combines strong 22.3% efficiency, robust mechanical strength, and industry-leading warranty coverage. Ideal for residential and commercial rooftop installations seeking long-term reliability and American-made quality.
