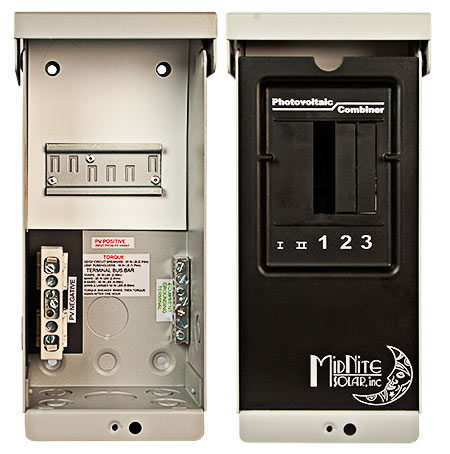

MidNite Two String Combiner Box MNPV2-1000
The MNPV2-1000 is a compact, high-voltage photovoltaic combiner box designed for safely combining and protecting two PV strings in modern solar installations. Engineered for reliability and ease of installation, this combiner is ideal for residential, off-grid, and small commercial PV systems operating at up to 1000V DC.
Key Technology
-
1000V DC String Compatibility
Designed for high-voltage PV arrays using fuses rated up to 1000V DC. -
Two-String Fused Combiner
Combines two PV source circuits into a single output with integrated overcurrent protection. -
NEMA 3R Rainproof Enclosure
Outdoor-rated aluminum enclosure protects internal components from weather exposure. -
Heavy-Duty Construction
Powder-coated aluminum housing with stainless steel hardware ensures long service life. -
ETL Listed to UL 1741
Certified for use in the U.S. and Canada, meeting applicable PV safety standards.
Best Uses
-
Residential & Off-Grid Solar
Ideal for small PV arrays combining two high-voltage strings. -
String-Level DC Protection
Provides fused protection before the inverter or charge controller. -
Compact PV Installations
Space-saving design fits easily near arrays or power electronics.
Installation Options
-
Vertical wall mounting
-
Pole mounting
-
Tilted roof mounting (up to 14° pitch)
Product Specifications
| Specification | Details |
|---|---|
| Manufacturer | MidNite Solar |
| Model | MNPV2-1000 |
| PV Input Strings | 2 |
| Maximum System Voltage | 1000 V DC |
| Overcurrent Protection | Fuses (up to 1000 V DC) |
| Max Output Circuits | 1 |
| Input Wire Range | 14–6 AWG |
| Output Wire Range | 14–1/0 AWG |
| Maximum Output Current | 60 A |
| Enclosure Rating | NEMA 3R (rainproof) |
| Enclosure Material | Powder-coated aluminum |
| Interior Cover | Molded plastic safety cover |
| Lockable | Yes |
| Certifications | ETL Listed, UL 1741 |
About Midnite Solar:
MidNite Solar is a U.S.‑based renewable energy manufacturer founded in 2005 in Arlington, WA. It makes advanced solar components like combiner boxes, charge controllers, inverters and battery‑based power systems for off‑grid, grid‑tied and backup applications, and is known as one of North America’s largest combiner box makers.
Compact, Code-Compliant PV String Combining
The MidNite Solar MNPV2-1000 delivers trusted 1000V DC string protection in a compact, weather-rated enclosure—making it a dependable choice for small to mid-size solar installations requiring safe and efficient PV string combining.
