Midnite Solar OutBack Power 1400W Inverter Charger GFX1448E
GFX1448E
Midnite Solar OutBack Power 1400W Inverter Charger GFX1448E

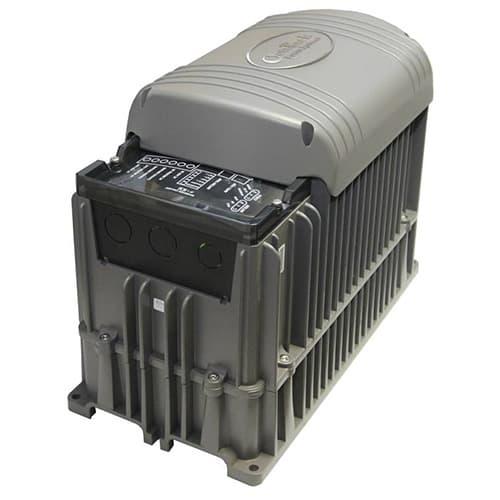

The OutBack GFX1448E is a sealed, true sine wave inverter/charger built for off-grid and grid-interactive applications requiring 230VAC 50Hz. This rugged solution delivers 1400VA continuous power and integrates a battery charger and transfer relay in a durable die-cast aluminum chassis.
Key Benefits
True Sinewave Output: Safe for sensitive electronics and motor loads.
Integrated AC Transfer Relay: Automatically switches between utility and inverter power.
Sealed Design: Engineered for harsh conditions such as salt air and high humidity.
Battery Charging: Intelligent multi-stage charging extends battery life with a 20A charger.
Grid Interactive: Supports grid-tied functionality with backup during outages (export only).
Special Technology
Advanced Surge Capability: Delivers 4600VA for up to 100ms and 2000VA for 30 minutes.
Modular Architecture: Expandable with additional OutBack inverter/chargers.
Low Idle Consumption: Just 18W full idle and 6W in search mode for efficient energy use.
Field Serviceable: Components are user-accessible for fast diagnostics and maintenance.
Warranty
Backed by OutBack Power's standard 5-year warranty. Extended warranty options may be available through authorized distributors.
Best Use
Off-Grid Residences: Core power system for homes using 230V solar equipment.
Remote & Harsh Environments: Sealed chassis resists salt air, dust, and humidity.
Grid-Interactive Systems: Enables sell-back and backup in export markets (non-UL).
Expandable Systems: Stackable design for increased capacity with additional GFX units.
Specifications Table
| Specification | Data |
|---|---|
| Model | GFX1448E |
| Continuous Power | 1400 VA |
| Nominal Battery Voltage | 48 VDC |
| AC Output Voltage / Frequency | 230 VAC / 50 Hz |
| Output Current (RMS) | 6.09 A |
| Max Surge Output | 4600 VA (100 ms), 2900 VA (5s), 2000 VA (30 min) |
| AC Input Voltage Range | 140–280 VAC |
| AC Input Frequency Range | 45–55 Hz |
| Battery Charger Output | 20 A |
| Max DC Current | 35 A |
| Idle Power (Full / Search) | 18 W / 6 W |
| Efficiency | 93% |
| Total Harmonic Distortion (THD) | Typical 2%, Max 5% |
| Output Voltage Regulation | ±2% |
| Enclosure Type | Sealed Aluminum Chassis |
| Dimensions (H × W × D) | 13 × 8.25 × 16.25 in |
| Shipping Dimensions | 21.75 × 13 × 22 in |
| Weight | 49.6 lbs (unit), 56.4 lbs (shipping) |
| Certifications | Not UL1741 – Export Only |
| Warranty | 5-Year Standard |
About MidNite Solar:
MidNite Solar is a U.S.-based manufacturer known for innovative, NEC-compliant power electronics and solar components. Their product line includes combiner boxes, charge controllers, breakers, and battery enclosures designed for off-grid, grid-tied, and hybrid energy systems.
