Midnite Solar Combiner Box 4 Space 3 String MNPV4BY3

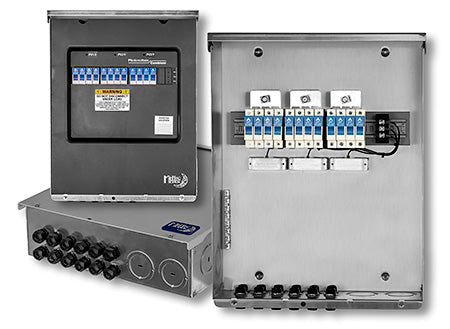

The MidNite Solar MNPV4BY3 is a weather-resistant combiner that packs three independent 4-string PV combiners into a single enclosure. Rated to 1000 VDC, it includes strain reliefs, knockouts for conduit, a protective plastic deadfront, and ships with twelve 30 A fuses for quick field deployment.
Key Benefits
3-in-1 Combiner: Consolidates three 4-string channels to simplify BOS and reduce enclosure count.
High-Voltage Ready: 1000 VDC rating supports modern string designs.
Installer Friendly: Includes 12 strain reliefs, multiple 2″ knockouts, and ships with 12× 30 A fuses.
Outdoor Durable: Type 3R, all-aluminum, powder-coated enclosure with protective deadfront.
Special Technology
High Current Busbars: 120 A per output busbar (360 A total across 3 channels).
Field-Adaptable Knockouts: 2″ side knockouts can be enlarged to 3″ in the field.
Warranty
Manufacturer’s Standard Warranty (MidNite Solar).
Best Uses
Commercial & Large Residential Arrays: Consolidating multiple strings and homeruns into a compact, outdoor-rated combiner.
Specifications Table
| Specification | Data |
|---|---|
| Model | MNPV4BY3 |
| Combiner Configuration | Three independent 4-string combiners (3×4) |
| System Voltage Rating | 1000 VDC |
| Inputs | 12 total (#14 to #8 AWG) |
| Outputs | 3 total (#6 to #1/0 AWG) |
| Busbar Rating | 120 A per output (360 A total for all 3 channels) |
| Fuses Included | 12 × 30 A |
| Strain Reliefs | 12 included |
| Conduit Knockouts | Two 2″ bottom; two 2″ side (field-expandable to 3″) |
| Enclosure | Type 3R, all-aluminum, powder-coated; plastic deadfront |
| Mounting | 14° to vertical |
| Dimensions | 16.37W x 20.70T x 5.29D |
| Weight | 15 lbs |
| Listings | UL 1741 & CSA 22.2 No. 107.1 (pending) |
About MidNite Solar:
MidNite Solar is a U.S.-based manufacturer known for innovative, NEC-compliant power electronics and solar components. Their product line includes combiner boxes, charge controllers, breakers, and battery enclosures designed for off-grid, grid-tied, and hybrid energy systems.
