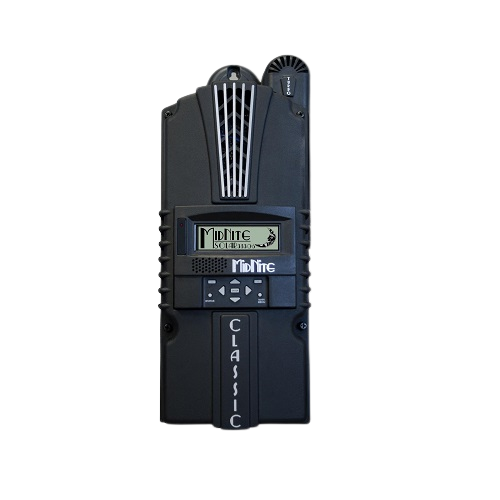

MidNite Solar Classic 250-SL MPPT Solar Charge Controller – CLASSIC250-SL

The MidNite Solar Classic 250-SL MPPT Solar Charge Controller | CLASSIC250-SL is a high-performance solar battery charge controller designed for off-grid photovoltaic installations, battery-based renewable energy systems, and compatible solar energy storage applications. Featuring advanced Maximum Power Point Tracking (MPPT) technology, high-voltage photovoltaic input capability, and programmable multi-stage battery charging, the Classic 250-SL provides efficient and dependable solar energy conversion for a wide range of battery system configurations.

Part of MidNite Solar's Classic SL Series, the Classic 250-SL combines the proven charging capabilities of the Classic family with a streamlined user interface designed to simplify installation, configuration, and everyday operation. The controller supports nominal battery systems from 12V through 72V DC, making it suitable for multiple battery-based renewable energy applications.

The Classic 250-SL features a 250V DC maximum photovoltaic open-circuit operating voltage and MidNite Solar's exclusive HyperVOC technology, which provides an additional non-operating voltage safety zone for cold-weather photovoltaic conditions. The controller also delivers up to 62A of battery charging current, depending on the nominal battery voltage.

Additional features include built-in DC ground-fault protection, programmable battery charging stages, automatic temperature compensation with a compatible battery temperature sensor, two auxiliary control outputs, RS232 and Modbus communication, and extensive operating history data logging.

The Classic 250-SL is compatible with MidNite Solar's Whiz Bang Jr current-sensing module and can operate in parallel with compatible Classic SL, standard Classic, and Classic Lite charge controllers to support coordinated battery charging in larger systems.

Designed and manufactured in the United States, the Classic 250-SL features a graphical display, user-friendly configuration menus, and a five-year limited manufacturer warranty.


Key Technology

  • Advanced MPPT Solar Charging: Continuously optimizes photovoltaic array operation to maximize available solar energy harvesting.
  • 250V PV Input Capability: Supports properly engineered high-voltage photovoltaic strings.
  • HyperVOC Technology: Provides an additional non-operating photovoltaic voltage safety zone for cold-weather conditions.
  • 12V–72V Battery System Support: Compatible with nominal battery systems across a wide range of voltages.
  • Up to 62A Charging Output: Delivers model-specific charging current according to the connected battery system voltage.
  • 98% Typical Power Conversion Efficiency: Supports efficient conversion of photovoltaic energy into battery charging power.
  • Multi-Stage Battery Charging: Supports bulk, absorption, float, and equalization charging.
  • Programmable Equalization: Provides adjustable equalization voltage and duration with manual or automatic operation.
  • Integrated DC Ground-Fault Protection: Features resettable ground-fault protection without a replaceable fuse.
  • PV Reverse Polarity Protection: Provides protection against specified photovoltaic input polarity faults.
  • Battery Reverse Polarity Protection: Includes protection against battery connection polarity faults.
  • Battery Short-Circuit Protection: Incorporates protective functionality for supported fault conditions.
  • Automatic Temperature Compensation: Supports battery temperature-based charging adjustments with an installed compatible sensor.
  • Graphical Display: Provides local access to operating information and configuration menus.
  • Streamlined User Interface: Simplifies controller setup and programming.
  • Whiz Bang Jr Compatibility: Supports compatible external battery current sensing equipment.
  • Two Auxiliary Control Outputs: Provides programmable options for compatible external controls.
  • RS232 and Modbus Communication: Supports monitoring and integration through documented communication protocols.
  • Extensive Data Logging: Stores daily operating history and detailed recent performance information.
  • Parallel Controller Operation: Supports coordinated charging with compatible Classic family controllers.
  • Relocatable Graphical Display: Allows compatible remote display configurations.
  • Made in the USA: Manufactured by MidNite Solar in the United States.
  • Five-Year Manufacturer Warranty: Backed by MidNite Solar's applicable limited warranty.

Best Uses

  • Off-Grid Solar Systems: Provides photovoltaic battery charging for independent renewable energy installations.
  • Residential Battery Storage: Supports appropriately designed battery-based solar energy systems.
  • 48V Solar Battery Banks: Provides MPPT charging for compatible 48V energy storage installations.
  • 24V Battery Systems: Supports solar charging for suitable 24V battery applications.
  • 12V Battery Systems: Provides charging for compatible low-voltage battery banks.
  • 72V Battery Installations: Supports appropriately configured higher-voltage battery systems.
  • Remote Cabins and Properties: Supplies dependable solar charging where utility power is unavailable or limited.
  • High-Voltage PV Arrays: Supports photovoltaic string configurations designed within the controller's input limits.
  • Cold-Climate Solar Installations: Offers HyperVOC protection functionality for properly designed systems exposed to low temperatures.
  • Expandable Solar Charging Systems: Supports compatible multi-controller configurations for increased charging capacity.
  • Battery Monitoring Applications: Integrates with compatible Whiz Bang Jr current sensing equipment.
  • Renewable Energy Retrofits: Provides a charge controller option for compatible battery-based photovoltaic upgrades.

Product Specifications

Specification Details
Manufacturer MidNite Solar
Manufacturer Part Number CLASSIC250-SL
Manufacturer Model Classic 250-SL
Product Series Classic SL Series
Product Type MPPT Solar Charge Controller
Charging Technology Maximum Power Point Tracking (MPPT)
Country of Manufacture USA
Battery Charging Specifications
Supported Nominal Battery Voltage 12V–72V DC
Maximum Output Current at 12V 61A
Maximum Output Current at 24V 62A
Maximum Output Current at 48V 55A
Maximum Output Current at 72V 43A
Battery Voltage Regulation Set Points 10–100V DC
Charging Regulation Bulk, Absorption, Float and Equalization
Equalization Voltage Adjustable
Equalization Duration Adjustable
Equalization Operation Manual or Automatic
Battery Temperature Compensation Automatic with Compatible Battery Temperature Sensor
Temperature Compensation Adjustment Adjustable mV per °C per 2V Cell
Low Battery Voltage Disconnect Programmable Using Auxiliary Outputs and External Equipment
Low Battery Voltage Reconnect Programmable Using Auxiliary Outputs and External Equipment
Photovoltaic Input Specifications
Maximum PV Open-Circuit Operating Voltage 250V DC
HyperVOC Technology Standard
HyperVOC Additional Voltage Allowance Battery Voltage up to 48V, Above the 250V Operating Limit
HyperVOC Operating Mode Non-Operating Safety Zone
MPPT Technology Integrated
PV Reverse Polarity Protection Integrated, Within Manufacturer-Specified Limits
Nighttime Reverse Current Zero, Using Internal Relay
Efficiency and Power Consumption
Typical Power Conversion Efficiency 98%
Maximum Standby Self-Consumption at 12V 2.8–4W
Automatic Temperature Derating Above 25°C
Protection and Safety
Built-In DC Ground-Fault Protection Standard
Ground-Fault Protection Reset Resettable, No Replaceable Fuse
Battery Reverse Polarity Protection Integrated
Battery Short-Circuit Protection Integrated
PV Reverse Polarity Protection Integrated
Positive Ground Applications Requires Two-Pole Input and Output Breakers
Terminal Temperature Rating 75°C
Communication and Monitoring
Display Type Graphical Display
Included Display MNGP Graphical Display
User Interface Streamlined Menu Structure
Communication Interfaces RS232 and Modbus
Communication Protocol Published Modbus Protocol
Networking Cable Type Standard Four-Conductor Phone Cable
Network Hub Requirement No Hub Required for Supported Networking
Whiz Bang Jr Compatibility Supported
Parallel Controller Compatibility Classic SL, Standard Classic and Classic Lite Controllers
Remote Display Capability MNGP Display Can Be Relocated
Additional Display Second Display Supported
Daily Data Logging 380 Days
Detailed Data Logging 24 Hours at 5-Minute Intervals
Auxiliary Control Specifications
Programmable Auxiliary Outputs 2
Auxiliary Output 1 12V Output or Dry Contact
Auxiliary Output 2 12V Output or Logic Input
External Load Control Supported with Appropriate External Switching Equipment
Mechanical Specifications
Product Dimensions (H × W × D) 14.9 × 6 × 4 in
Product Weight 12 lb
Enclosure Rating Indoor Type IP30
Enclosure Rating with Classic Drip Shield IP22 per IEC 60529
Side Conduit Knockouts One 1-Inch Knockout on Each Side
Bottom Conduit Knockouts Two 1-Inch Knockouts
Rear Conduit Knockouts Two 3/4-Inch Knockouts
Mounting Configuration Wall-Mounted
Environmental Specifications
Operating Temperature Range -40°C to +50°C
Operating Temperature Range (Fahrenheit) -40°F to +122°F
Temperature Derating Automatic Above 25°C / 77°F
Installation Environment Indoor, Subject to Enclosure Requirements
Certifications and Warranty
Safety Listing ETL Listed for United States and Canada
CE Certification Yes
EMC Compliance FCC Class B
IEC 62109 Pending in Supplied Manufacturer Datasheet
Manufacturer Warranty 5-Year Standard Limited Warranty



About MidNite Solar

MidNite Solar is an American manufacturer specializing in renewable energy electrical equipment for solar photovoltaic, off-grid power, and battery storage applications.

The company's product portfolio includes MPPT solar charge controllers, inverter equipment, combiner boxes, electrical enclosures, circuit breakers, surge protection devices, and renewable energy system accessories.

MidNite Solar focuses on dependable power conversion, electrical protection, system flexibility, and practical equipment integration for renewable energy installations.


Advanced Solar Battery Charging with MidNite Solar Classic 250-SL

The MidNite Solar Classic 250-SL MPPT Solar Charge Controller CLASSIC250-SL combines high-voltage photovoltaic input capability, advanced MPPT technology, flexible battery voltage compatibility, HyperVOC protection, programmable charging, and integrated monitoring in a dependable renewable energy charging platform.

Designed for compatible off-grid and battery-based photovoltaic systems, the Classic 250-SL provides efficient solar energy conversion and flexible integration with MidNite Solar's Classic family equipment.
