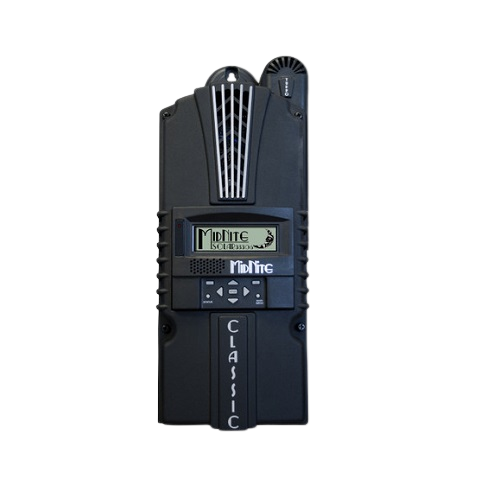

MidNite Solar Classic 150-SL MPPT PV Charge Controller

MidNite Solar Classic 150-SL MPPT PV Charge Controller

$611.97
$611.97

MidNite Solar Classic 150-SL MPPT PV Charge Controller

MidNite Solar Classic 150-SL MPPT PV Charge Controller

No reviews
$611.97
$611.97
View full details
Description
Questions
Reviews
Default manufacturer logo
Manufacturer
MidNite Solar
Weight
13 lb
Dimension
(LxWxH):19.00 x 6.00 x 8.50 inches

The Midnite Solar Classic-SL-150 MPPT Charge Controller is a high-quality charge controller designed for photovoltaic (PV) systems. This versatile controller is optimized for PV applications and offers advanced features for efficient energy management. It supports a wide range of battery voltages (12-72V) and features an LCD, Ground Fault Protection (GFP), and Battery Temperature Sensor (BTS). Please note that this model does not include Arc-Fault detection or Ethernet connectivity.

Key Features:

  • Flexible & Versatile:

    • Supports 12-72V battery charging with options for up to 120V battery banks.
    • Designed for solar, wind, and hydro MPPT modes.
    • Allows parallel operation for multiple Classic charge controllers.
    • Manual and Auto EQ (Equalization).
    • Exclusive HyperVOC extends the Voltage Open Circuit (VOC) limits.

  • Powerful Communications:

    • Equipped with Ethernet, USB, and RS232 ports.
    • Supports both remote and local displays.
    • Offers 20 megabytes of data logging (up to 380 days).
    • User-friendly wizard guides you through setup, including battery connection, PV array sizing, wind turbine program selection, wire sizing, breaker selection, PV combiner selection, sunrise, and sunset program setup, voltage drop calculations.
    • Compatible with the Clipper and Whizband Jr.
    • Online status monitoring available.

  • Safe & Reliable:

    • Built-in DC-GFP (Ground Fault Protection) and Arc Fault Protection.
    • ETL listed to UL1741 standards.
    • Ground fault protection included.
    • Provides equalization charging with adjustable voltage and duration (manual or auto).
    • Fully protected against battery reverse polarity, overvoltage, and short circuits.

Technical Specifications:

General Information:

  • Manufacturer: MidNite Solar
  • Product Line: Classic
  • Model ID: CLASSIC 150-SL
  • Manufactured In: United States of America
  • Certifications and Safety Ratings: UL, ETL, CE, FCC, Made in America

Mechanical Data:

  • Technology: Maximum Power Point Tracking (MPPT)
  • Dimensions: 19.00 x 6.00 x 8.50 inches
  • Weight: 13.00 lbs
  • Casing: Black
  • Display: Graphical Display (MNGP)
  • Auxiliary Control Output: Two Auxiliary Outputs (Programmable)
  • Communications: Modbus & RS232
  • Network Cables: Standard 4 Conductor Phone Cable
  • Environmental Rating: Indoor Type IP30

Electrical Data:

  • Nominal Battery Voltage: 12V - 72 Volts
  • Maximum Output Current: 96A on 12V, 94A on 24V, and 86A on 48V Battery
  • PV Open Circuit Voltage (Voc): 150V + HyperVOC
  • Power Conversion Efficiency: 98% (Typical System)
  • Maximum Stand-By Self-Consumption: 2.8W-4W
  • Reverse Current at Night: Zero (Internal Relay for Reverse Current)
  • Charging Regulation: Bulk, Absorb, Float, & Equalization
  • Operating Temperature: -40°C to +50°C (Controller Auto Derate above +25°C)
  • Terminal Rating: 75°C

The Midnite Solar Classic-SL-150 MPPT Charge Controller is a reliable and efficient solution for PV systems. It combines flexibility, communication capabilities, and safety features to optimize your energy management. Please note that this model does not include Arc-Fault detection or Ethernet connectivity.
