MidNite MNDC250-X2 (Midnite Solar MNDC250-X2 250A 125Vdc Mini DC Disconnect Box)

MIDNITE SOLAR MINI DC DISCONNECT BOX - MNDC-250-X2
Midnite Solar, Mini DC Disconnect box with 2 DIN rails & Dual 250A panel mount breakers, 250VDC, 3/8" by 1.5" Studs, MNDC250-X2

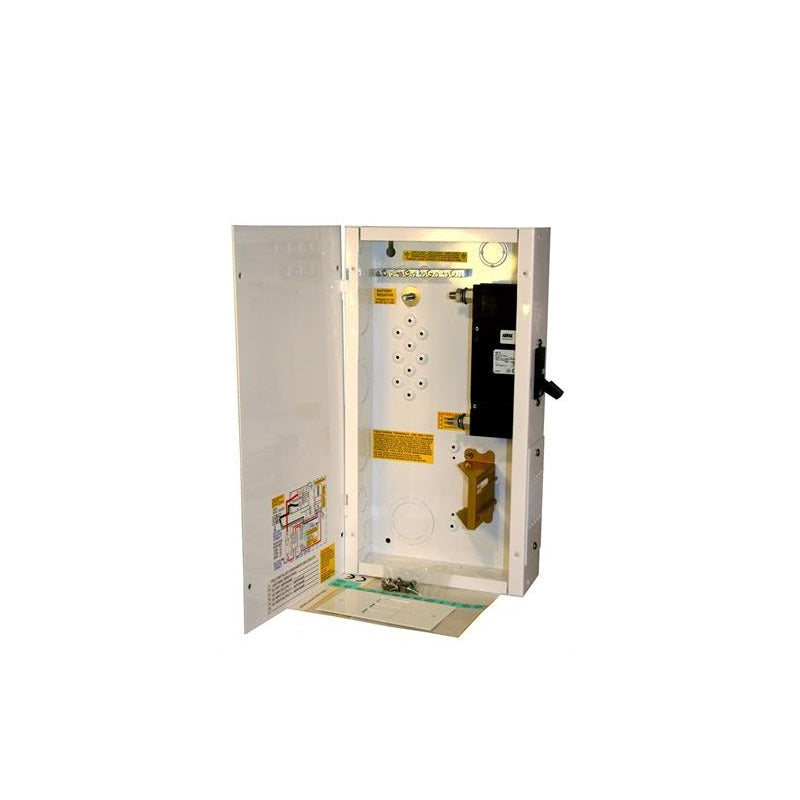

Based on Midnite Solar's Wide E-Panel chassis with a blank door the MNDC250-X2 has a pair of 250 amp dc breakers and the earth ground buss bar. It has locations for 10 din rail breakers, 3 panel mount breakers, DC shunt as well as long and short terminal buss bars.

MNDC250-X2 utilizes the MidNite E-Panel enclosure. The door is blank. There are large 250A/125VDC battery breakers out each side for disconnecting two sources or loads. Listed by ETL for US & Canada.

Use this small DC disconnect, which includes the inverter breaker (not in the MNDC-C), to provide overcurrent protection for any single inverter. The MNDC comes with a DIN rail for five additional DC breakers for DC loads, a charge controller disconnect, and a battery-status monitor. They also include a ground bus, and a 5/16" bonding battery-negative stud. Mounting holes for a 500 A shunt are built in. The white powder-coated aluminum chassis measures 10"H x 5"W x 18"D and weighs 7 lbs. Three main-breaker sizes are available. Left-side main-breaker placement is available by special order.

The MNDC Plus version has an additional DIN rail allowing up to ten DIN-mount breakers. Two DIN rail cover plates and two panel-mount plates are included. The panel-mount plates allow for mounting the 3/4" 150 VDC breakers that range from 60 A to 100 A. Additional configurations include: an MNDCGFP80 with four panel-mount breakers, or one MNDC-GFP, one 3/4" panel-mount breaker and five DIN-mount breakers with a 125-250 A inverter breaker. Circuit breakers and DC GFP are sold separately. Mounting is provided for a 500 A shunt and an MNTBB-R terminal busbar. Battery-negative stud and ground busbar included.

The MNDC-C comes with an adapter attached to mount one of the smaller single-pole panel mount breakers, available in sizes from 1 A to 100 A (3/4 inch MNEDC panel mount breaker not included). Chassis is white powder coated aluminum with 5 DIN rail breaker slots or 3 panel mount breaker slots.

The MNDC175-L is a white powder coated aluminum chassis with 175A/125VDC breaker and 5 din rail breaker slots or 3 panel mount breaker slots. The 175 A breaker is located on the left side of the enclosure.

The MINI DC X2 versions have two DC battery breakers, one on each side of the enclosure. The MINI DC 125 X2 Disconnect is a white powder-coated aluminum enclosure while the MINI DC 175 X2 and the 250 X2 are powder-coated gray steel. They all come with the 125, 175 or 250 A battery breakers. The MNDC X2 accepts an additional five din-rail breakers or three panel-mount breakers. The boxes all come with grounding busbars and space to mount a 500 A shunt.

The MNDC125-X2 measures 25"H x 11"W x 4"D and weighs 13 lbs.

The MNDC175-X2 and the MNDC250-X2 measure 25"H x 16"W x 4"D and weigh 29 lbs.

Features

User Friendly - Designed for easy installation and compatibility.
