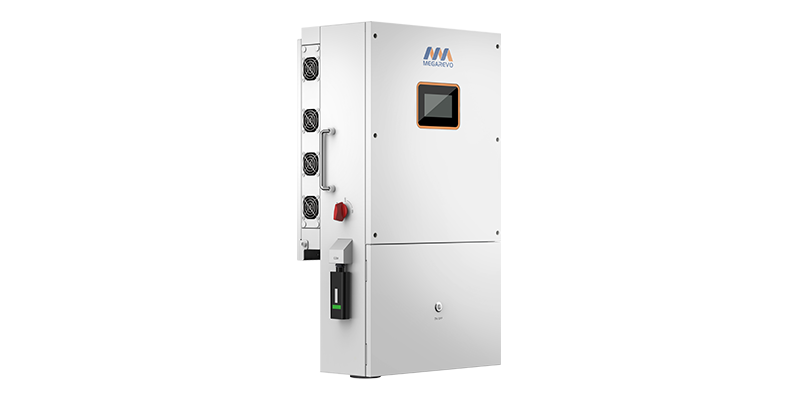

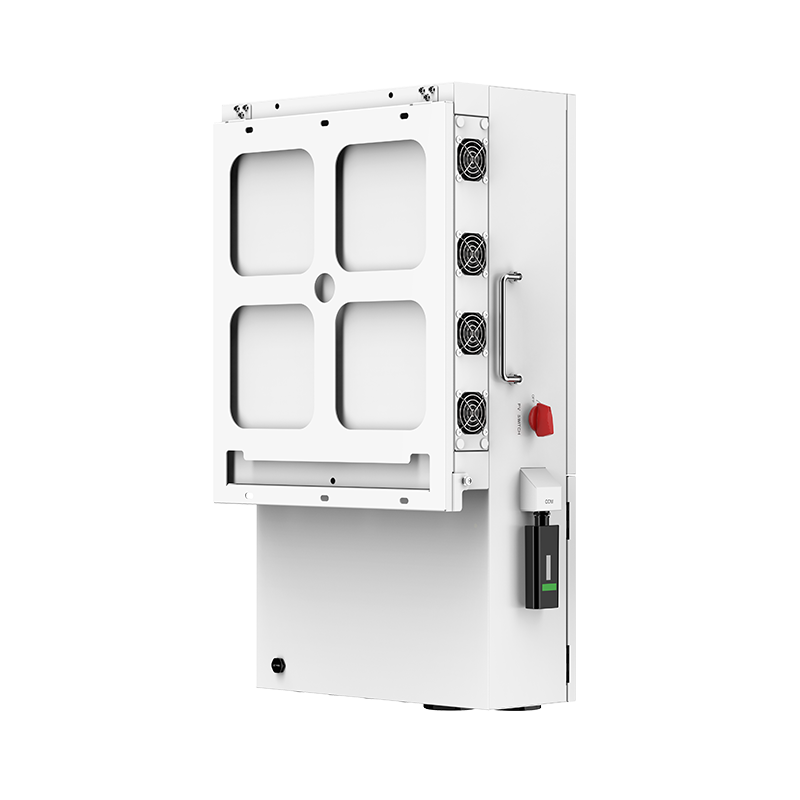

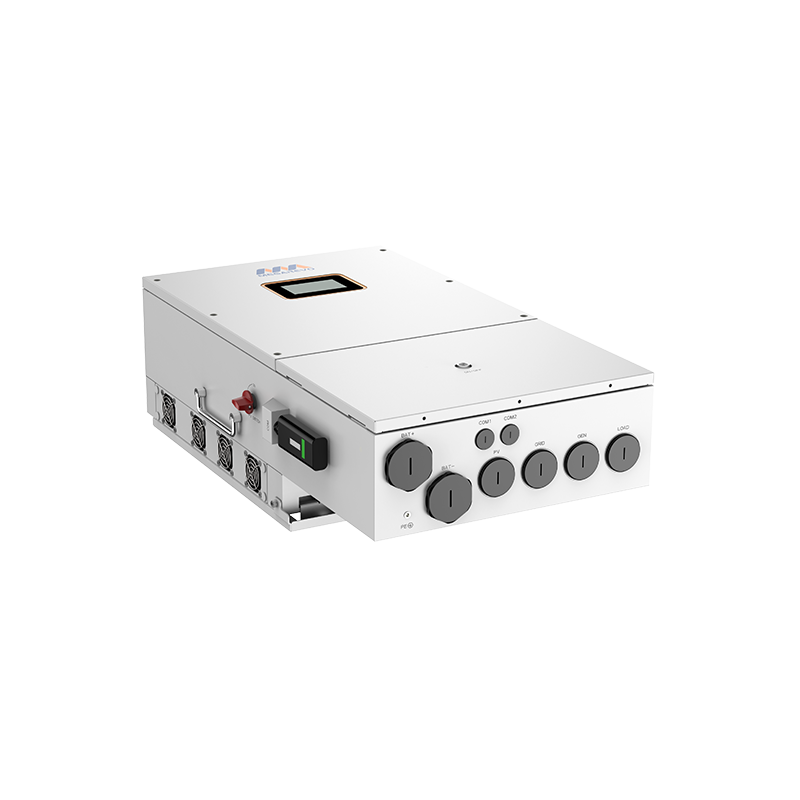

Megarevo 10kW Split-Phase Hybrid Inverter
Model: R10KLNA
The Megarevo R10KLNA 10kW Split-Phase Hybrid Inverter is a residential-grade energy storage inverter designed for both new solar installations and retrofit projects. It intelligently manages power from solar PV, batteries, the utility grid, and generators—delivering seamless backup power, flexible system design, and high efficiency in a single all-in-one platform.
Built for U.S. split-phase (120/240V) homes, the R10KLNA supports whole-home or critical-load backup with fast automatic switchover and robust pass-through capability. Its advanced MPPT architecture and battery flexibility make it a strong choice for homeowners looking to add resilience, self-consumption, and energy independence.
Key Benefits
-
10kW Continuous Output – Supports demanding residential loads
-
Split-Phase 120/240V – Designed for U.S. residential electrical systems
-
All-in-One Hybrid Design – PV, battery, grid, and generator support in one unit
-
Backup-Ready – 100A pass-through with <20 ms automatic switchover
-
Flexible MPPT Architecture – Four independent MPPT channels
-
Battery Agnostic – Compatible with 48V lithium-ion and lead-acid batteries
Advanced Capabilities
-
Unbalanced Load Support – Handles 100% phase imbalance for split-phase systems
-
Retrofit Friendly – AC-coupled mode allows storage to be added to existing grid-tied PV
-
Intelligent Battery Control – CAN-based BMS communication and adaptive charging
-
Comprehensive Protection – AFCI, GFDI, surge protection, anti-islanding, and insulation monitoring
-
Rugged Enclosure – IP65 / NEMA 3R rated for indoor or outdoor installation
Best Use Applications
-
Residential solar + storage systems
-
Whole-home or partial-home backup power
-
Load shifting and self-consumption optimization
-
Solar retrofit projects adding battery storage
-
Generator-integrated backup systems
Product Specifications
| Specification | Details |
|---|---|
| Manufacturer | Megarevo |
| Model Number | R10KLNA |
| Inverter Type | Split-Phase Hybrid Inverter |
| Rated Output Power | 10 kW |
| Max Apparent Power | 11 kVA |
| AC Voltage | 120/240V Split-Phase |
| Frequency | 60 Hz |
| Max AC Output Current | 45.8 A |
| PV Max Input Power | 15 kW |
| PV Voltage Range | 120–500 V DC |
| MPPTs / Strings | 4 MPPTs / 1 string per MPPT |
| Battery Voltage | 40–60 V (48V nominal) |
| Max Charge / Discharge Current | 190 A / 210 A (peak) |
| Max Battery Power | 11 kW |
| Pass-Through Current | 100 A |
| Transfer Time | < 20 ms |
| Operating Temperature | −25°C to +60°C |
| Cooling | Fan-assisted |
| Enclosure Rating | IP65 / NEMA 3R |
| Dimensions (W × H × D) | 17.7 × 32.3 × 9.5 in |
| Weight | 105.8 lb |
| Noise Level | < 47 dB |
| Communications | RS485, Wi-Fi, optional 4G |
| Display | Integrated touch panel |
| Certifications | UL 1741 SA, UL 1699B, IEEE 1547, CSA C22.2, FCC Part 15 |
Warranty
-
Standard Warranty: 10 years
(Warranty coverage is provided directly by the manufacturer and subject to official documentation.)
