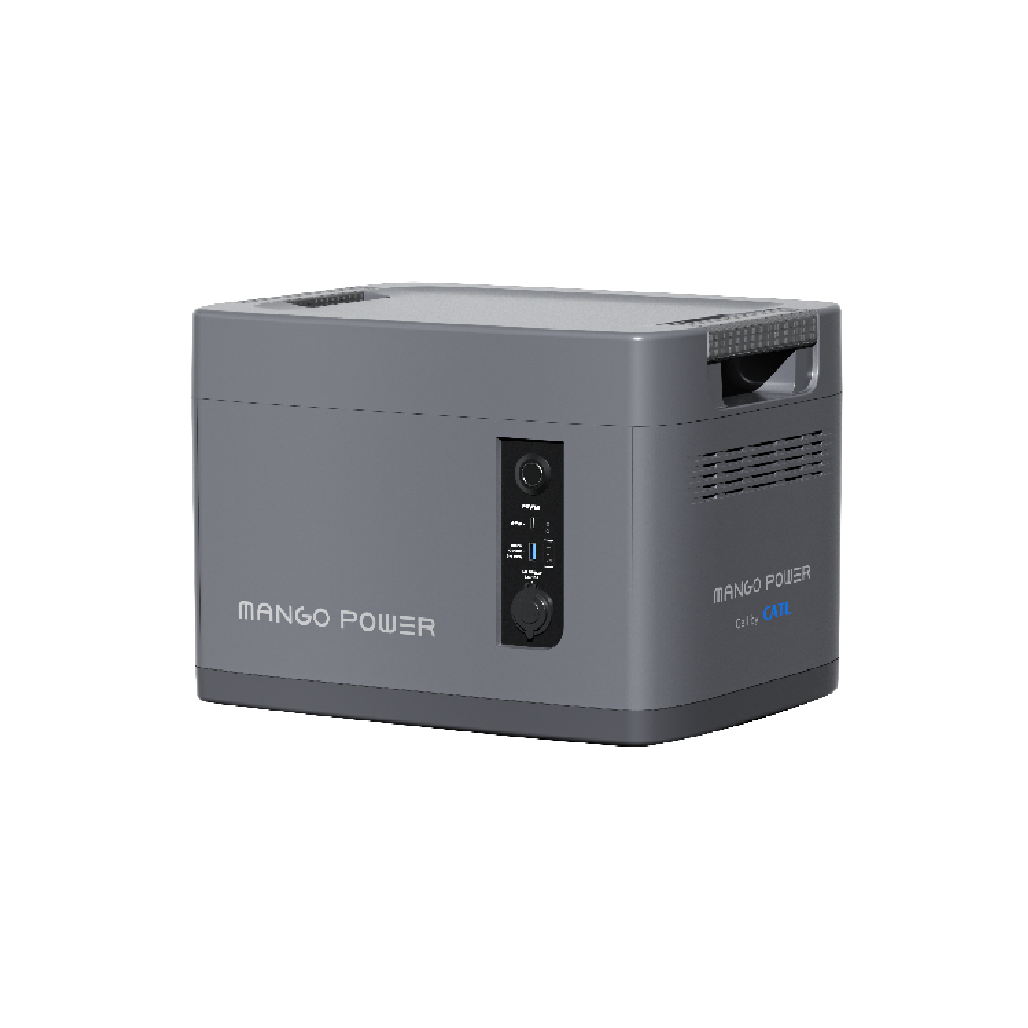

Mango Power MPE02US1N001 Expansion Battery

Mango Power MPE02US1N001 Expansion Battery

Regular price $2,200
Sale price $2,200 Regular price
SOLD OUT
Leave a Review

MPN No: MPE02US1N001

Mango Power MPE02US1N001 Expansion Battery

Mango Power MPE02US1N001 Expansion Battery

Regular price $2,200
Sale price $2,200 Regular price

View full details
.PDF
Datasheet
Description
Questions
Reviews
Default manufacturer logo
Manufacturer
Mango Power
Weight
100.1 lb
Dimension
17.8 x 13.6 x 19.4 inches

Mango Power MPE02US1N001 Expansion Battery

Introducing the Mango Power MPE02US1N001 Expansion Battery – an innovative solution to enhance the storage capacity of your solar energy system. This expansion battery is designed to work seamlessly with Mango Power products, providing extended backup power and increased energy independence.

  • Enhanced Storage Capacity: The MPE02US1N001 Expansion Battery significantly increases the storage capacity of your solar energy system, allowing you to store surplus energy for later use.
  • Compatibility: Designed to work perfectly with Mango Power products, this expansion battery ensures compatibility and optimal performance.
  • Easy Installation: Installing the expansion battery is straightforward, and it seamlessly integrates into your existing solar setup.
  • Reliable Backup Power: With the MPE02US1N001 Expansion Battery, you can rely on uninterrupted power during outages or when your solar panels are not generating electricity.

Technology and Overview

The Mango Power MPE02US1N001 Expansion Battery utilizes advanced technology to store and release energy efficiently. It is designed to work harmoniously with Mango Power systems, providing additional capacity for your energy storage needs.

Benefits and Applications Overview

The Mango Power MPE02US1N001 Expansion Battery offers numerous benefits, including enhanced storage capacity, compatibility, and reliable backup power. It is suitable for both residential and commercial applications, contributing to energy independence and sustainability.

Product Specifications

Product Name Mobile Energy Storage
Net Weight 100.1lbs (45.4kg)
Size 17.8 x 13.6 x 19.4 inches (452 x 345 x 494mm)
Working Temperature Charging: -10°C~45°C (14°F~113°F)
Discharging: -20°C~45°C (-4°F~113°F)
Warranty 5 Years
Certifications Meets US and International Safety and EMI Standards
Quick Charge Recharges to 80% in 1 hour
Recharges to 100% in 1.5 hours
Running Noise <40dB under no-load
<51dB under full-load
IP level IP21
Capacity Expansion Can expand the capacity by one E Battery to 7066Wh
Power Expansion Can expand the power by two to 6000W
240V Split Phase With mSocket Pro (sold separately), can output 240V split phase, 6000W

Battery

Battery Capacity 3533Wh/69Ah
Cell Chemistry World’s best CATL LFP
Life Span 1. Capacity Retention >70% after 2300 cycles (@25?, +0.5C/-0.5C)
2. 6000 cycles (@25?, +0.5C/-0.5C)
Battery Management Systems Over Voltage Protection, Overload Protection, Over Temperature Protection, Short Circuit Protection, Low Temperature Protection, Low Voltage Protection, Overcurrent Protection
Max Charging Rate Up to 1.1C

Input

Charging Method AC Wall Outlet, Solar Panel, EV Charger, Generator
AC Charging Max 3000W
Solar Charging Max 2000W (60V-150V), 20A
EV AC Charging Spot Adapter needed *Needs J1772 Type1 Socket To NEMA 5-15/5-20 EV Charger Adapter
Generator Support Yes

Inverter

Rated AC Output Power 3000W, 120V AC, 60Hz
Power of Over-load 3150W<load?3750W, 5mins;
3750W<load?4500, 60s
4500W<load?4800W, 10s
4800W<load, less than 40ms
Maximum Power Point Trackers 1x, Support Both Roof and Portable Solar Panels
Inverter Efficiency Up to 88%

Output

Output Ports 16
AC Output Ports 4 x 20A
USB-A 6 x QC 3.0 24W
USB-C 1 x PD 65W+1 x PD 100W
Car Power Output 12V/10A
DC5521 Output 2x12V/5A
AC RV Port 30A

Smart Control

Connection Bluetooth and Wi-Fi
App Remote Control Yes
OTA Upgrade Yes
Customized Mode Backup Power Mode / Economical Mode / Time-based Control Mode
Smart Measurement Yes
Smart Energy and Carbon Footprint Report Yes
Smart Notifications Yes

Screen

Size 4.3 Inches
Touch Screen Yes
Resolution Ratio 480 x 800
Screen Pigment 16.7M Colors

Safety

Smart Self-Check System Yes
