Mango Power mPanel Pro MPA02US1N003
Mango Power mPanel Pro MPA02US1N003
Delivery
Shipping disclaimer: US Solar Supplier works hard to offer the most competitive shipping rates possible. Shipping is auto calculated. If you have questions, let's work together directly! Please reach out to arrange case based logistics. Contact our team at sales@ussolarsupplier.com or by chat during business hours 9 am to 5 pm EST.
Payment
We offer multiple secure payment options for your convenience
Mango Power mPanel Pro MPA02US1N003
MPA02US1N003
Specifications
Mango Power mPanel Pro MPA02US1N003

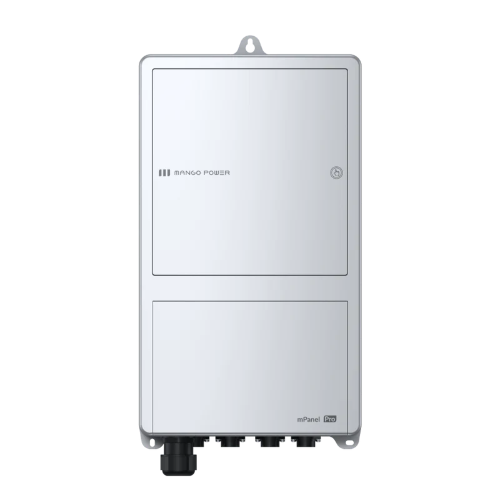

The Mango Power mPanel Pro is an automatic backup/transfer panel that connects Mango Power E or Union systems to household loads and the grid. It provides fast, manual rotary switching between grid and backup sources, delivers four protected 120V load circuits, and supports split-phase 240V when two Mango Power E units are paired—streamlining resilient home backup.
Key Benefits
Simple Backup Switching: Front rotary switches select Grid or Backup modes with integrated breakers for safe operation.
Multi-Device Support: Two 30A outputs and two 30A backup inputs simplify wiring for Mango Power E or Union systems.
Four Managed Load Circuits: Provides four 15A 120V circuits for prioritized household loads.
Split-Phase Ready: Pair two Mango Power E units for 240V L1-L2-N output to run larger appliances.
Installer-Friendly: Wall-mount enclosure with clear terminal layout and included AC cables in the kit.
Special Technology
Integrated Distribution & Control: Combines grid input, backup inputs, device outputs, and load outputs in one compact panel.
System Compatibility: Designed specifically for Mango Power E and Union products for seamless operation.
Warranty
Manufacturer’s Standard Warranty (Mango Power).
Best Uses
Residential Backup: Automate switchover between grid and Mango Power backup for essential loads.
Retrofits & New Installs: Clean interconnection for existing homes or new construction with Mango Power systems.
Specifications Table
| Specification | Data |
|---|---|
| Model | MPA02US1N003 (mPanel Pro) |
| Type | Automatic backup/transfer & load panel for Mango Power systems |
| Mains Input Voltage | 120 V / 240 V |
| Mains Input Current | 50 A |
| Output Ports (to devices) | 2 × 30 A |
| Backup Input Ports | 2 × 30 A |
| Load Output Ports | 4 × 15 A (120 V) |
| Operating Temperature | -10 °C to +45 °C |
| Dimensions (H × W × D) | 21.81 × 11.02 × 4.25 in |
| Weight | 10.36 lb |
| Mounting | Wall mount; recommended clearance ≥ 400 mm; install height ≥ 1000 mm |
| Supported Systems | Mango Power E, Mango Power Union (supports 240 V split-phase with 2 × E units) |
| Included (typical) | Expansion plugs (x3), self-tapping screws (x3), AC input/output cables (kit-dependent) |
| Warranty | Manufacturer Standard Warranty |
About Mango Power:
Mango Power is a clean energy company dedicated to developing innovative home and portable power solutions. With advanced battery technology and smart energy management, Mango Power products deliver reliable backup power, support renewable integration, and promote a more sustainable lifestyle.
