LG NeON 2 400W Solar Panels | Pallet of 25

10kW N-Type Monocrystalline Solar Panel Pallet with LG CELLO Technology

10,000W Total DC Capacity | 25 Solar Panels | 400W Per Panel
Build a high-performance solar array with a full pallet of 25 LG NeON 2 400W monocrystalline solar panels. Featuring LG's advanced CELLO Technology, N-type solar cells, 19.3% module efficiency, and a durable anodized aluminum frame, the LG400N2W-V5 delivers dependable solar generation for compatible residential and commercial solar installations.

This Pallet Includes

• (25) LG NeON 2 400W Monocrystalline Solar Panels – LG400N2W-V5
• 10,000W (10kW) total DC nameplate capacity

• ---

  LG NeON 2 400W Solar Panels: 10kW Pallet for Residential and Commercial Solar

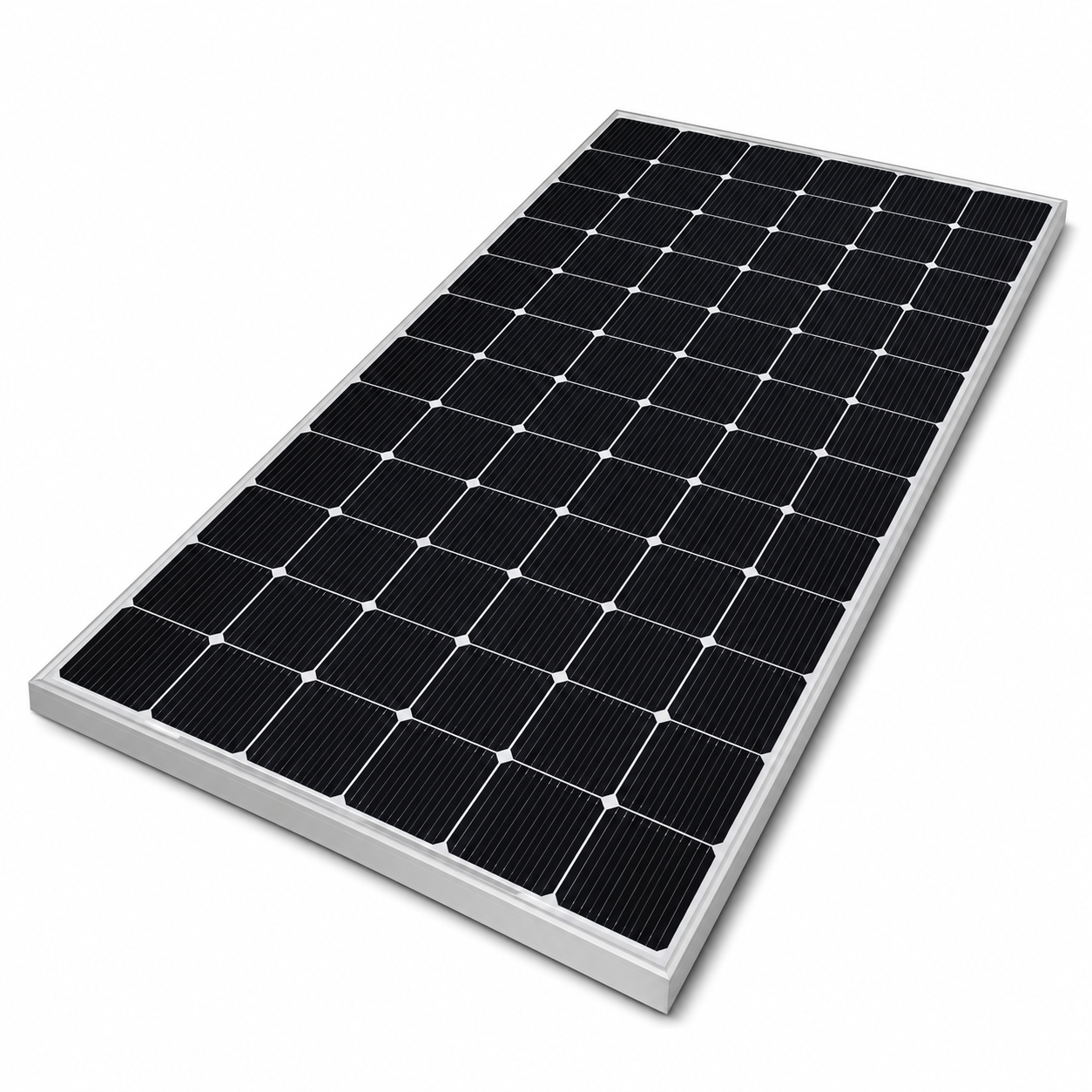

  The LG NeON 2 LG400N2W-V5 is a premium 400W monocrystalline solar panel developed for efficient electricity generation, long-term performance, and flexible solar system design.

  Each module uses 72 N-type monocrystalline solar cells and LG's proprietary CELLO Technology to improve current collection and reduce electrical losses.

  With a rated output of 400W per panel, this 25-panel pallet provides 10kW of total DC solar capacity, making it suitable for residential rooftop installations, ground-mounted solar arrays, and compatible commercial projects.

  The LG NeON 2 features a silver anodized aluminum frame, white backsheet, and anti-reflective tempered glass. Its 19.3% module efficiency helps deliver substantial solar output from the available installation area.

  Designed with durability in mind, the panel features an IP68-rated junction box, corrosion-resistant construction, and published mechanical test load ratings for wind and snow exposure.

  For installers, contractors, and homeowners purchasing solar equipment in bulk, this full pallet offers 25 matching modules for streamlined array design and equipment procurement.

  ---

  LG CELLO Technology for Enhanced Solar Performance

  LG's CELLO Technology is a key feature of the NeON 2 series. The design uses multiple thin electrical conductors to improve current collection and reduce electrical resistance within the solar cells.

  The LG400N2W-V5 uses 12 busbars per cell to support efficient energy collection and reliable module performance.

  Key Technology Benefits

  • Advanced N-type solar cells: High-performance monocrystalline cell technology.
  • LG CELLO Technology: Multi-busbar cell design for efficient current collection.
  • 12-busbar architecture: Helps reduce electrical resistance and improve current distribution.
  • 19.3% module efficiency: Strong power output relative to module surface area.
  • 400W rated output: High-output solar generation for compatible system designs.
  • 0% to +3% power tolerance: Published positive-only power tolerance.
  • Improved temperature performance: -0.36%/°C maximum power temperature coefficient.

  These technologies help the NeON 2 maintain useful solar energy production across changing environmental and operating conditions.

  ---

  25 LG Solar Panels with 10kW Total Capacity

  Each pallet contains 25 matching LG400N2W-V5 solar modules, each rated at 400W under standard test conditions.

  • 25 panels per pallet
  • 400W rated output per panel
  • 10,000W total DC nameplate capacity
  • 72 N-type monocrystalline cells per module
  • 19.3% module efficiency
  • MC4 connectors with factory-installed module leads

  A 10kW DC solar array can provide a meaningful portion of a property's electricity needs when paired with appropriately sized inverter equipment and installed in suitable conditions.

  Actual energy production depends on geographic location, sunlight, shading, roof orientation, temperature, system losses, and inverter configuration.

  The number of panels needed for a project should be determined through a site-specific solar design that considers electrical consumption, available installation space, structural requirements, and local permitting rules.

  ---

  Durable Construction for Long-Term Outdoor Performance

  The LG NeON 2 400W module is built with materials selected for outdoor solar applications and long-term environmental exposure.

  Construction and Durability Features

  • Tempered glass with anti-reflective coating: Supports sunlight transmission and front-surface durability.
  • Anodized aluminum frame: Provides structural support and corrosion resistance.
  • White backsheet: Standard monofacial module construction.
  • IP68 junction box: Provides a high degree of environmental protection.
  • 5,400 Pa front mechanical test load: Manufacturer-published front-side mechanical test rating.
  • 3,000 Pa rear mechanical test load: Manufacturer-published rear-side mechanical test rating.
  • Salt mist corrosion testing: IEC 61701 Severity 6.
  • Ammonia corrosion testing: IEC 62716.
  • Operating temperature: -40°C to +90°C.

  Mechanical test load ratings are not the same as allowable design loads. Follow LG's installation instructions and applicable structural requirements when determining permitted wind and snow loads.

  ---

  Original LG NeON 2 Warranty Specifications

  The original LG400N2W-V5 manufacturer datasheet advertises a 25-year product warranty and a 25-year linear power output warranty.

  Original Published Warranty Terms

  • 25-year product warranty: As originally advertised by LG.
  • 25-year linear power output warranty: As originally advertised by LG.
  • 98% first-year performance: Original warranted output threshold.
  • 0.35% annual degradation: Original published degradation allowance after the first year.
  • 89.6% output after 25 years: Original minimum warranted performance level.

  Warranty Verification Required: LG exited the solar panel manufacturing business in 2022. The warranty information above describes the original manufacturer's published terms and does not independently establish current coverage for this pallet. Confirm warranty eligibility, original sale status, applicable warranty documents, and available support before purchasing.

  ---

  Perfect For

  • Residential rooftop solar installations
  • Commercial solar projects requiring matching 400W modules
  • Ground-mounted solar arrays
  • Solar contractors purchasing full-pallet quantities
  • Installers building approximately 10kW DC solar arrays
  • Projects requiring N-type monocrystalline solar panels
  • Solar equipment inventory and project procurement
  • Compatible grid-tied and hybrid solar system designs

  ---

  Product Specifications

  Specification	Details
  Manufacturer	LG Electronics
  Product Series	LG NeON 2
  Model Number	LG400N2W-V5
  Product Type	Monocrystalline Solar Panel
  Quantity	25 Panels per Pallet
  Rated Power per Panel	400W
  Total Pallet Capacity	10,000W (10kW DC)
  Solar Cell Technology	Monocrystalline N-Type
  Cell Configuration	72 Cells (6 × 12)
  Number of Busbars	12
  Module Efficiency	19.3%
  Maximum Power Voltage (Vmp)	40.6V
  Maximum Power Current (Imp)	9.86A
  Open-Circuit Voltage (Voc)	49.3V
  Short-Circuit Current (Isc)	10.47A
  Power Tolerance	0% to +3%
  Nominal Module Operating Temperature (NMOT)	42 ± 3°C
  Maximum Power at NMOT	300W
  Vmp at NMOT	38.0V
  Imp at NMOT	7.88A
  Voc at NMOT	46.5V
  Isc at NMOT	8.40A
  Pmax Temperature Coefficient	-0.36%/°C
  Voc Temperature Coefficient	-0.26%/°C
  Isc Temperature Coefficient	+0.02%/°C
  Module Dimensions	2024 × 1024 × 40mm
  Module Dimensions (Imperial)	Approximately 79.7 × 40.3 × 1.57 inches
  Module Weight	20.3kg (Approximately 44.8 lbs)
  Total Panel Weight	507.5kg (Approximately 1,119 lbs)
  Glass	Tempered Glass with Anti-Reflective Coating
  Backsheet	White
  Frame	Anodized Aluminum
  Junction Box	IP68
  Factory Cables	2 × 1200mm per Module
  Connector Type	MC4
  Operating Temperature	-40°C to +90°C
  Maximum System Voltage	1500V UL / 1000V IEC
  Maximum Series Fuse Rating	20A
  Front Mechanical Test Load	5400 Pa (113 psf)
  Rear Mechanical Test Load	3000 Pa (63 psf)
  Salt Mist Corrosion Test	IEC 61701:2012 Severity 6
  Ammonia Corrosion Test	IEC 62716:2013
  Module Fire Performance	Type 1 (UL 1703)
  Fire Rating	Class C (UL 790)
  Original Product Warranty	25 Years, Subject to Current Eligibility
  Original Output Warranty	25-Year Linear Warranty, Subject to Current Eligibility
  Original 25-Year Output Guarantee	89.6% of Initial Rated Power
  Modules per Pallet	25
  Factory Pallet Dimensions	2080 × 1120 × 1226mm
  Factory Pallet Gross Weight	551kg (Approximately 1,215 lbs)
  Modules per 40ft HQ Container	550
  Manufacturer-Listed Certifications	IEC 61215, IEC 61730, UL 1703
  Racking Included	No
  Inverter Included	No
  Battery Included	No

  ---

  Pallet Shipping and Handling Information

  This product is sold as a full pallet of 25 LG NeON 2 400W solar panels.

  Due to the size, weight, and fragile glass construction of the modules, appropriate freight handling equipment and receiving arrangements are important.

  • Quantity: 25 solar panels per pallet.
  • Total capacity: 10kW DC.
  • Factory pallet gross weight: Approximately 1,215 lbs.
  • Factory pallet dimensions: Approximately 81.9 × 44.1 × 48.3 inches.
  • Freight delivery: Appropriate freight shipping and unloading arrangements are required.
  • Receiving equipment: A forklift or other suitably rated unloading equipment may be necessary.
  • Inspection: Inspect packaging and visible modules for freight damage at delivery.

  Shipping Note: The dimensions and weight above are the manufacturer's original factory pallet specifications. Actual shipment weight and dimensions may differ if inventory has been repackaged. Confirm receiving requirements and unloading arrangements before delivery.

  ---

  Important Installation Notes

  The LG NeON 2 400W solar panel must be installed as part of a properly designed solar energy system in accordance with applicable electrical codes, building codes, utility requirements, and manufacturer instructions.

  • Solar panels only. This pallet does not include inverters, batteries, racking, or other balance-of-system equipment.
  • Inverter compatibility must be verified. Confirm DC voltage, current, MPPT range, maximum input voltage, and string configuration before connecting modules.
  • Cold-weather voltage must be considered. Solar module open-circuit voltage increases as temperature decreases.
  • String sizing matters. The maximum number of panels per string depends on the inverter and installation conditions.
  • Use compatible connectors. The manufacturer specifies MC4 connectors. Follow approved connector-mating and installation requirements.
  • Mounting hardware is sold separately. Select racking compatible with the module dimensions, frame, and approved mounting locations.
  • Structural requirements apply. Verify wind, snow, roof loading, and attachment requirements before installation.
  • Permitting and interconnection requirements apply. Utility approval and professional installation may be required.
  • Warranty status should be verified. LG's discontinued solar manufacturing operations may affect warranty administration and support.

  Always follow current manufacturer documentation and consult a qualified solar installer or electrical professional when required.

  ---

  Frequently Asked Questions

  How many LG NeON 2 solar panels are included in this pallet?

  The pallet contains 25 LG NeON 2 LG400N2W-V5 solar panels, each rated at 400W under standard test conditions.

  What is the total wattage of this pallet?

  The pallet provides 10,000W (10kW) of total DC nameplate capacity. This is calculated from 25 panels rated at 400W each.

  Are these LG solar panels monocrystalline or polycrystalline?

  These are N-type monocrystalline solar panels. Each LG400N2W-V5 module contains 72 solar cells and features LG's CELLO Technology.

  What is LG CELLO Technology?

  LG CELLO Technology uses a multi-busbar cell architecture designed to improve current collection and reduce electrical resistance. The LG400N2W-V5 features 12 busbars per cell.

  How efficient are the LG NeON 2 400W panels?

  The LG400N2W-V5 has a published 19.3% module efficiency under standard test conditions.

  What are the dimensions of each solar panel?

  Each panel measures 2024 × 1024 × 40mm, approximately 79.7 inches long, 40.3 inches wide, and 1.57 inches thick.

  How much does each LG 400W solar panel weigh?

  Each panel weighs 20.3kg, approximately 44.8 lbs, according to the LG manufacturer specification sheet.

  How much does the full pallet weigh?

  The manufacturer's factory packaging specification lists a gross pallet weight of 551kg, approximately 1,215 lbs. This includes the modules and factory packaging. Actual shipping weight may differ if the pallet has been repackaged.

  What are the dimensions of the full pallet?

  The original factory packaging dimensions are 2080 × 1120 × 1226mm, approximately 81.9 × 44.1 × 48.3 inches.

  Are these LG NeON 2 panels bifacial?

  No. The LG400N2W-V5 is a monofacial solar module with a white backsheet. It should not be confused with LG's separate NeON 2 BiFacial product series.

  Can these panels be used for residential rooftop solar?

  Yes. The LG NeON 2 400W modules are designed for compatible solar installations, including residential rooftops. The installation must use appropriate racking, inverter equipment, electrical protection, and approved system design.

  Can these solar panels be used in commercial installations?

  Yes. The panels can be considered for compatible commercial solar projects, subject to system design, electrical compatibility, structural requirements, and applicable permitting rules.

  Do the LG NeON 2 panels include an inverter?

  No. This listing includes 25 solar panels only. An appropriately rated string inverter, microinverters, or other compatible solar power conversion equipment must be purchased separately.

  Are batteries included with this pallet?

  No. This is a pallet of solar panels without battery storage. Batteries and compatible hybrid or battery inverter equipment are sold separately.

  Can these panels be used with a hybrid solar inverter?

  Potentially. The panels may be used with a compatible hybrid inverter when the array is properly designed around the inverter's DC voltage, current, MPPT, and string requirements. Confirm compatibility using the exact inverter model and proposed string configuration.

  Can these panels be used with microinverters?

  Yes, if the selected microinverter supports the panel's electrical specifications. The LG400N2W-V5 has a 40.6V operating voltage, 49.3V open-circuit voltage, 9.86A operating current, and 10.47A short-circuit current under standard test conditions. Confirm the microinverter's voltage, current, temperature, and connector requirements before installation.

  What type of connectors do these panels use?

  The LG manufacturer specification sheet lists MC4 connectors with two 1200mm factory cables per panel. Follow manufacturer-approved connector compatibility and installation requirements.

  What is the maximum system voltage?

  The manufacturer lists a maximum system voltage of 1500V under UL requirements and 1000V under IEC requirements. Actual allowable system voltage depends on the equipment, system design, and applicable codes.

  What is the maximum series fuse rating?

  The LG400N2W-V5 has a manufacturer-published maximum series fuse rating of 20A. Overcurrent protection must be designed according to the complete system configuration and applicable electrical codes.

  How do these solar panels perform in hot weather?

  The LG NeON 2 400W panel has a maximum power temperature coefficient of -0.36% per °C. As cell temperature rises above the standard test temperature of 25°C, panel power output generally decreases. Actual production depends on operating conditions.

  Can these panels handle snow and wind?

  LG publishes mechanical test load ratings of 5400 Pa on the front and 3000 Pa on the rear. These are test load values, not directly interchangeable with allowable design loads. Follow manufacturer mounting instructions and applicable structural requirements.

  Are the panels suitable for coastal installations?

  The manufacturer lists salt mist corrosion testing to IEC 61701:2012 Severity 6. Suitability for a specific coastal project still depends on mounting materials, installation conditions, and applicable engineering requirements.

  What warranty originally came with these LG solar panels?

  LG's original datasheet advertised a 25-year product warranty and a 25-year linear power output warranty, with 89.6% minimum warranted performance after 25 years. Current warranty eligibility and available support for this inventory must be verified.

  Does LG still manufacture solar panels?

  No. LG discontinued its solar panel manufacturing business in 2022. These modules are from LG's previously manufactured NeON 2 product line. Buyers should confirm inventory condition, warranty eligibility, and available support before purchase.

  Are these solar panels UL certified?

  The original LG400N2W-V5 manufacturer datasheet lists UL 1703 along with IEC 61215 and IEC 61730 certifications. Confirm the exact model's certification record and acceptance under current permitting requirements before installation.

  Can I install all 25 panels in one string?

  Do not assume all 25 panels can be connected in one string. The panel's open-circuit voltage is 49.3V under standard test conditions, and voltage increases in colder weather. The allowable number of modules per string must be calculated using the selected inverter's maximum DC voltage and MPPT requirements, site temperature conditions, and applicable electrical codes.

  How much electricity will a 10kW solar array generate?

  Actual electricity generation depends on geographic location, sunlight, shading, roof orientation, inverter efficiency, temperature, and other system losses. The 10kW figure represents the array's total DC nameplate capacity, not guaranteed continuous AC output or daily energy production.

  Do I need a forklift to receive this pallet?

  The manufacturer's original gross pallet weight is approximately 1,215 lbs. Appropriate unloading equipment and receiving arrangements may be required. Confirm freight delivery requirements and available unloading options before shipment.

  Is mounting hardware included with the pallet?

  No. Solar panel racking, rails, clamps, roof attachments, ground-mount structures, and other mounting materials are not included. Select equipment compatible with the LG400N2W-V5 panel dimensions and installation requirements.

  Are these panels suitable for an off-grid solar system?

  Potentially. The modules can be considered for a properly designed off-grid solar system using compatible charge controllers, inverters, batteries, and other required equipment. This pallet includes solar panels only and does not provide off-grid functionality by itself.

  Specifications are based on the original LG400N2W-V5 manufacturer datasheet, LG400N2W-V5_US_Ver01, © 2019 LG Electronics. Original published warranties and certifications do not independently establish current inventory eligibility, certification acceptance, or available manufacturer support. Confirm actual stock condition, packaging, warranty status, and applicable installation requirements before purchase.
