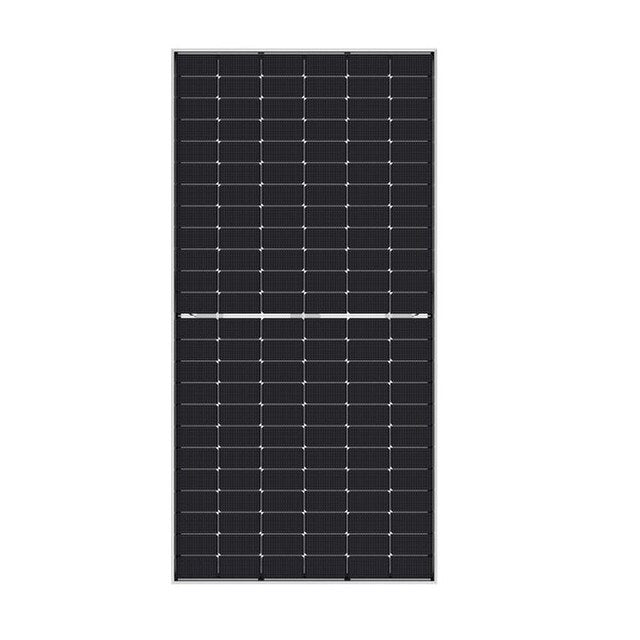

Jinko Solar 585W (Pallet of 36) Eagle 72 G6B N-Type Bifacial JKM585N-72HL4-BDV
Built with 144 half-cut cells and advanced SMBB and HOT 2.0 technologies, this module provides superior efficiency, low degradation, and enhanced durability.
Key Technology
-
N-Type TOPCon Technology
Lower LID/LeTID degradation and improved low-light performance for higher lifetime energy yield. -
HOT 2.0 Technology
Enhanced reliability and efficiency through optimized passivation and contact structure. -
SMBB (Super Multi-Busbar) Design
Improves light trapping and current collection, reducing resistive losses. -
Bifacial Dual-Glass Construction
80% ±5% bifaciality enables increased rear-side generation and reduced LCOE. -
Mechanical Load Enhanced
Certified for 5400 Pa front and 2400 Pa rear static loads. -
Anti-PID Guarantee
Minimizes performance degradation caused by potential induced degradation.
Best Uses
-
Commercial Rooftop Systems
High 585W output improves roof power density and reduces BOS costs. -
Utility-Scale Ground-Mount
Optimized for tracker systems and bifacial energy gain applications. -
High-Albedo Installations
Rear-side gain enhances performance over reflective surfaces.
Warranty
- Product Warranty: 12 Years
- Performance Warranty: 30-Year Linear Power Warranty
- First-Year Degradation: 1%
- Annual Degradation: 0.4%
- Guaranteed Output at Year 30: 87.4%
Product Specifications
| Specification | Details |
|---|---|
| Manufacturer | Jinko Solar |
| Model | JKM585N-72HL4-BDV |
| Cell Type | N-Type Mono-crystalline |
| Cell Configuration | 144 (72 × 2 half-cut) |
| Maximum Power (Pmax) | 585 W |
| Module Efficiency (STC) | 22.65% |
| Maximum Power Voltage (Vmp) | 44.02 V |
| Maximum Power Current (Imp) | 13.29 A |
| Open Circuit Voltage (Voc) | 52.70 V |
| Short Circuit Current (Isc) | 14.01 A |
| Power Tolerance | 0 ~ +3% |
| Maximum System Voltage | 1500 VDC (IEC) |
| Maximum Series Fuse Rating | 30 A |
| Operating Temperature | -40°C to +85°C |
| Temperature Coefficient (Pmax) | -0.29% / °C |
| Temperature Coefficient (Voc) | -0.25% / °C |
| Temperature Coefficient (Isc) | +0.045% / °C |
| Nominal Operating Cell Temp (NOCT) | 45 ±2°C |
| Bifaciality Factor | 80% ±5% |
| Dimensions | 89.69 × 44.65 × 1.18 in |
| Weight | 68.34 lb |
| Front Glass | 2.0 mm Anti-Reflection Coating |
| Back Glass | 2.0 mm Heat Strengthened Glass |
| Frame | Anodized Aluminum Alloy |
| Junction Box | IP68 Rated |
| Protection Class | Class II |
| Fire Rating | Class C |
| Packaging | 36 pcs/pallet; 720 pcs/40’HQ |
About Jinko Solar:
Jinko Solar is a globally recognized Tier 1 PV manufacturer known for its Tiger Neo N-type modules. With advanced TOPCon technology, rigorous quality control, and global bankability, Jinko modules deliver reliable high-efficiency performance for residential, commercial, and utility-scale solar projects worldwide.
