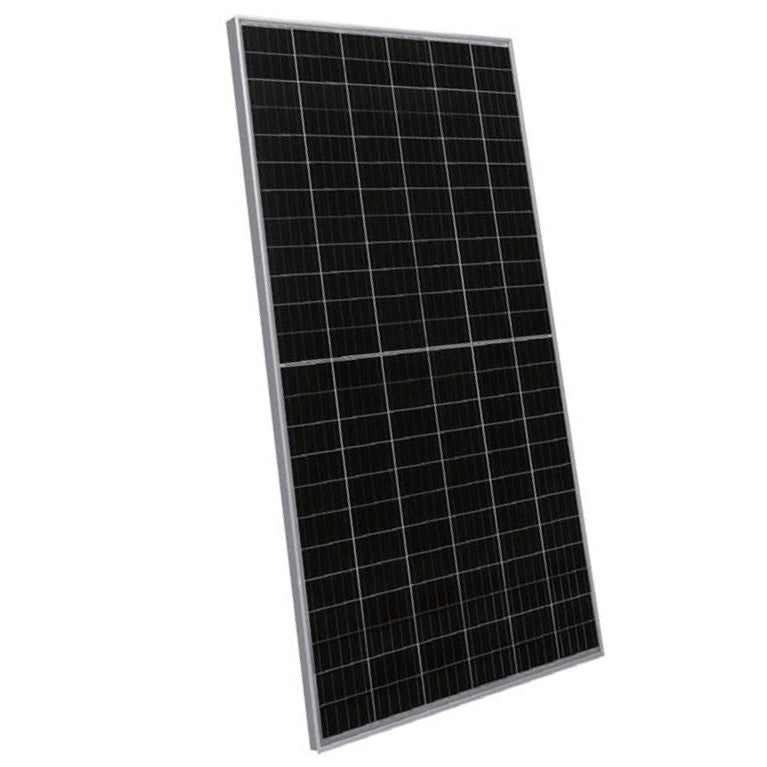

Jinko Solar 390W Mono PERC Half-Cell Module JKM390M-72HL-V Solar Panel
Efficient and Reliable Solar Energy
The Jinko 390W Solar Panel (Model JKM390M-72HL-V) is designed to deliver reliable, high-performance energy for residential and commercial solar applications. With its advanced technology and robust build, this panel is an ideal choice for efficient energy generation and long-term use.
Key Features
High Power Output: Produces 390W of power for optimal energy efficiency.
Advanced Mono PERC Technology: 144 half-cut Mono PERC cells enhance performance and reduce power loss.
Robust Design: Features a 40mm black aluminum frame and a black back sheet for durability and modern aesthetics.
Seamless Connectivity: Equipped with MC4-compatible connectors and a 1400mm (~55”) PV wire for easy installation.
Safety and Reliability: Includes a 20A fuse for added system protection.
Technology and Overview
The Jinko 390W Solar Panel utilizes advanced Mono PERC technology and 144 half-cut cells to maximize energy output while maintaining efficiency. Its durable 40mm black frame and black back sheet ensure a long lifespan, even in harsh conditions.
Installation and Compatibility
Designed with installation ease in mind, this panel features MC4-compatible connectors and a 1400mm (~55”) PV wire, making it versatile and compatible with a wide range of residential and commercial systems.
Benefits and Applications
Cost Savings: Reduce energy costs with high-efficiency solar power.
Environmental Impact: Transition to clean energy and lower your carbon footprint.
Peace of Mind: Comes with a 25-year product and performance warranty for reliability and long-term support.
Product Specifications
| Specification | Details |
|---|---|
| Module Type | JKM390M-72HL-V |
| Maximum Power (Pmax) | 390W |
| Maximum Power Voltage (Vmp) | 39.64V |
| Maximum Power Current (Imp) | 9.84A |
| Open-circuit Voltage (Voc) | 48.6V |
| Short-circuit Current (Isc) | 10.46A |
| Module Efficiency (STC) | 19.38% |
| Operating Temperature | -40°C to +85°C |
| Nominal Operating Cell Temp (NOCT) | 45 ± 2°C |
| Maximum System Voltage | 1500VDC |
| Maximum Series Fuse Rating | 20A |
| Power Tolerance | 0~+3% |
| Temperature Coefficient of Pmax | -0.35%/°C |
| Temperature Coefficient of Voc | -0.29%/°C |
| Temperature Coefficient of Isc | +0.048%/°C |
| Dimensions | 2008 × 1002 × 40 mm (79.06 × 39.45 × 1.57 in) |
| Weight | 22.5 kg (49.6 lbs) |
| Cells | Mono PERC, 144 (6 × 24) |
| Front Glass | 3.2 mm, Anti-Reflection Coating, Tempered Glass |
| Frame | Anodized Aluminum Alloy |
| Output Cables | 12 AWG, 1400 mm (55.12 in) |
| Fire Type | Type 1 |
| Pressure Rating | 5400 Pa (Snow), 2400 Pa (Wind) |
