Jinko 465W (Pallet of 37) Tiger Neo N-Type Solar Panel JKM465N-48HL4M-DV
MPN No: JKM465N-48HL4M-DV
Expected ship date Jun 10 - 17
In Stock
$5,376.56
Pallet
Jinko 465W (Pallet of 37) Tiger Neo N-Type Solar Panel JKM465N-48HL4M-DV
Jinko 465W (Pallet of 37) Tiger Neo N-Type Solar Panel JKM465N-48HL4M-DV
Regular price
$5,376.56
$0.31/watt
Sale price
$145.31/per panel
LESS THAN 50
Pallet
Jinko 465W (Pallet of 37) Tiger Neo N-Type Solar Panel JKM465N-48HL4M-DV
Jinko 465W (Pallet of 37) Tiger Neo N-Type Solar Panel JKM465N-48HL4M-DV
Available
MPN No: JKM465N-48HL4M-DV
Regular price
$5,376.56
$0.31/watt
Sale price
$145.31/per panel
Expected ship date Jun 10 - 17
Ships from U.S. Warehouse
Trusted by Thousands
Expert U.S. Support
We offer multiple secure payment options for your convenience
We offer multiple secure payment options for your convenience
Data Sheet
Regular price
$5,376.56
Jinko 465W (Pallet of 37) Tiger Neo N-Type Solar Panel JKM465N-48HL4M-DV
MPN No:
JKM465N-48HL4M-DV
Expected ship date Jun 10 - 17
≥ 37
Jinko 465W (Pallet of 37) Tiger Neo N-Type Solar Panel JKM465N-48HL4M-DV

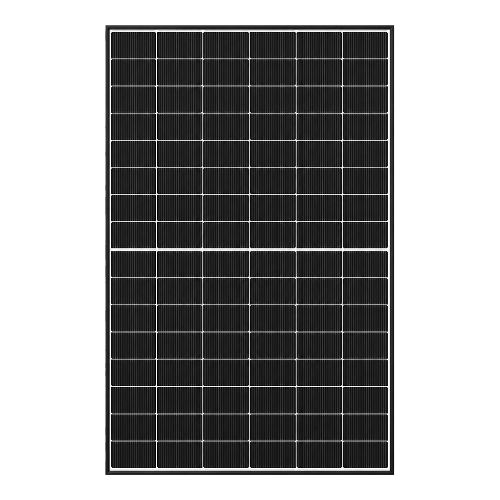

The Jinko Solar JKM465N-48HL4M-DV is a high-efficiency 465W N-type solar module built with advanced TOPCon cell technology and dual-glass construction. Designed for durability and strong energy performance, this panel delivers excellent efficiency, low degradation, and enhanced energy yield through rear-side generation. Its compact format and robust design make it ideal for residential and distributed solar installations.
Key Technology
-
N-Type TOPCon Cell Technology
Provides higher efficiency, lower degradation, and improved long-term performance compared to traditional P-type modules. -
SMBB Technology
Improves light capture and current collection for higher power output and reliability. -
Enhanced Mechanical Strength
Certified to withstand up to 6000 Pa front load and 4000 Pa rear load for reliable performance in challenging conditions.
Best Uses
-
Residential Rooftop Systems
Ideal for homeowners seeking high-efficiency solar solutions. -
Distributed Generation Installations
Suitable for on-site solar systems requiring reliable performance and compact design. -
High-Efficiency Solar Projects
Designed for installations prioritizing long-term output and durability.
Warranty
- Product Warranty: 15 Years
- Performance Warranty: 30-Year Linear Power Warranty
- First-Year Degradation: 1%
- Annual Degradation: 0.40%
- 30-Year Output: 87.4% retained power output
Product Specifications
| Specification | Details |
|---|---|
| Manufacturer | Jinko Solar |
| Model | JKM465N-48HL4M-DV |
| Rated Power (Pmax) | 465 W |
| Cell Type | N-Type Mono-crystalline (TOPCon) |
| Number of Cells | 96 (48 × 2) |
| Module Efficiency | ≈ 23.27% |
| Maximum Power Voltage (Vmp) | 30.94 V |
| Maximum Power Current (Imp) | 15.03 A |
| Open Circuit Voltage (Voc) | 36.55 V |
| Short Circuit Current (Isc) | 15.96 A |
| Maximum System Voltage | 1500 VDC |
| Maximum Series Fuse | 30 A |
| Operating Temperature | -40°C to +70°C |
| Mechanical Load | Front: 6000 Pa / Rear: 4000 Pa |
| Front Glass | 2.0 mm Anti-Reflection Coating |
| Back Glass | 2.0 mm Heat Strengthened Glass |
| Dimensions | 69.37 × 44.65 × 1.18 inches |
| Weight | 52.9 lb |
| Frame | Black Frame |
| Junction Box | IP68 Rated |
| Connector | JK03M / MC4 Compatible |
| Warranty | 15-year product / 30-year power warranty |
About Jinko Solar:
Jinko Solar is one of the world’s leading solar module manufacturers, known for innovation, reliability, and high-efficiency photovoltaic technologies. Their N-type modules deliver strong performance, durability, and long-term energy production across a wide range of applications.
