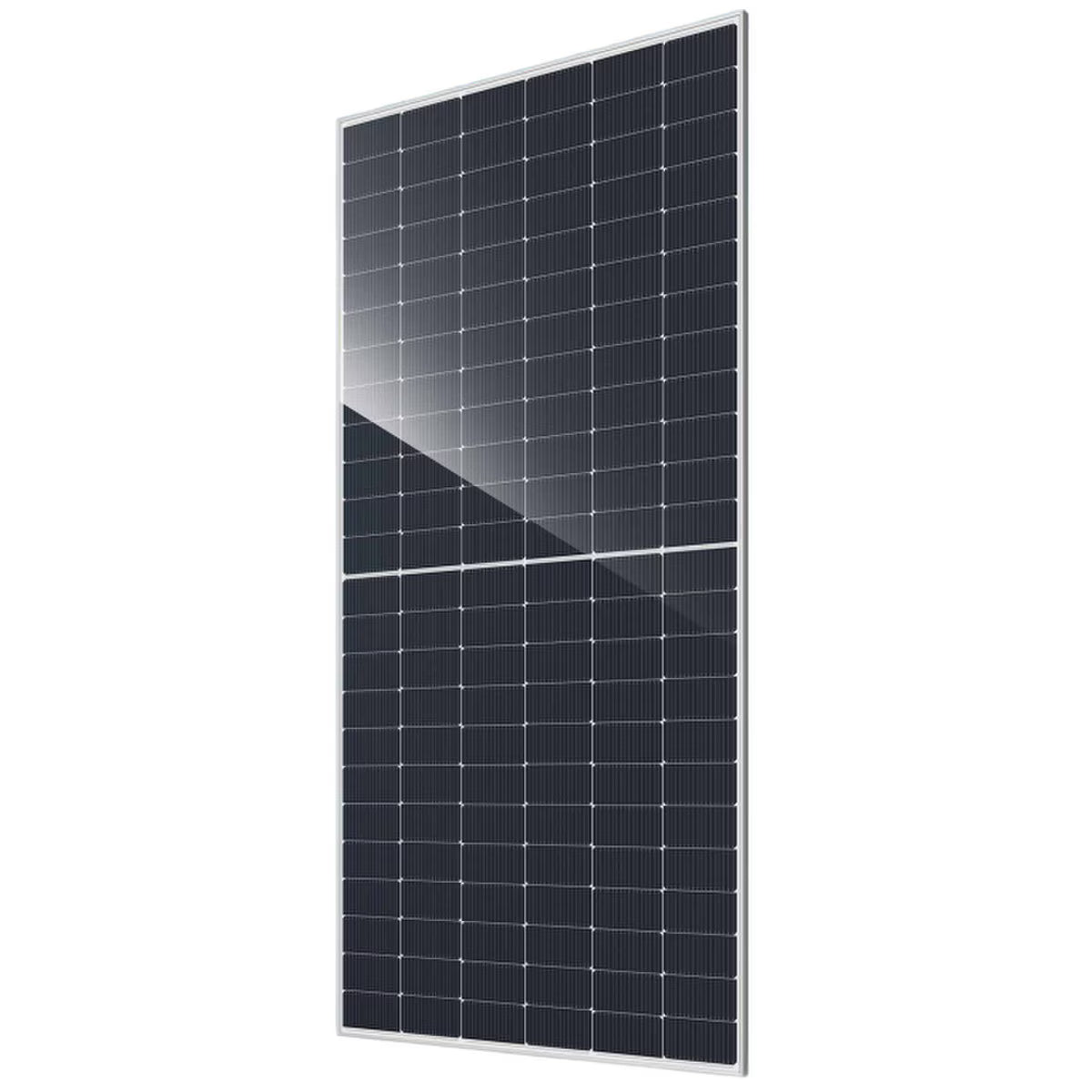

JA Solar 600W D40 Series N Type Bifacial Solar Panel JAM72-D40-600MB-US
MPN No: JAM72-D40-600MB-US
Contact us for Delivery Date
Out Of Stock
$319.80
JA Solar 600W D40 Series N Type Bifacial Solar Panel JAM72-D40-600MB-US
JA Solar 600W D40 Series N Type Bifacial Solar Panel JAM72-D40-600MB-US
Regular price
$319.80
$0.53/watt
SOLD OUT
JA Solar 600W D40 Series N Type Bifacial Solar Panel JAM72-D40-600MB-US
JA Solar 600W D40 Series N Type Bifacial Solar Panel JAM72-D40-600MB-US
Out Of Stock
MPN No: JAM72-D40-600MB-US
Regular price
$319.80
$0.53/watt
Ships from U.S. Warehouse
Trusted by Thousands
Expert U.S. Support
We offer multiple secure payment options for your convenience
We offer multiple secure payment options for your convenience
Data Sheet
Regular price
$319.80
JA Solar 600W D40 Series N Type Bifacial Solar Panel JAM72-D40-600MB-US
MPN No:
JAM72-D40-600MB-US
Contact us for Delivery Date
Sold out
≥ 8
JA Solar 600W D40 Series N Type Bifacial Solar Panel JAM72-D40-600MB-US
The high-performance N-type bifacial dual-glass solar module from the DeepBlue 4.0 Pro series is designed with advanced n-type Bycium+ cells and a 144 half-cut cell configuration.
This module delivers superior efficiency, lower degradation, and enhanced long-term energy yield.
Key Technology
-
N-Type Bycium+ Cell Technology
Delivers higher efficiency, minimal LID, and improved long-term performance. -
Bifacial Dual-Glass Design
Enables up to 80% ±5% bifaciality for increased rear-side energy gain. -
144 Half-Cut Cell Architecture
Reduces resistive losses and enhances performance under partial shading. -
DeepBlue 4.0 Pro Platform
Advanced module design improves efficiency, reliability, and system yield. -
Excellent Temperature Coefficient
Low Pmax coefficient of approximately -0.29%/°C ensures better performance in hot climates. -
High Mechanical Load Capacity
Rated for 5400 Pa front load and 2400 Pa rear load.
Best Uses
-
Utility-Scale
High wattage modules reduce BOS costs and maximize energy production. -
Commercial & Industrial Projects
Ideal for large rooftop and ground-mounted systems. -
Bifacial Ground Mount Systems
Maximizes energy yield with rear-side power generation. -
High-Efficiency Solar Installations
Designed for projects requiring maximum output and long-term reliability.
Warranty
- Product Warranty: 12 Years
- Performance Warranty: 30-Year Linear Power Warranty
- First-Year Degradation: 1%
- Annual Degradation: 0.4% thereafter
Product Specifications
| Specification | Details |
|---|---|
| Manufacturer | JA Solar |
| Model | JAM72D40-600MB-US |
| Cell Technology | N-Type Monocrystalline, Bifacial Dual Glass |
| Cell Configuration | 144 Half Cells |
| Maximum Power (Pmax) | 600 W |
| Module Efficiency | ~23.3% |
| Maximum Power Voltage (Vmp) | 45.50 V |
| Maximum Power Current (Imp) | 13.24 A |
| Open Circuit Voltage (Voc) | 54.50 V |
| Short Circuit Current (Isc) | 14.20 A |
| Temperature Coefficient (Pmax) | -0.29% / °C |
| Maximum System Voltage | 1500 V DC |
| Maximum Series Fuse Rating | 30 A |
| Operating Temperature | -40°C to +85°C |
| Bifaciality | 80% ±5% |
| Dimensions | 89.7 × 44.6 × 1.18 in |
| Weight | 70.1 lb |
| Front / Back Glass | 2.0 mm / 2.0 mm tempered glass |
| Frame | Silver anodized aluminum alloy |
| Junction Box | IP68 rated (3 diodes) |
| Connector | QC 4.10-351 / MC4-EVO2 |
| Cable Length | 1300 mm (51.2 in) |
| Front Load | 5400 Pa |
| Rear Load | 2400 Pa |
| Pallet Quantity | 31 modules per pallet |
About JA Solar:
JA Solar is a globally recognized Tier 1 solar manufacturer specializing in high-efficiency photovoltaic products. Known for innovation in cell technology and large-scale production capabilities, JA Solar delivers reliable modules for residential, commercial, and utility-scale applications worldwide.
High-Efficiency Bifacial Power for Utility-Scale Solar
The JA Solar JAM72D40-600MB-US combines advanced N-type technology, bifacial energy gain, and robust dual-glass construction to deliver maximum energy output and long-term reliability for modern solar installations.
