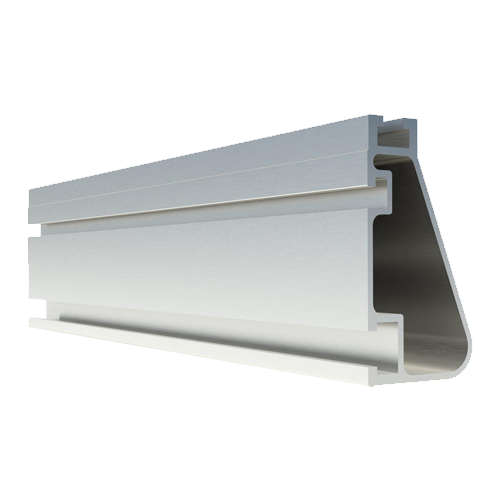

IronRidge XR1000 Rail 170" (14'2") Mill XR-1000-170M

The IronRidge XR-1000-170M is a heavy-duty 170-inch (14 ft 2 in) solar mounting rail designed for high-load solar installations. Part of the IronRidge XR Rail® family, the XR1000 series provides exceptional structural strength and is engineered to handle extreme wind and snow loads in commercial and utility-scale solar arrays.

Constructed from high-strength 6000-series aluminum, the XR1000 rail combines durability with corrosion resistance for long-term outdoor performance. Its curved structural profile increases rigidity and helps resist twisting and uplift forces, making it suitable for demanding environments and large solar arrays.

Key Technology

• XR1000 Structural Rail Design
  The reinforced curved rail profile increases strength in multiple directions while resisting twisting forces.

• Extreme Load Capability
  XR1000 rails are engineered for heavy commercial installations and can span up to 12 feet between attachments.

• 6000-Series Aluminum Construction
  High-strength aluminum alloy offers durability, corrosion resistance, and long-term structural reliability.

• Optimized Rail Geometry
  Engineered cross-section design provides high structural stiffness and excellent load performance.

• Compatible XR Mounting Platform
  Works seamlessly with IronRidge clamps, bonded splices, grounding components, and roof attachments.

Best Uses

• Commercial Solar Installations
  Designed for large rooftop solar arrays requiring high load capacity and long spans.

• Extreme Weather Regions
  Ideal for areas with heavy snow loads or strong wind conditions.

• Utility-Scale Solar Systems
  Provides strong structural support for large ground-mount and rooftop PV installations.

Product Specifications

Heavy-Duty Mounting Rail for Commercial Solar Systems

The IronRidge XR-1000-170M rail provides exceptional structural strength and long-span capability for solar installations requiring maximum durability. Its reinforced aluminum design ensures reliable long-term performance even in demanding climates.
