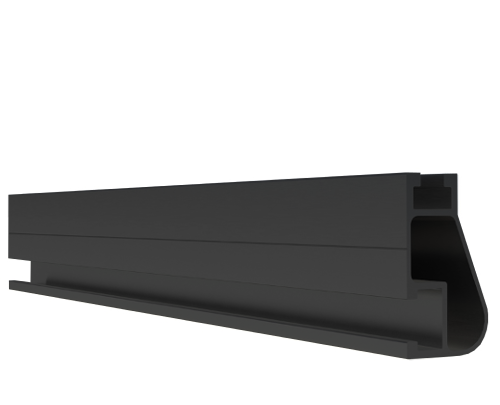

IronRidge XR RAIL 204' (17') BLACK RAIL XR-100-204B

The IronRidge XR-100-204B is a 204-inch (17-foot) black anodized aluminum mounting rail engineered for residential and commercial photovoltaic installations. As part of the IronRidge XR100 rail family, it delivers an optimal balance of strength, span capability, and lightweight construction, allowing installers to reduce roof attachments while maintaining exceptional structural performance.

Its patented curved profile increases resistance to uplift and buckling forces while efficiently transferring loads into the structure. The premium black anodized finish enhances corrosion resistance and creates a sleek, professional appearance that pairs perfectly with black-framed solar modules and all-black arrays.

Key Technology

• XR100 Structural Rail Platform
  Engineered for superior strength-to-weight performance in rooftop solar applications.

• 17-Foot Rail Length
  Long rail sections help minimize splices and streamline installation.

• Patented Curved Rail Profile
  Improves structural rigidity while resisting uplift and buckling forces.

• Long Span Capability
  Supports wider attachment spacing, reducing roof penetrations and installation costs.

• Premium Black Anodized Finish
  Provides outstanding corrosion resistance and attractive system aesthetics.

• Lightweight Aluminum Construction
  Simplifies handling while maintaining excellent structural performance.

• Integrated Wire Management Compatible
  Works with IronRidge accessories for clean cable routing and organization.

• UL 2703 Listed System Component
  Part of a fully engineered and code-compliant solar mounting platform.

Best Uses

• Residential Rooftop Solar
  Provides strong, reliable structural support for flush-mount solar arrays.

• Commercial Solar Installations
  Suitable for larger rooftop PV systems requiring long-span rail performance.

• All-Black Solar Arrays
  Black finish complements premium solar module aesthetics.

• High Wind and Snow Regions
  Designed to withstand demanding environmental loading conditions.

Warranty

• Manufacturer Warranty: 25 Years

Product Specifications

Strong, Lightweight Rail Performance for Professional Solar Installations

The IronRidge XR-100-204B combines long-span capability, lightweight aluminum construction, and premium black aesthetics to provide a dependable mounting foundation for modern photovoltaic systems. Its proven XR100 design helps reduce installation time while delivering the structural performance demanded by today's solar projects.
