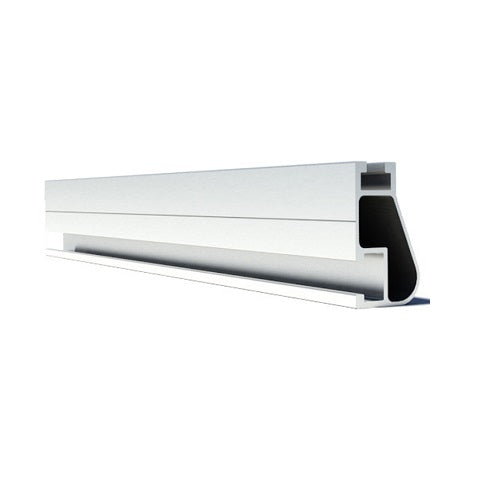

Ironridge XR RAIL XR-10-168M 168' (14') Mill Rail

Ironridge XR RAIL XR-10-168M 168' (14') Mill Rail

Regular price $36.30
Sale price $36.30 Regular price
12983 IN STOCK
Leave a Review

MPN No: XR-10-168M

Ironridge XR RAIL XR-10-168M 168' (14') Mill Rail

Ironridge XR RAIL XR-10-168M 168' (14') Mill Rail

Leave a Review
Regular price $36.30
Sale price $36.30 Regular price


View full details
6 lb
(LxWxH): 168 x 2 x 1 inches

IronRidge XR Rail XR-10-168M 168" (14') Mill Rail

The IronRidge XR Rail XR-10-168M 168" (14') Mill Rail is a robust solution designed for efficient solar panel installations. Crafted with precision, it offers unparalleled durability and ease of installation, making it a top choice for solar projects of all scales.

Technology and Overview

XR Rails® are the structural backbone of IronRidge® pitched, flat and ground-based arrays. Their signature curve helps them to resist uplift, protect against buckling and safely and efficiently transfer loads into the building structure.

Their superior spanning capability requires fewer roof attachments, reducing the number of roof penetrations and the amount of installation time. Each size supports specific design loads, while minimizing material costs. Depending on your location, there is an XR Rail® to match.


XR10® is a sleek, low-profile mounting rail, designed for regions with light or no snow. It achieves 6 foot spans, while remaining light and economical.

  • 6’ spanning capability
  • Moderate load capability
  • Clear & black anodized finish
  • Internal splices available


The curved shape of XR Rails® is specially designed to increase strength in both directions while resisting the twisting. This unique feature ensures greater security during extreme weather and a longer system lifetime.


All XR Rails® are made of 6000-series aluminum alloy, then anodized for protection. This prevents surface and structural corrosion, and provides a more attractive appearance. Available in clear and black finish.


The BOSS® (Bonded Structural Splice) provides a strong connection for linking multiple XR Rails®. No assembly, tools, or hardware required. The built-in bonding spring bites into rail, meeting all UL standards.

Installation and Compatibility

The installation process for the IronRidge XR Rail is straightforward and hassle-free, allowing for quick and efficient setup. It is compatible with a wide range of mounting systems and solar panels, offering versatility and adaptability to different project requirements.

Benefits and Applications

This rail is suitable for residential, commercial, and industrial applications, providing a versatile solution for various solar projects.

Specification Value
Manufacturer IronRidge
Model XR-10-168M
Length 168 inches (14 feet)
Color Mill
Material Aluminum
Compatibility Compatible with various mounting systems
Installation Easy and efficient installation process
Applications Residential, commercial, and industrial solar projects
Benefits Cost-saving, environmentally friendly

Questions and Answers (6)


How are shipping costs calculated at US Solar Supplier?


Shipping costs at US Solar Supplier are calculated based on the weight and dimensions of the product(s) in your order. The company utilizes FedEx or UPS for ground shipments and trusted freight carriers for larger shipments. All shipments are insured for customer protection.


What is the estimated delivery time for orders from US Solar Supplier?


For standard delivery, most orders will arrive at their destination within 7 to 10 business days. Please note that these estimates can change depending on the carrier's operational capabilities and other uncontrollable factors.


How should I inspect my shipments upon delivery from US Solar Supplier?


It is essential to meticulously inspect your shipment upon delivery. If any damage or issues are found, note them on the Bill of Lading (BOL) or the delivery receipt. Major visible damage should result in the rejection of the delivery. Any damages must be reported to US Solar Supplier by email within 24 hours of delivery, including the signed BOL and any supporting documents or photos.


How can I ensure that the solar products I'm ordering will fit my project needs?


US Solar Supplier offers only the best Tier 1 product offerings and high-quality solar equipment. You can design your solar project using the solar design tool, tailored to fit your needs. If you have specific preferences or deadlines, include this information in the order notes or contact the sales department before placing your order. US Solar Supplier is committed to empowering you with the tools and support needed to ensure your project's success.


What financing options are available at US Solar Supplier for solar projects?


US Solar Supplier offers a range of finance solutions through its partners, including Power Purchase Agreements, Leases, and Loans. Additionally, their consultative approach can help you take advantage of PACE financing for commercial projects. The team at US Solar Supplier is ready to assist in finding the right finance solution to make your solar project a reality.

Reviews No reviews
