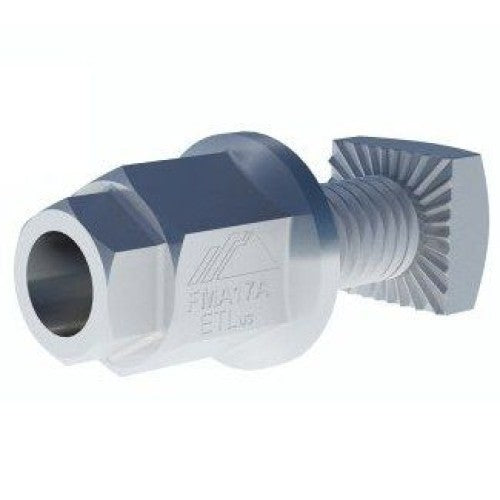

IronRidge Square-Bolt Bonding Hardware (BHW-SQ-03-A1) - Secure & Code-Compliant Solar Grounding
Manufacturer Part Number: BHW-SQ-03-A1
Ensure the safety and compliance of your solar PV system with the IronRidge Square-Bolt Bonding Hardware (BHW-SQ-03-A1). This essential component is specifically designed to provide reliable electrical bonding for IronRidge racking systems, creating a continuous ground path for your solar array. Critical for meeting electrical code requirements, this bonding hardware ensures the entire solar installation is safely grounded, protecting against electrical hazards and increasing system longevity.
The IronRidge BHW-SQ-03-A1 features a unique square-bolt design that provides superior grip and secure connections within IronRidge rails. Made from durable, corrosion-resistant materials, this bonding hardware maintains its integrity in diverse environmental conditions, guaranteeing long-term performance for your solar mounting system.
Key Features & Benefits:
- Integrated Bonding Solution: Engineered for seamless integration with IronRidge XR Rails and other IronRidge components, providing a reliable and efficient ground path.
- Code Compliant: Meets stringent electrical code requirements for electrical bonding, ensuring your solar installation is safe and passes inspections. This is a must-have for code-compliant solar installations.
- Secure Square-Bolt Design: The innovative square-bolt configuration offers a strong, vibration-resistant connection, preventing loosening over time and maintaining continuous conductivity.
- Durable & Corrosion-Resistant: Constructed from high-quality materials to withstand harsh outdoor environments, ensuring long-lasting performance and reliability for your PV racking system.
- Easy Installation: Designed for quick and straightforward installation, saving valuable time and labor costs on your solar project. Ideal for both professional installers and DIY solar enthusiasts.
- Enhanced System Safety: Provides critical protection against electrical shock and fire hazards by effectively grounding all metallic components of your solar array.
Ideal for:
- Residential Solar Installations
- Commercial Solar Projects
- New Solar System Builds
- Solar System Upgrades and Maintenance
- Professional Solar Installers
- DIY Solar Enthusiasts
Specifications Table
| Attribute | Specification |
|---|---|
| Product Name | Square-Bolt Bonding Hardware |
| Model Number | BHW-SQ-03-A1 |
| Application | Electrical bonding for IronRidge XR Rails |
| Compatible Rails | XR10, XR100, XR1000 |
| Hardware Type | Serrated square-bolt assembly |
| Material | Zinc-plated steel |
| Certification | UL 2703 Listed |
| Tool Requirements | Torque wrench only (no special tools) |
| Torque Spec | Typically 10 ft-lbs (verify per IronRidge manual) |
| Weight | ~0.1 lbs per unit |
| Dimensions (H × W × D) | 1.0 × 1.0 × 1.0 inches |
| Warranty | 25 Years |
About IronRidge
IronRidge is a leading American manufacturer of solar mounting and racking systems for residential, commercial, and industrial applications. With a reputation for strength, simplicity, and durability, IronRidge offers innovative products including roof mount systems, ground mount structures, and all necessary bonding and grounding hardware. Their solutions are UL 2703 certified and engineered to meet the highest safety and performance standards. Built for harsh environments and easy field installation, IronRidge products deliver long-term value and trusted protection for solar installations worldwide.
