Quick Mount PV QMR-HEC-A-20 Universal Hidden End Clamp

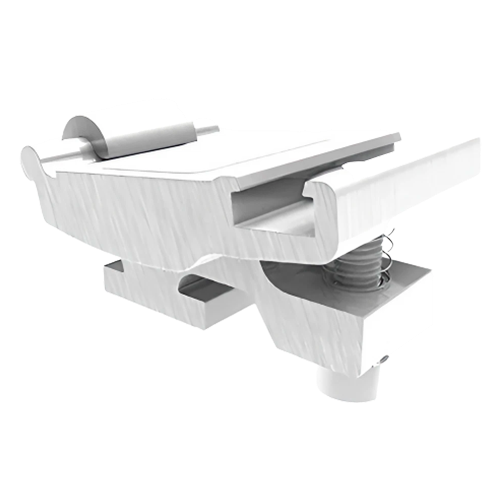

The QMR-HEC-A-20 Universal Hidden End Clamp is a low-profile rail-mounted end clamp designed to secure solar modules with 20 mm frame thickness while remaining hidden beneath the panel edge. Engineered for clean aesthetics and fast installation, this clamp delivers strong mechanical retention without visible hardware at the array perimeter.
Key Technology
-
Hidden Clamp Design
Conceals hardware beneath the module frame for a sleek, professional array appearance. -
Universal Rail Compatibility
Designed to integrate with Quick Mount PV rail systems using standard T-bolts or channel hardware. -
Precision Fit for 20 mm Frames
Optimized to securely clamp thin-frame modules without over-torquing or deformation. -
Corrosion-Resistant Construction
Manufactured from anodized aluminum and stainless steel for long-term rooftop durability.
Best Uses
-
Residential & Commercial Rooftop PV
Ideal for projects requiring a clean, hardware-free array edge. -
Architecturally Visible Installations
Hidden end clamp improves curb appeal and professional finish. -
Quick Mount PV Rail Systems
Designed for seamless integration with QMP mounting solutions.
Installation Notes
-
Installs at the outer edge of the array beneath the end module.
-
Tighten to manufacturer-recommended torque for secure module retention.
-
Verify module frame thickness (20 mm) prior to installation.
Warranty & Manufacturer
-
Manufacturer: 10 years.
Product Specifications
| Specification | Details |
|---|---|
| Manufacturer | Quick Mount PV |
| Product Name | Universal Hidden End Clamp |
| Part Number | QMR-HEC-A-20 |
| Module Frame Thickness | 20 mm |
| Mounting Location | End of array (rail-mounted) |
| Material | Anodized aluminum & stainless steel hardware |
| Application | Hidden end clamping for framed PV modules |
About IronRidge:
IronRidge designs and manufactures solar panel mounting and racking systems for residential and commercial PV installations. Known for durable roof, ground, and tilt-mount solutions with UL-2703 certification and long warranties, it’s widely used by solar professionals across North America.
Clean Edges, Secure Hold
The Quick Mount PV QMR-HEC-A-20 Universal Hidden End Clamp delivers a strong, reliable module attachment while keeping hardware out of sight—perfect for installers who want both performance and polished aesthetics in modern solar arrays.
