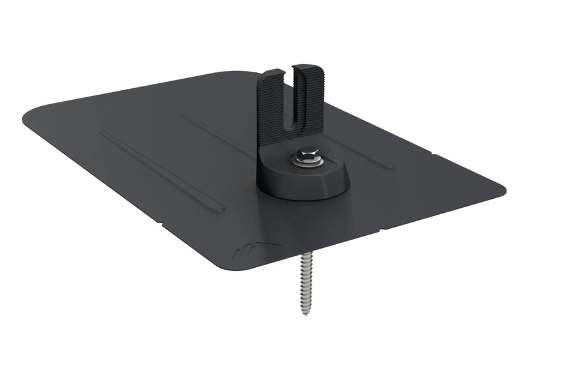

Ironridge Flashvue Black Finish Flashing FV-01-B1

The IronRidge FV-01-B1 FlashVue Flashing is a high-quality black-finish roof flashing designed to provide a secure, watertight attachment point for solar mounting systems on composition shingle roofs. Engineered for reliability and fast installation, the FlashVue system integrates flashing, sealing hardware, and mounting components to protect the roof while supporting photovoltaic racking installations.

Its optimized flashing design includes a large alignment viewport and GripCap system that allows installers to position and drive the lag bolt easily with one hand. The result is a durable and weather-resistant roof penetration solution that maintains long-term roof integrity for residential and commercial solar systems.

Key Technology

• FlashVue Integrated Flashing Design
  Provides a fully waterproof roof penetration solution for solar mounting installations.

• Large Alignment Viewport
  A 0.75-inch opening in the flashing allows easy alignment with the pilot hole during installation.

• GripCap Friction-Fit System
  The GripCap component stays securely in place, allowing installers to drive the lag bolt with one hand.

• Triple-Layer Water Protection
  Elevated flashing rim, GripCap cover, and EPDM sealing washer create a multi-layer waterproof seal.

• Compact Flashing Footprint
  The 8 × 12 inch flashing plate fits between roofing nails, reducing roof interference during installation.

• Durable Construction
  Designed using corrosion-resistant materials for long-term outdoor performance.

Best Uses

• Residential Rooftop Solar Installations
  Provides a reliable flashing solution for solar mounting systems on asphalt shingle roofs.

• Commercial Rooftop Solar Projects
  Ensures secure roof penetration sealing for larger PV systems.

• IronRidge Racking Systems
  Designed for compatibility with IronRidge mounting hardware and rail systems.

Product Specifications

Secure and Watertight Solar Roof Attachment

The IronRidge FlashVue FV-01-B1 provides a durable, easy-to-install flashing solution that protects roof penetrations while securely supporting solar racking systems. Its innovative alignment viewport, GripCap system, and multi-layer sealing design help installers achieve fast, reliable rooftop solar installations.
