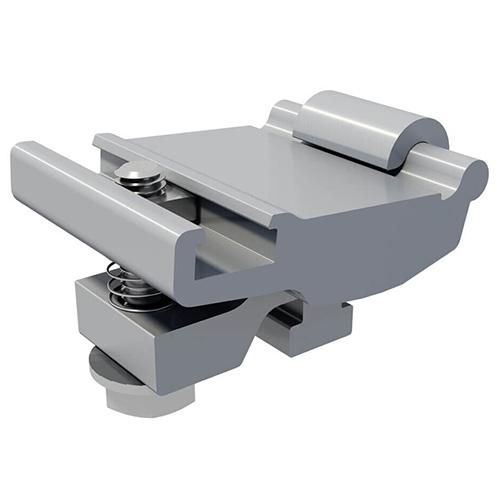

IronRidge Eclipse (XR Hidden End Clamp) Clear ECL-01-A1
MPN No: ECL-01-A1
Expected ship date Jan 16 - 23
In Stock
$7.00
IronRidge Eclipse (XR Hidden End Clamp) Clear ECL-01-A1
IronRidge Eclipse (XR Hidden End Clamp) Clear ECL-01-A1
Regular price
$7
New
1146 IN STOCK
IronRidge Eclipse (XR Hidden End Clamp) Clear ECL-01-A1
IronRidge Eclipse (XR Hidden End Clamp) Clear ECL-01-A1
Available
MPN No: ECL-01-A1
Regular price
$7
Expected ship date Jan 16 - 23
We offer multiple secure payment options for your convenience
We offer multiple secure payment options for your convenience
Data Sheet
Regular price
$7
IronRidge Eclipse (XR Hidden End Clamp) Clear ECL-01-A1
MPN No:
ECL-01-A1
Expected ship date Jan 16 - 23
IronRidge Eclipse (XR Hidden End Clamp) Clear ECL-01-A1
The IronRidge Eclipse (ECL-01-A1) is a hidden end clamp for XR Rail® that secures the edge module flush with the rail end for a clean, sleek array appearance. It installs with a simple 7/16" socket and arrives pre-assembled in a clear anodized finish.
Key Benefits
Invisible Finish: Sits out of sight at the rail end to deliver a tidy, homeowner-preferred look.
Fast Installation: Slides into the XR Rail top channel and tightens with a 7/16" socket; no loose parts.
Pre-Assembled & Durable: Clear anodized aluminum resists corrosion and arrives ready to set.
Special Technology
Eclipse Hidden Clamp Geometry: Upper shoe rests on the module flange; bolt on the flat side of the rail with the bolt head facing the roof for proper seating. Torque to 80 in-lbs. (See page 2 install steps A–C.)
Warranty
Manufacturer’s standard racking hardware warranty (IronRidge).
Best Uses
Residential & C&I Flush Mount: End-of-row module retention on XR Rail® where aesthetics matter.
Specifications Table
| Specification | Data |
|---|---|
| Part Number | ECL-01-A1 |
| Product Type | Hidden End Clamp for XR Rail® |
| Rail Compatibility | XR Rail® (top-channel insertion) |
| Finish | Clear anodized aluminum (pre-assembled) |
| Tool / Torque | 7/16" socket; tighten to 80 in-lbs |
| Frame Compatibility | Bottom flange lip X = 1–3 mm; flange depth Y = 8–40 mm (per diagram, page 2) |
| Bonding | Not a bonded end clamp; standalone modules require grounding lugs on each rail and the module |
| Certifications | Listed to UL 2703; complies with IBC & ASCE/SEI-7 mechanical/bonding requirements |
| Orientation Notes | Bolt on flat side of rail; bolt head faces roof (install steps A–C) |
| Weight | 0.144 lb |
