Ironridge Bx Top Clamp - BX-TCL-32MM-M1

Ironridge Bx Top Clamp - BX-TCL-32MM-M1

Regular price $1.65
Sale price $1.65 Regular price

Ironridge Bx Top Clamp - BX-TCL-32MM-M1

Ironridge Bx Top Clamp - BX-TCL-32MM-M1

No reviews
Regular price $1.65
Sale price $1.65 Regular price
View full details
Description
Questions
Reviews
Ironridge
Manufacturer
Ironridge
Weight
0.05 lb
Dimension
(LxWxH): 2.05 x 1.5 x 1.5 inches

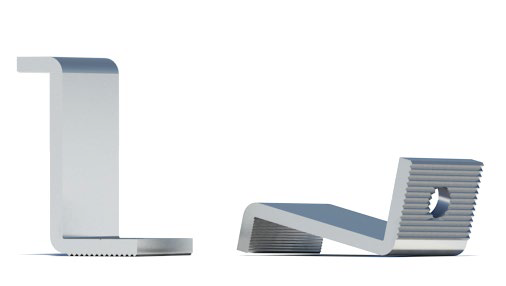

IRONRIDGE BX TOP CLAMP - BX-TCL-32MM-M1

The Iron Ridge BX System Top Clamps are module frame height specific and accommodate most common module sizes: 30 mm, 32 mm, 35 mm, 38 mm, 40 mm, 46 mm. When securing modules, place all Bottom Clamps on the Chassis followed by the PV panels. Place a matching number of Top Clamps aligned above the Bottom Clamps and make sure that all Clamps are fully engaged and square to the module and torqued appropriately.

SPECIFICATIONS

Model IRONRIDGE BX-TCL-32MM-M1
Series BX
Manufacturer Ironridge


GENERAL SPECIFICATION

Type  Ballast
Color  Mill
Finish Mill Finish
Material  Aluminum
Application Flat Roof  Flat Roof - Ballast

Warranty

  • 25¬†Year Standard Warranty.

* Refer to warranty document for terms and conditions
Documentation

Data Sheet


Detailed Information

The BX System's Top and Bottom Clamps work together to provide a multi-directional grip on the module from above and below, maintaining a secure link no matter which force direction is applied.

BX has an 8-10% increase in power density when compared with leading competitor systems

Provides an anchoring method with a variety of roofing membranes, making it possible to eliminate ballast weight, meet seismic requirements, or build hybrid systems

High reliability

Cell interconnections and diode placement use well-established industry practice and are field-proven to provide excellent reliability.

designed to offer protection for PV conductors and leads running row-to-row in the N-S direction

Fewer than 10 parts per project, with no wind deflectors required



Quality and certifications
