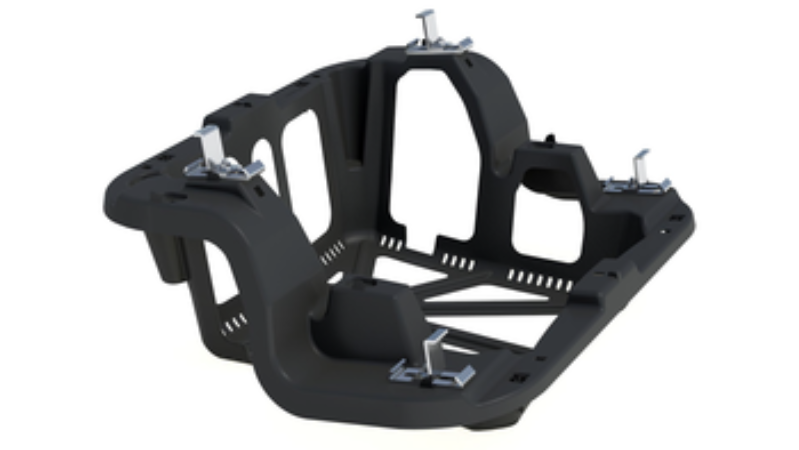

IronRidge BX 5D Tilt Chassis – 5° Fixed-Angle Mounting Frame BX-5D-P1

The IronRidge BX-5D-P1 is a high-performance 5° fixed-angle tilt chassis designed for flat roof solar installations. As part of the BX Ballasted Mounting System, this chassis provides a durable, roof-friendly solution engineered to maximize power density while simplifying installation on commercial rooftops.

Constructed from advanced BASF Ultramid glass-reinforced composite material, the BX chassis delivers exceptional strength, thermal stability, and long-term durability, making it ideal for demanding environmental conditions and large-scale solar projects.

Key Technology

• 5° Fixed Tilt Design
  Optimized tilt angle for flat roof installations, balancing energy production and system stability.

• Ballasted Mounting System
  Allows for non-penetrating installations while reducing roof impact and preserving membrane integrity.

• Glass-Reinforced Composite Construction
  Made from BASF Ultramid material offering high mechanical strength, UV resistance, and long-term durability. :contentReference[oaicite:0]{index=0}

• 360° Reinforced Structure
  Perimeter flange and structural geometry enhance rigidity and reduce point loading across the chassis. :contentReference[oaicite:1]{index=1}

• Roof-Friendly Design
  Wide base distributes weight evenly and reduces pressure points while minimizing roof damage. :contentReference[oaicite:2]{index=2}

• Integrated Ballast Management
  Fully enclosed ballast design with drainage channels prevents water pooling and improves system longevity. :contentReference[oaicite:3]{index=3}

• Enhanced Power Density
  Optimized spacing and layout improve system capacity and energy output for commercial installations. :contentReference[oaicite:4]{index=4}

Best Uses

• Flat Roof Solar Systems
  Ideal for commercial rooftops requiring non-penetrating ballasted mounting solutions.

• Commercial Solar Installations
  Designed for large-scale systems with high power density requirements.

• Complex Roof Layouts
  Engineered to navigate obstacles such as drains, conduits, and roof structures.

Warranty

• Product Warranty: 25 Years

Product Specifications

Engineered for Flat Roof Performance and Installation Efficiency

The IronRidge BX-5D-P1 chassis delivers a robust, flexible, and roof-friendly mounting solution—combining structural strength, optimized tilt design, and installation versatility for modern flat roof solar systems.
