IronRidge All Tile Hook (Incl. 2 Lags) QM-ATH-02-M1
MPN No: QM-ATH-02-M1
Expected ship date Jan 08 - 15
In Stock
$12.21
IronRidge All Tile Hook (Incl. 2 Lags) QM-ATH-02-M1
IronRidge All Tile Hook (Incl. 2 Lags) QM-ATH-02-M1
Regular price
$12.21
New
2628 IN STOCK
IronRidge All Tile Hook (Incl. 2 Lags) QM-ATH-02-M1
IronRidge All Tile Hook (Incl. 2 Lags) QM-ATH-02-M1
Available
MPN No: QM-ATH-02-M1
Regular price
$12.21
Expected ship date Jan 08 - 15
We offer multiple secure payment options for your convenience
We offer multiple secure payment options for your convenience
Data Sheet
Regular price
$12.21
IronRidge All Tile Hook (Incl. 2 Lags) QM-ATH-02-M1
MPN No:
QM-ATH-02-M1
Expected ship date Jan 08 - 15
IronRidge All Tile Hook (Incl. 2 Lags) QM-ATH-02-M1

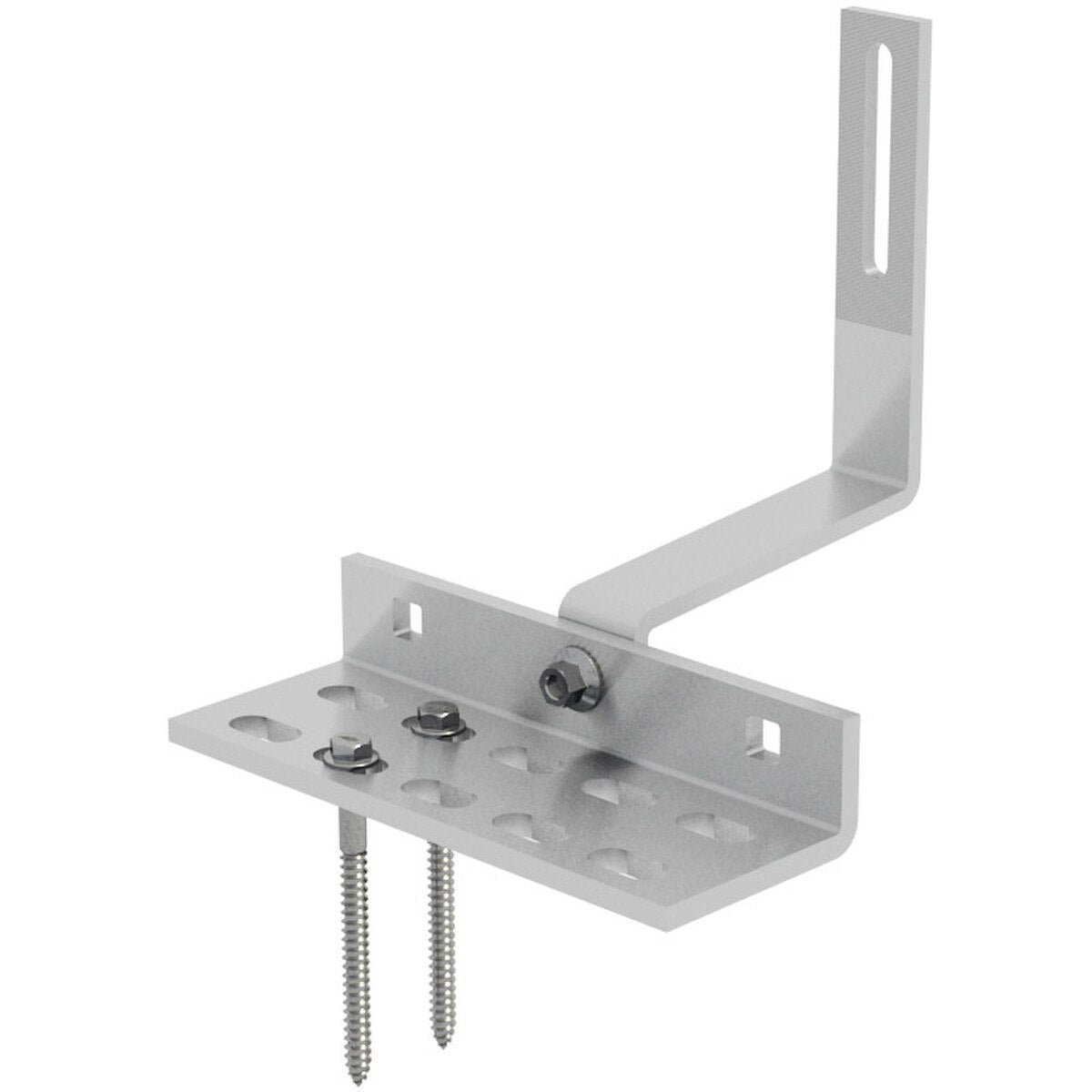

The IronRidge All Tile Hook provides a strong, adjustable attachment for mounting PV rails over S-tile, W-tile, and flat concrete/clay tiles. The kit includes the stainless base and arm assemblies, plus two 5/16″ × 4″ lag bolts and a 5/16″ × 1″ carriage bolt for a complete, job-ready install.
Key Benefits
Tile-Friendly, Flashless Attachment: Engineered hook and base assembly lands on the deck beneath the tile for a clean, durable connection.
Complete Hardware in the Box: Ships with (2) 5/16″ × 4″ lag bolts and (1) 5/16″ × 1″ carriage bolt for faster staging.
All-Stainless Build: 300-series stainless steel components with clear finish for long-term corrosion resistance.
Installation
Lag the base through the roof deck into structure, set and align the arm under the tile, then secure the rail using the carriage bolt interface. Follow IronRidge rail and bonding hardware guidelines for final torque and bonding.
Best Uses
Residential & Light Commercial Tile Roofs: S-tile, W-tile, and flat concrete/clay tiles where a low-profile, code-compliant attachment is needed.
Special Technology
Adjustable Hook + Base Geometry: Slotted/base design supports alignment under tile while maintaining deck sealing with included lag hardware.
Warranty
Manufacturer’s standard racking hardware warranty (IronRidge).
Specifications Table
| Specification | Data |
|---|---|
| Part Number | QM-ATH-02-M1 (All Tile Hook, with lags) |
| Kit Contents | (2) Lag bolts 5/16″ × 4″; (1) Base assembly (clear); (1) Arm assembly (clear); (1) Carriage bolt 5/16″ × 1″ |
| Materials | 300-Series Stainless Steel (base & arm), hardware stainless; clear finish |
| Thread Spec | 5/16-18 (per cut-sheet callouts) |
| Tile Types | S-tile, W-tile, flat concrete/clay tile |
| Mounting Method | Lagged to deck/structure beneath tile; hook passes under tile |
| Typical Use with Rails | IronRidge rail/bonding hardware (sold separately) |
| Notable Drawing Dimensions | Cut sheet includes detailed dimensions and hole/slot callouts for base & arm (reference drawing) |
