Enphase IQ EV Charger 32A 25-ft Cable IQ-EVSE-NA-1040
IQ-EVSE-NA-1040
Enphase IQ EV Charger 32A 25-ft Cable IQ-EVSE-NA-1040

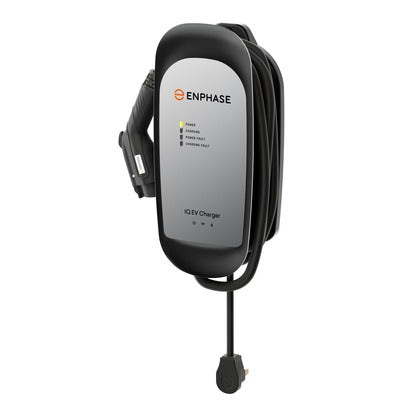

The Enphase IQ EV Charger (HCS-40 Series) is a powerful Level 2 EVSE solution providing 32 amps of charging capacity for residential and commercial settings. Featuring a rugged 25-ft cable, J1772 connector, and NEMA 4-rated enclosure, it delivers reliable performance indoors or outdoors. Compatible with all J1772-equipped electric vehicles.
Key Benefits
Level 2 Charging: Charges up to 6x faster than standard vehicle-supplied chargers with 32A output (7.68 kW).
Flexible Installation: Available in hardwired and plug-in models; compatible with wall or pedestal mounting.
Outdoor Ready: NEMA 4-rated enclosure ensures durability in all weather conditions.
Smart Cable Management: 25-ft ruggedized cable with integrated cable wrap and J1772 holster for storage.
Special Technology
LED Status Indicators: Color-coded LEDs provide real-time system and fault status at a glance.
Auto-Restart and Safety Recovery: Automatically resumes charging after minor power faults.
Ground Fault Protection: Integral CCID 20 mA with auto-reset functionality for enhanced safety.
Warranty
Protected by a 5-year manufacturer warranty backed by Enphase support.
Best Uses
Residential EV Charging: Ideal for homeowners seeking fast, safe, and durable EV charging.
Commercial & Fleet Installations: Supports multi-vehicle deployments in garages or parking lots.
Outdoor Locations: Weatherproof construction suitable for exposed wall or pedestal installations.
Specifications Table
| Specification | Data |
|---|---|
| Model | IQ-EVSE-NA-1040 (HCS-40 Series) |
| Charging Type | Level 2, 240 VAC |
| Maximum Output Current | 32 A continuous |
| Maximum Output Power | 7.68 kW |
| Cable Type | SAE J1772, ruggedized |
| Cable Length | 25 ft (7.62 m) |
| Enclosure Dimensions (L × W × D) | 19.7 × 8.9 × 5.3 in |
| Weight | 13.5 lbs |
| Enclosure Rating | NEMA Type 4 (Indoor/Outdoor) |
| Input Voltage Range | 185–264 VAC |
| Circuit Breaker Requirement | Dedicated two-pole 40 A |
| Operating Temperature | -22°F to 122°F (-30°C to 50°C) |
| Certifications | UL, CSA, ENERGY STAR, FCC Part 15 Class B |
| Warranty | 5 years |
