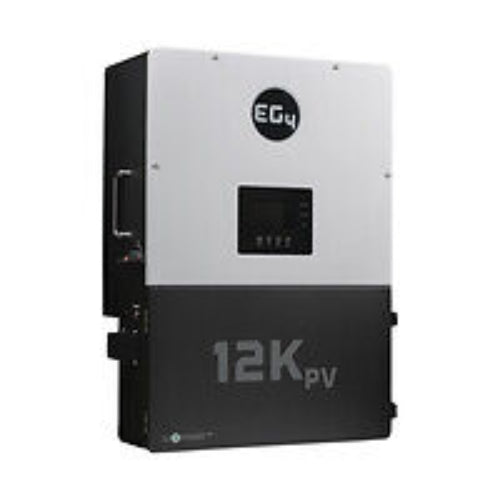

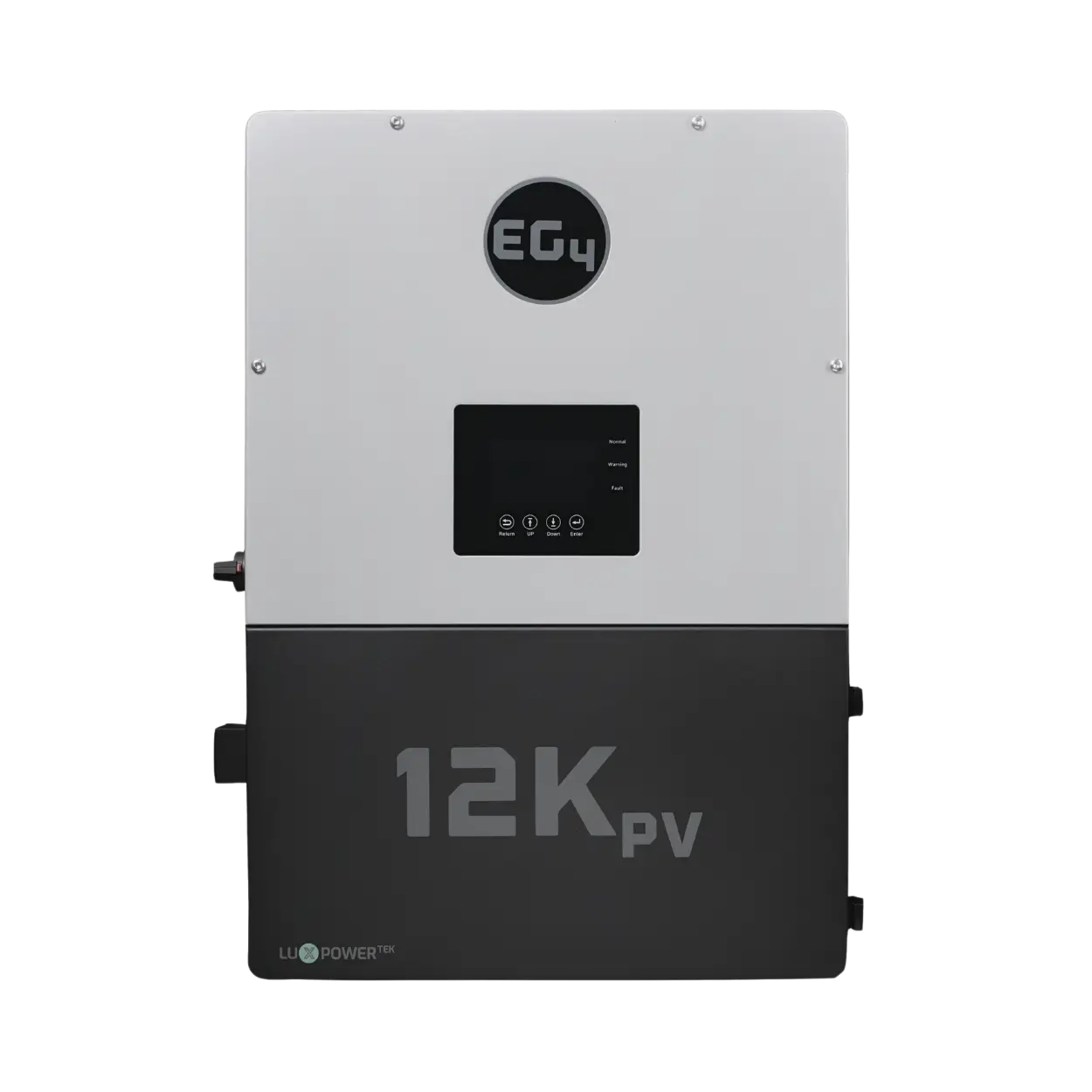

EG4 8000W EG412KPV8LV 48V Inverter Charger with 12kW MPPT 120-500VDC
MPN No: EG412KPV8LV
Expected ship date Jun 11 - 18
In Stock
$3,950.60
EG4 8000W EG412KPV8LV 48V Inverter Charger with 12kW MPPT 120-500VDC
EG4 8000W EG412KPV8LV 48V Inverter Charger with 12kW MPPT 120-500VDC
Regular price
$3,950.60
LESS THAN 50
EG4 8000W EG412KPV8LV 48V Inverter Charger with 12kW MPPT 120-500VDC
EG4 8000W EG412KPV8LV 48V Inverter Charger with 12kW MPPT 120-500VDC
Available
MPN No: EG412KPV8LV
Regular price
$3,950.60
Expected ship date Jun 11 - 18
Ships from U.S. Warehouse
Trusted by Thousands
Expert U.S. Support
We offer multiple secure payment options for your convenience
We offer multiple secure payment options for your convenience
Data Sheet
Regular price
$3,950.60
EG4 8000W EG412KPV8LV 48V Inverter Charger with 12kW MPPT 120-500VDC
MPN No:
EG412KPV8LV
Expected ship date Jun 11 - 18
EG4 8000W 48V Inverter/Charger EG412KPV8LV with 12kW MPPT 120-500VDC
Key Features
- All-in-One Hybrid Inverter – Supports grid-tied, off-grid, and battery backup applications.
- High Efficiency: 97.5% max PV-to-grid efficiency and 99.9% PV-to-battery efficiency.
- 600VDC PV Input: Higher voltage reduces cable sizing and installation costs.
- Scalable Power: Parallel up to 10 units for 80kW total output power.
- Built-In Rapid Shutdown (RSD): NEC 690.12 compliant for enhanced safety.
- Seamless Battery Integration: Closed-loop communication with EG4 48V Li-ion batteries and other compatible brands.
- Smart Monitoring & Connectivity: Wi-Fi-enabled for remote adjustments and system monitoring.
- Durable & Weatherproof: NEMA 4X-rated, ensuring reliable performance in harsh environments.
- 10-Year Warranty: Industry-leading warranty and long-term reliability.
Best Applications
- Residential Solar Energy Systems – Ideal for homeowners seeking energy independence.
- Off-Grid & Backup Power – Supports full or partial home backup with seamless transition.
- Commercial & Industrial Solar – Scalable power output for businesses and commercial applications.
Special Technology
The EG4 12kPV Hybrid Inverter utilizes high-frequency, transformerless design for enhanced efficiency and reduced weight. Its dual MPPT tracking optimizes power harvest, and closed-loop communication ensures maximum performance when paired with compatible LiFePO4 battery systems. The integrated PV disconnect, surge protection, and arc fault detection provide superior safety and compliance with industry standards.
About EG4 Electronics
EG4 Electronics is a leader in high-performance solar inverters, battery storage systems, and renewable energy solutions. Focused on innovation and reliability, EG4 products deliver industry-leading efficiency, scalability, and safety for residential and commercial solar applications.
Specifications
| Parameter | Value |
|---|---|
| Rated AC Power Output | 8kW (8000W) |
| Max. PV Input Power | 12kW (12000W) |
| Recommended Max Solar Input | 15kW (15000W) |
| Max. Efficiency (PV to Grid) | 97.5% |
| Max. Efficiency (Battery to Grid) | 94% |
| CEC Weighted Efficiency | 96.4% |
| Max. Efficiency (PV to Battery) | 99.9% |
| Nominal AC Voltage | 120/240V Split-Phase, 120/208V |
| Max. AC Input Power | 12kW |
| Max. Continuous Output Current | 33.3A @ 240V, 38.5A @ 208V |
| MPPT Voltage Range | 120V – 500VDC |
| Max. DC Input Voltage | 600VDC |
| Number of MPPTs | 2 |
| Battery Compatibility | Li-ion (48V), Lead-Acid |
| Battery Voltage Range | 40V – 60V |
| Max. Charge/Discharge Current | 167A @ 48VDC |
| Operating Temperature Range | -13°F to 140°F (-25°C to 60°C) |
| Enclosure Rating | NEMA 4X (Outdoor Rated) |
| Dimensions (H × W × D) | 29.5 × 20.5 × 11.2 in (750 × 520 × 285 mm) |
| Weight | 110 lbs (50 kg) |
| Max. Units in Parallel | 10 (Up to 80kW Total Output) |
| Communication Interface | RS485, CAN, Wi-Fi |
| Warranty | 10 Years |
