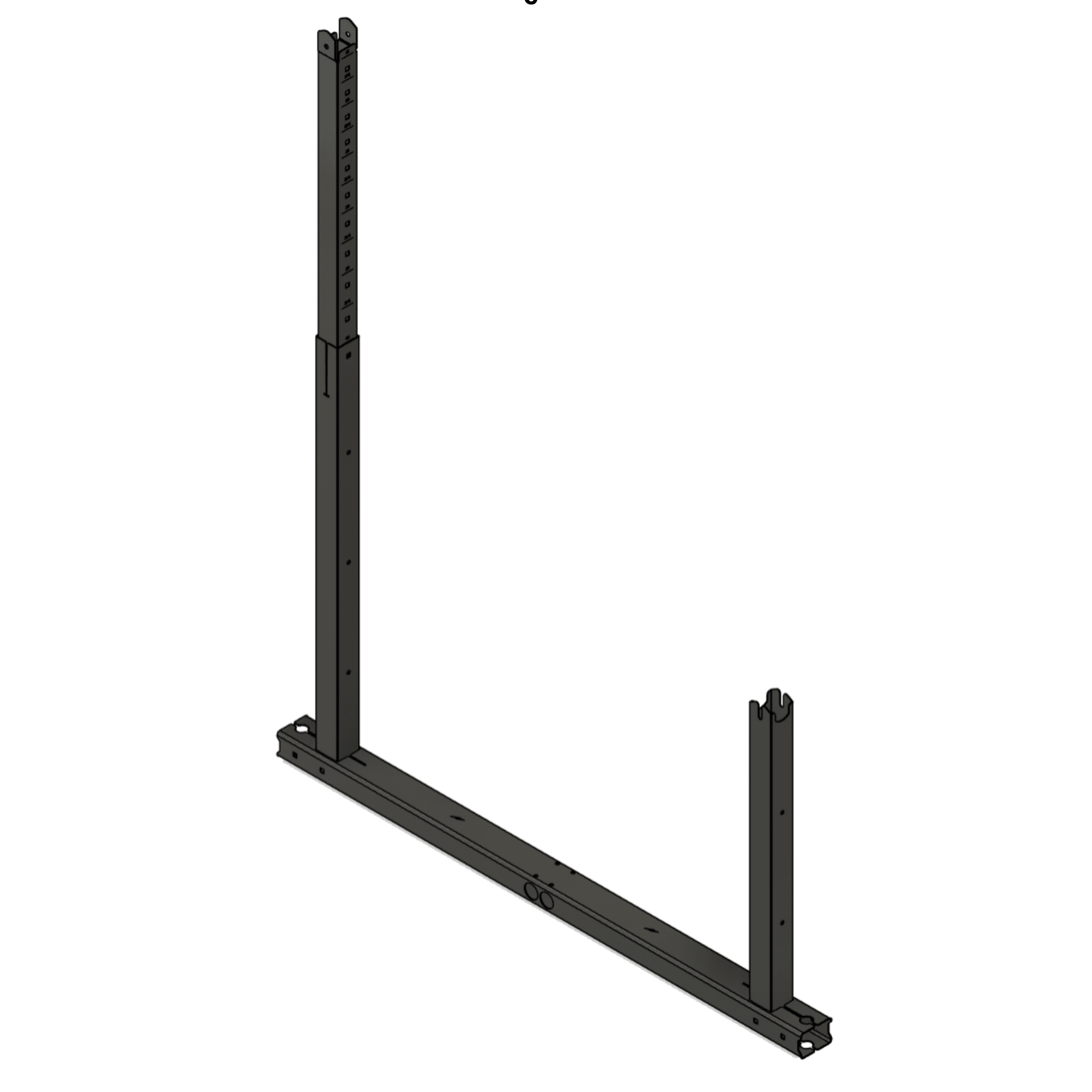

The IntegraRack IR-40FSAB0040 is a 40° tilt ground-mount racking frame engineered for fast deployment with multiple foundation options: base-frame ballast, EarthBallast™, AnchorSpike™, or bolted footings. Factory-tested load ratings, simple spacing rules, and modular steel/composite/aluminum frame variants make it a versatile platform for small commercial and residential arrays.
Key Benefits
Multiple Foundations: Choose Base-Frame Ballasted (no stakes), IR EarthBallast™ (soil mound), IR AnchorSpike™ (driven anchors), or bolted to concrete/steel.
Proven Loads: Snow up to 100 psf (≤24 ft² modules) with wind-speed ratings by foundation and module size at 40°.
Clear Row Spacing: Simple on-center spacing rules by tilt (40° → 13′-2″ O.C.).
Flexible Materials: Frames available in high-strength steel (black zinc plated), steel+composite tube, or 6061-T6 aluminum tube variants.
Special Technology
IR EarthBallast™: 22″ fill height, ~1,000 lb per module, mound center offset 6″ toward rear leg.
IR AnchorSpike™: Two spikes per frame section; ≥750 lb uplift test per spike; requires compacted medium/high-density soil (not for frost depths >20″).
Warranty
The IntegraRack model IR-40FSAB0040 carries a 25-year limited product warranty.
Best Uses
Residential & Light Commercial Ground-Mounts: Sites needing high tilt (40°) and flexible foundation methods (ballast, earth mound, anchors, or footings).
Specifications Table
| Specification | Data |
|---|---|
| Part Number | IR-40FSAB0040 (IR-40 series, 40° tilt) |
| System Type | Ground-mount racking frame (single-row A-frame) |
| Tilt Angle | 40° (other tilt tables available: 15°, 20°, 25°, 30°, 35°) |
| Foundation Options (per frame section / module) | |
| Base Frame Ballasted | 3 × 175 lb curb-stop ballasts per module (≈525 lb) — no stakes. |
| IR EarthBallast™ | 22″ mound fill; ≈1,000 lb per module; mound center offset 6″ toward rear leg; requires (2) 3/4″ steel forming stakes per base tube end. |
| IR AnchorSpike™ | 2 spikes per frame section; ≥750 lb uplift test each; compacted soil; not for frost depth >20″. |
| Base Frame Bolted | Bolt to concrete footing/ballast pad or steel beam (≥1,000 lb hold-down per frame section). |
| Wind Speed Ratings @ 40° Tilt | |
| Modules ≤24 ft² | Ballasted: 70 mph · EarthBallast: 110 mph · AnchorSpike: 110 mph · Bolted: 110 mph. |
| Modules ≤32 ft² | Ballasted: 60 mph · EarthBallast: 95 mph · AnchorSpike: 95 mph · Bolted: 95 mph. |
| Snow Load (all angles) | ≤24 ft² modules: 100 psf; ≤32 ft² modules: 65 psf. |
| Row Spacing (O.C.) | 40° → 13′-2″ (4.0 m) on-center. (Other tilts: 15° 10′-6″; 20° 11′-2″; 25° 11′-10″; 30° 12′-6″; 35° 12′-10″.) |
| Frame Material Variants & Key Members | |
| Steel Frame (FSAB) | High-strength steel tubes (e.g., 50×50×1.6 mm uprights; 70×50×2.0 mm base); black zinc plated hardware. |
| Composite Frame (FSAC) | 2″×2″ and 3″×2″ composite tubes (4.5 mm walls) in uprights and base members. |
| Aluminum Frame (FSAA) | 6061-T6, 2″×2″×0.083″ tube members for uprights/base; steel clamp brackets. |
| Module Clamp | IR-F2 2 mm steel flange clamp (under-mount). |
| AnchorSpike Spacing | Hole-to-hole dimension: 45.25″. |
| Test Evidence | PNL ISO/IEC 17025 reports (uplift to 2,385 lbf; horizontal 645 lbf; compressive 2,410–2,950 lbf) on IR-30 platform with EarthBallast/AnchorSpikes. |
| Warranty | 25 Years |
About IntegraRack:
IntegraRack is a U.S.-based manufacturer of high-speed, ballasted solar racking systems for ground and roof installations. Their modular designs offer minimal-to-no concrete or HVAC penetrations, fast assembly, and certified performance in extreme wind/snow conditions.
