IMO TRUE DC Solar Isolator 2 String 65A SI65-PEL64R-4

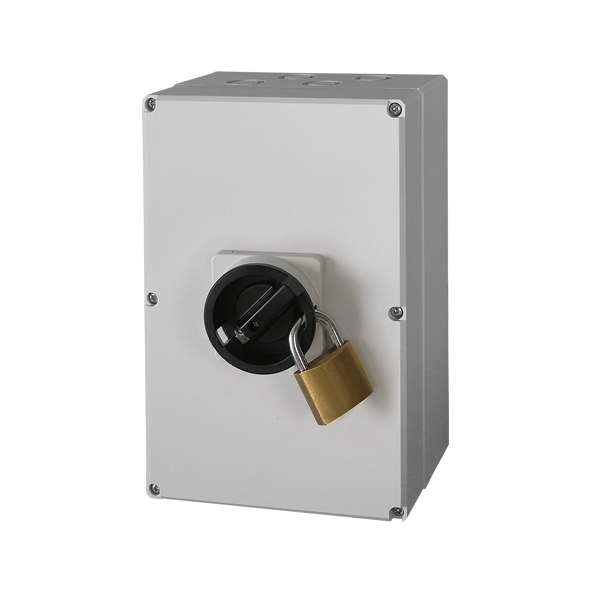

The SI65-PEL64R-4 is a 65 A, 4-pole enclosed DC solar isolator with a lockable rotary handle (IP67/NEMA 4X). Built on IMO’s TRUE DC architecture with operator-independent snap action and knife-edge contacts, it delivers fast arc suppression and reliable disconnection for high-power PV arrays up to 1500 Vdc.
Key Benefits
High Voltage/Current: Up to 65 A ratings across PV voltages when wired 4-poles-in-series, supporting modern 1000–1500 Vdc arrays.
Safety by Design: Snap-action mechanism with built-in arc chambers (≈3–5 ms typical arc suppression) and knife-edge contacts for low, stable resistance.
Weather-Tight Enclosure: Lockable rotary handle enclosure rated IP67 / NEMA 4X for harsh outdoor sites. :
Special Technology
TRUE DC Switching: Operator-independent mechanism ensures rapid make/break regardless of handle speed; polarity-independent design.
Flexible Pole Configurations: Supports 2, 4, 6, and 8-pole arrangements (this model: 4-pole), including 4S/4B/4T series wiring for higher voltage isolation.
Warranty
Manufacturer’s standard IMO warranty.
Best Uses
Residential & Commercial PV: String or array isolation at the inverter/combiner for 1000–1500 Vdc systems.
Outdoor Installations: Sites requiring sealed, lockable isolation (IP67/NEMA 4X).
Specifications Table
| Specification | Data |
|---|---|
| Model | SI65-PEL64R-4 |
| Product Type | Enclosed DC Solar Isolator, Lockable Rotary Handle |
| Poles | 4-pole (supports series wiring 4S/4B/4T for high-voltage PV) |
| Rated Current (base series) | 65 A (SI65 family) |
| Typical DC-PV1 Ratings (IEC 60947-3) | Up to 65 A through 500–1500 Vdc when 4 poles in series (SI65). |
| UL508i DC Ratings | SI65 listed across 350–1000 Vdc in series/parallel configurations (see SI65 rows). |
| Utilization Categories | DC-PV1 / DC-PV2, DC-21B/22B (per tables) |
| Enclosure / Protection | IP67 (front) / NEMA 4X, lockable rotary handle |
| Operating Temperature | Enclosed (PEL64R): −40 °C to +45 °C |
| Standards & Approvals | IEC/EN 60947-1/-3, UL 60947-1/-4-1, UL508i, CE, RCM (SI65 no CCC). |
| Terminal Ranges | M5 terminals, typical torque 22–25 lb-in; conductor ranges per table. |
| Notes | Derating curves and detailed wiring diagrams provided in SI guide; select pole configuration to match system voltage/current. |
About IMO:
IMO is a global manufacturer of high-quality electrical and automation products. With decades of experience, IMO provides reliable components such as solar isolators, relays, contactors, and control solutions designed for safety, performance, and efficiency across industrial, commercial, and renewable energy applications.
