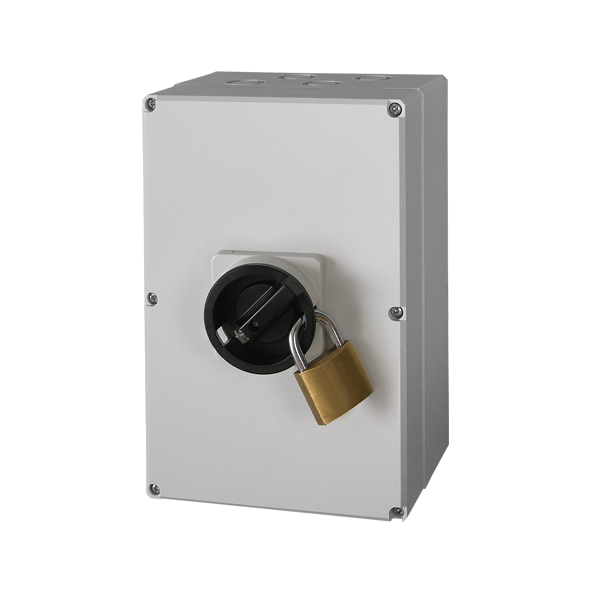

IMO Enclosed DC Switch IP66 8 pole SI16-PEL64R-8
MPN No: SI16-PEL64R-8
Expected ship date Feb 05 - 12
In Stock
$213.74
Regular price
$213.74
New
LESS THAN 50
IMO Enclosed DC Switch IP66 8 pole SI16-PEL64R-8
IMO Enclosed DC Switch IP66 8 pole SI16-PEL64R-8
Available
MPN No: SI16-PEL64R-8
Regular price
$213.74
Expected ship date Feb 05 - 12
We offer multiple secure payment options for your convenience
We offer multiple secure payment options for your convenience
Data Sheet
Regular price
$213.74
IMO Enclosed DC Switch IP66 8 pole SI16-PEL64R-8
MPN No:
SI16-PEL64R-8
Expected ship date Feb 05 - 12
IMO Enclosed DC Switch IP66 8 pole SI16-PEL64R-8
The SI16-PEL64R-8 is a compact, solar-rated enclosed DC switch disconnector designed for safe isolation of photovoltaic strings and arrays. With an 8-pole configuration and high DC voltage rating, this unit is ideal for multi-string PV applications requiring reliable load break capability and clear visible isolation.
Key Technology
-
1000V DC / 16A Load Break Rating
Designed to safely disconnect high-voltage DC circuits commonly used in modern PV systems. -
8-Pole DC Configuration
Supports multiple PV strings or conductors with simultaneous disconnection. -
Enclosed IP-Rated Housing
Provides protection against dust and moisture for long-term outdoor or enclosure mounting. -
Positive Isolation with ON/OFF Indication
Clear visual indication improves installer and maintenance safety. -
PV-Optimized Switching Design
Engineered for DC arc suppression and solar-specific operating conditions.
Best Uses
-
PV Combiner & String Isolation
Ideal for isolating multiple PV strings in combiner boxes. -
Inverter DC Disconnect
Provides safe service isolation between PV arrays and inverters. -
Residential & Commercial Solar
Suitable for rooftop and small commercial PV installations.
Installation Notes
-
Surface-mount design for installation in electrical enclosures or standalone applications.
-
Follow IMO torque specifications and conductor sizing guidelines.
-
Install in accordance with NEC, IEC, and local electrical codes.
Product Specifications
| Specification | Details |
|---|---|
| Manufacturer | IMO Precision Controls |
| Series | SI DC Switch Disconnector |
| Model / Part Number | SI16-PEL64R-8 |
| Rated Current | 16 A |
| Rated Voltage | 1000 V DC |
| Number of Poles | 8-Pole |
| Switch Function | DC load break / isolator |
| Enclosure | Enclosed, surface mount |
| Ingress Protection | IP65 (typ.) |
| Application | Solar PV DC isolation |
| Certifications | IEC 60947-3, UL 508, PV-rated DC switching |
About IMO:
IMO is a global energy solutions company specializing in advanced solar inverters, hybrid systems, and smart energy management technologies. Committed to innovation and sustainability, IMO delivers reliable, high-efficiency products for residential, commercial, and industrial applications worldwide.
Compact, High-Voltage DC Isolation for Solar PV
The IMO SI16-PEL64R-8 delivers dependable DC load-break performance, multi-pole flexibility, and rugged enclosure protection—making it a reliable choice for safe and compliant isolation in modern photovoltaic systems.
