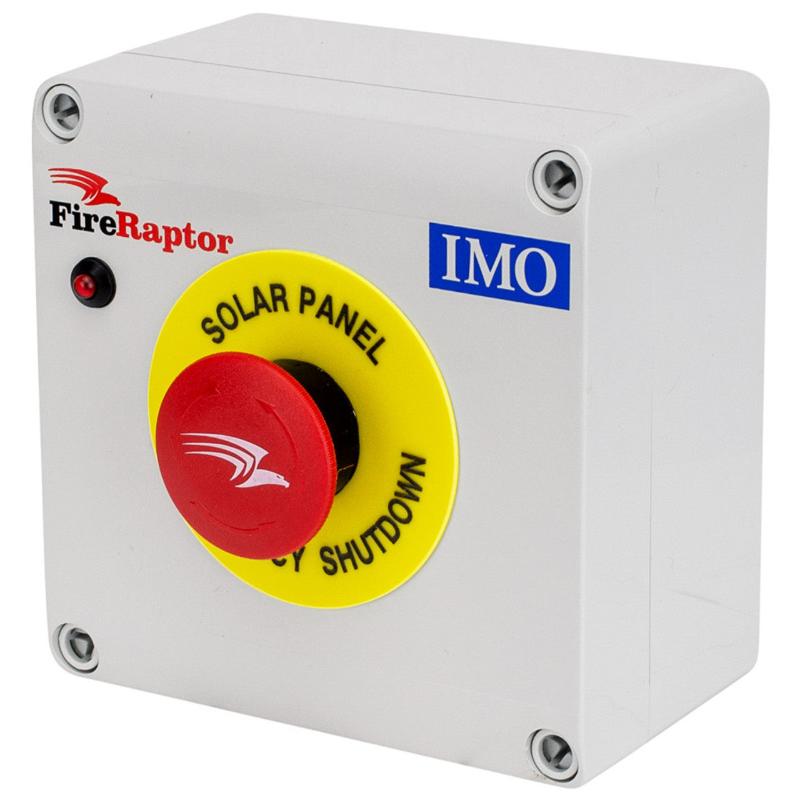

IMO Emergency Shutdown FRS-ESW1-610 Switch IP66
IMO Emergency Shutdown FRS-ESW1-610 Switch IP66
Delivery
Shipping disclaimer: US Solar Supplier works hard to offer the most competitive shipping rates possible. Shipping is auto calculated. If you have questions, let's work together directly! Please reach out to arrange case based logistics. Contact our team at sales@ussolarsupplier.com or by chat during business hours 9 am to 5 pm EST.
Payment
We offer multiple secure payment options for your convenience
IMO Emergency Shutdown FRS-ESW1-610 Switch IP66
FRS-ESW1-610
Specifications
IMO Emergency Shutdown FRS-ESW1-610 Switch IP66
Special Features
- Emergency Shutdown Actuator: Provides rapid, manual shutdown to 0V, operable from ground level for enhanced safety.
- Automatic Temperature and Power Loss Shutdown: Engages emergency shutdown automatically at temperatures above 85°C (185°F) or during external power loss.
- Durable Construction: Rated IP66 for weather resistance, with an IP68 (NEMA 4X) compliant housing, suitable for outdoor and harsh environments.
- Easy Installation: Designed for straightforward installation without setup, ideal for both retrofit and new installations.
Technology Overview
The FRS-ESW1-610 is part of IMO’s Solar PV series and serves as a reliable rapid shutdown solution for emergency situations. It features a Class 2 output with LED indicators for power status, and supports both hardwired and mobile communication for alarm signaling. This actuator is designed to meet NEC2014 and NEC2017 safety standards, providing critical functionality in solar PV systems.
Installation
The unit is designed for easy installation, with no setup required, and includes a 20-year manufacturer warranty for long-term reliability. It is compatible with the FRS-01 system and is suitable for integration in various solar PV configurations.
Applications
- Solar PV Systems: Ideal for systems requiring rapid, reliable shutdown options.
- Safety and Compliance: Suitable for projects needing to comply with NEC2014 and NEC2017 safety standards.
Specifications
| Feature | Details |
|---|---|
| Model Number | FRS-ESW1-610 |
| Input Voltage | 90-264VAC |
| Input Current (Nominal) | 200mA (115VAC) / 135mA (230VAC) |
| Input Frequency | 47-63Hz |
| Input Fuse | T1A (250VAC) |
| Output Voltage | 24VDC |
| Output Current | 420mA |
| Output Power | 10W |
| Power Supply Connector Wiring | 26-11 AWG |
| Power Supply Torque | 0.5 Nm / 4.5 lbin |
| DIN Terminal Connector Wiring | 26 - 10 AWG (uses Tyco connector 2x1mm²) |
| DIN Terminal Torque | 0.5-0.8 Nm / 4.5-7 lbin |
| Ambient Operating Temperature | -30°C to +40°C |
| Max Ambient Temperature | 40°C |
| Protection Rating | IP66, IP68 (NEMA 4X) |
| Dimensions | 4.92 x 2.95 x 4.92 in |
| Warranty | 20 years |
| Weight | 1.0 lb |
| Certifications | FCC, NEC2014, NEC2017 |
