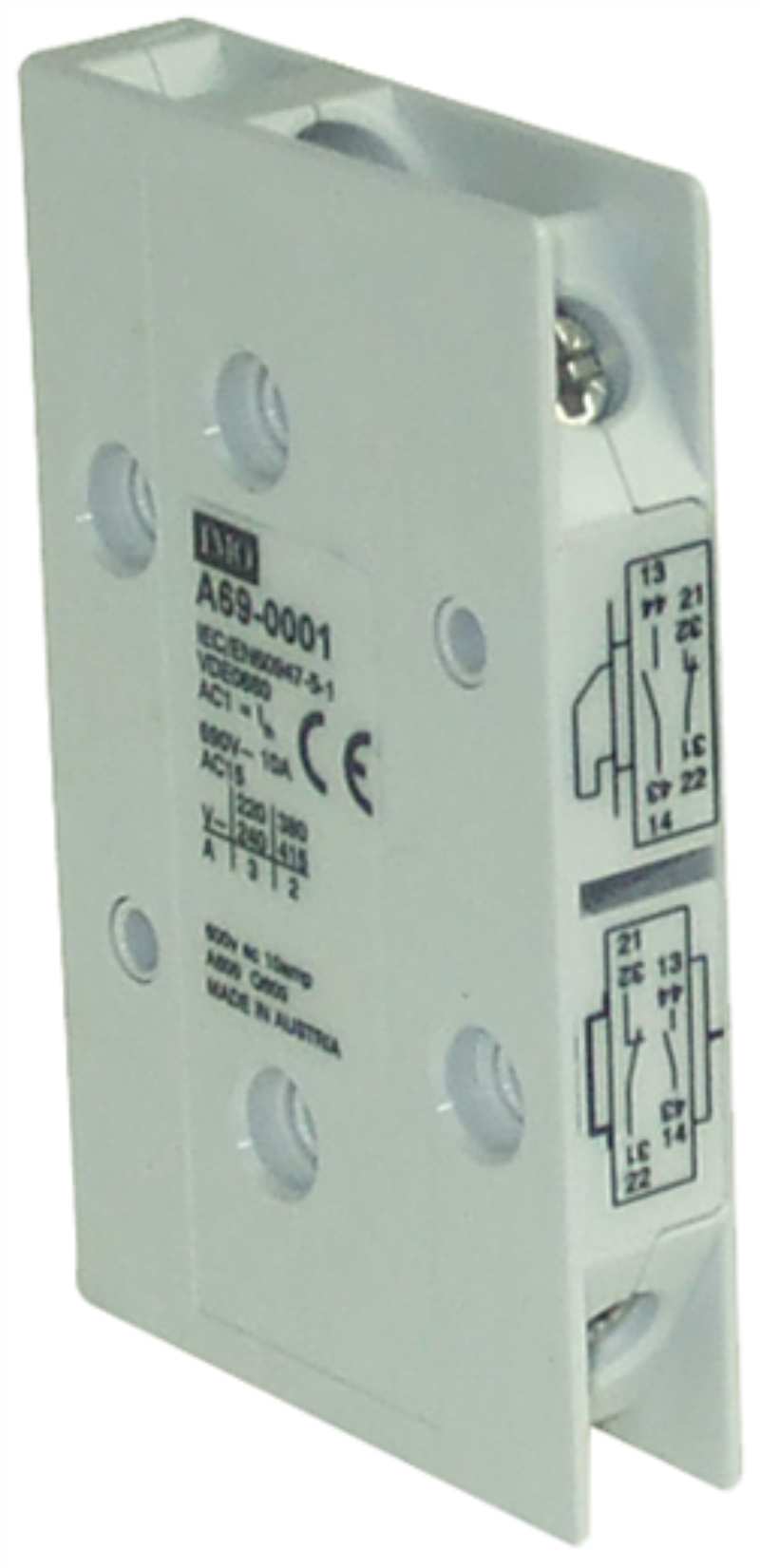

IMO Auxiliary Contact A69-0001 1 NO & 1 NC for 69 Series Disconnects
MPN No: A69-0001
Expected ship date Dec 06 - 13
In Stock
$17.44
IMO Auxiliary Contact A69-0001 1 NO & 1 NC for 69 Series Disconnects
IMO Auxiliary Contact A69-0001 1 NO & 1 NC for 69 Series Disconnects
Regular price
$17.44
LESS THAN 50
IMO Auxiliary Contact A69-0001 1 NO & 1 NC for 69 Series Disconnects
IMO Auxiliary Contact A69-0001 1 NO & 1 NC for 69 Series Disconnects
In Stock
MPN No: A69-0001
Regular price
$17.44
Expected ship date Dec 06 - 13
We offer multiple secure payment options for your convenience
We offer multiple secure payment options for your convenience
Data Sheet
Regular price
$17.44
IMO Auxiliary Contact A69-0001 1 NO & 1 NC for 69 Series Disconnects
MPN No:
A69-0001
Expected ship date Dec 06 - 13
In Stock
IMO Auxiliary Contact A69-0001 - 1 NO & 1 NC for 69 Series Disconnects
Key Features
- Reliable Performance: Provides 1 Normally Open (NO) and 1 Normally Closed (NC) contact for versatile switching applications.
- Compact Design: Easily integrates with IMO 69 Series Isolators for enhanced functionality.
- High Durability: Designed to withstand rigorous industrial and commercial use.
- Easy Installation: Mounts directly onto isolator switches without requiring additional tools.
- Compliant with Standards: Meets IEC and EN 60947 specifications for safety and reliability.
Applications
- Industrial Machinery: Enhances control in industrial systems by adding auxiliary switching functionality.
- Power Distribution: Monitors and controls additional circuits in electrical distribution panels.
- Automation Systems: Ideal for use in control circuits requiring secondary contact operations.
Installation Guidelines
- Mounting: Attach the auxiliary contact to the designated slot on IMO 69 Series Isolators.
- Wiring: Connect cables to the appropriate terminals according to the circuit configuration.
- Testing: Verify the contact operation using the system control interface.
About IMO Precision Controls
IMO Precision Controls is a trusted global provider of industrial and automation control products. With a commitment to innovation and quality, IMO delivers reliable solutions for power distribution, control, and monitoring needs.
Specifications
| Parameter | Details |
|---|---|
| Part Number | A69-0001 |
| Contact Configuration | 1 NO + 1 NC |
| Rated Thermal Current (Ith) | 10 A |
| Switching Capacity | AC15: 2.5A @ 240V, 1.5A @ 440V |
| Rated Voltage (Ui) | 690V |
| Short-Circuit Current | 3 kA |
| Maximum Short-Circuit Protection | 10 A (gL/gG fuse) |
| Connection | Suitable for 0.75–2.5 mm² cables |
| Dimensions | Refer to isolator datasheet |
| Compliance | IEC 60947-3, IEC 60947-5-1 |
