Runergy Hyperion 565W (Pallet of 31) Bifacial Made In USA Solar Panel HY-DH144N8-565
B35/+400/-200mm/RY01 565

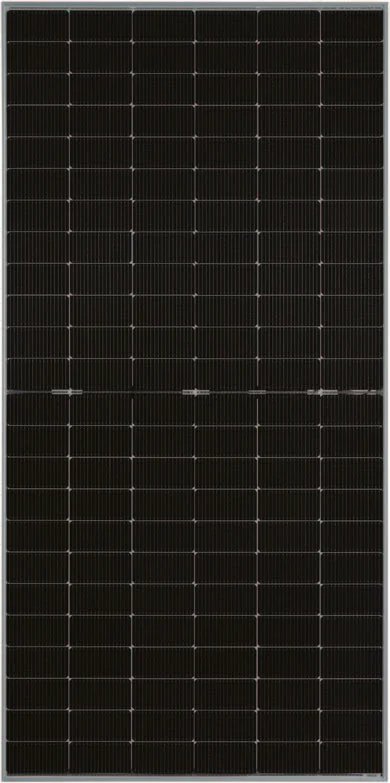

The Runergy HY-DH144N8-565 is a high-efficiency N-type bifacial dual-glass solar module from the Hyperion series, designed to deliver strong performance, durability, and long-term energy yield. Built with 144 half-cut N-type monocrystalline cells, this module offers improved efficiency, lower degradation, and enhanced performance in real-world conditions.
With 565W output and up to 22.6% module efficiency, this panel is engineered for high-performance solar installations. Its bifacial architecture enables additional rear-side energy gain, increasing total system output and improving overall energy harvest.
Key Technology
-
N-Type Monocrystalline Technology
Provides higher efficiency, improved low-light performance, and strong resistance to LID and LeTID degradation. -
Bifacial Dual-Glass Design
Captures additional energy from the rear side, increasing total energy yield and system performance. -
144 Half-Cut Cell Configuration
Enhances current flow, reduces resistive losses, and improves overall module reliability. -
High Efficiency Output
Delivers up to 22.6% efficiency for maximum power density. -
Low Degradation Rate
Only 1% first-year degradation and 0.40% annual degradation for consistent long-term performance. -
Excellent Thermal Performance
Low temperature coefficient of -0.31%/°C ensures better output in high-temperature environments. -
Robust Mechanical Strength
Rated for 5400 Pa snow load and 2400 Pa wind load for durability in harsh conditions.
Best Uses
-
Ground Mount Installations
Ideal for bifacial setups where rear-side gain can increase total system output. -
Rooftop Solar Systems
High efficiency and durability make it suitable for residential and commercial rooftops. -
High-Efficiency Solar Projects
Perfect for installations requiring strong long-term performance and low degradation.
Warranty
- Product Warranty: 12 Years
- Performance Warranty: 30-Year Linear Power Warranty
- First-Year Degradation: 1%
- Annual Degradation: 0.40%
- 30-Year Output: 87.4% retained power output
Product Specifications
| Specification | Details |
|---|---|
| Manufacturer | Runergy |
| Model | HY-DH144N8-565 |
| Series | Hyperion N-Type Bifacial Dual Glass |
| Cell Technology | N-Type Monocrystalline, Bifacial Dual Glass |
| Cell Configuration | 144 Half Cells (6 × 24) |
| Maximum Power (Pmax) | 565 W |
| Module Efficiency | Up to 22.6% |
| Maximum Power Voltage (Vmp) | 42.14 V |
| Maximum Power Current (Imp) | 13.41 A |
| Open Circuit Voltage (Voc) | 50.87 V |
| Short Circuit Current (Isc) | 14.19 A |
| Temperature Coefficient (Pmax) | -0.31% / °C |
| Maximum System Voltage | 1500 V |
| Maximum Series Fuse Rating | 30 A |
| Operating Temperature | -40°C to +85°C |
| Dimensions | 89.7 × 44.6 × 1.4 in |
| Weight | 72.1 lb |
| Front Glass | 2.0 mm semi-tempered AR glass |
| Back Glass | 2.0 mm semi-tempered glass |
| Frame | Anodized Aluminum Alloy |
| Junction Box | IP68 rated, 3 bypass diodes |
| Connector | RY01 or compatible |
| Output Cable | 4mm² (IEC) / 12 AWG (UL) |
| Wire Length | +400 / -200 mm or customized |
| Mechanical Load | 5400 Pa / 2400 Pa |
| Pallet Quantity | 31 pcs per pallet |
About Runergy:
Runergy is a global solar manufacturer focused on advanced N-type photovoltaic technologies. Its Hyperion series modules are engineered to deliver high efficiency, strong durability, and long-term energy yield across a wide range of installation environments.
High-Efficiency Bifacial Performance for Modern Solar Systems
The Runergy HY-DH144N8-565 combines N-type technology, bifacial energy gain, and durable dual-glass construction to deliver reliable, high-output performance for today’s solar installations.
