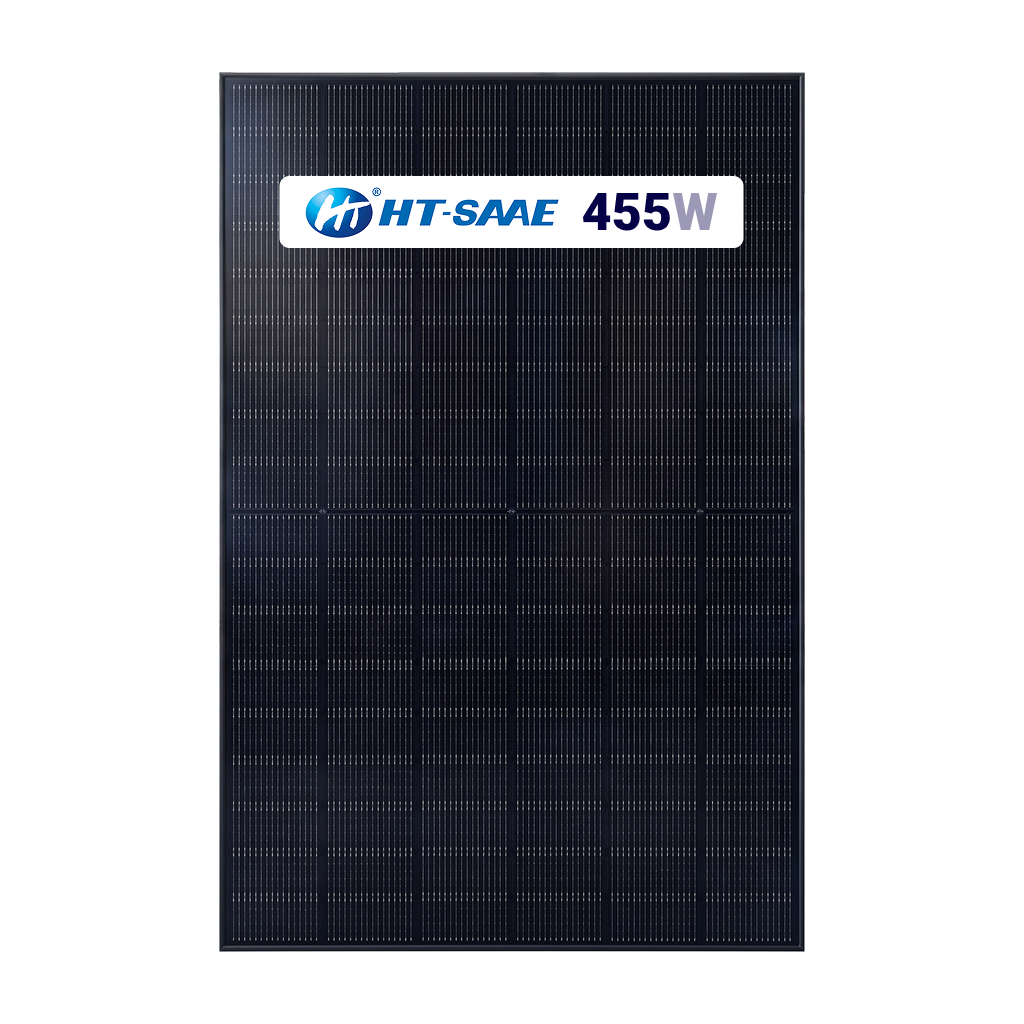

HT-SAAE 455W N-Type TOPCon Bifacial Solar Panels

Pallet of 36 | Dual Glass | HT54-18X(ND)-F

455W per Panel | 16.38kW DC per Pallet | 22.8% Module Efficiency
Build your solar array with 36 HT-SAAE 455W panels featuring N-type TOPCon cells, a black frame, and bifacial dual-glass construction. Sold by the full pallet.

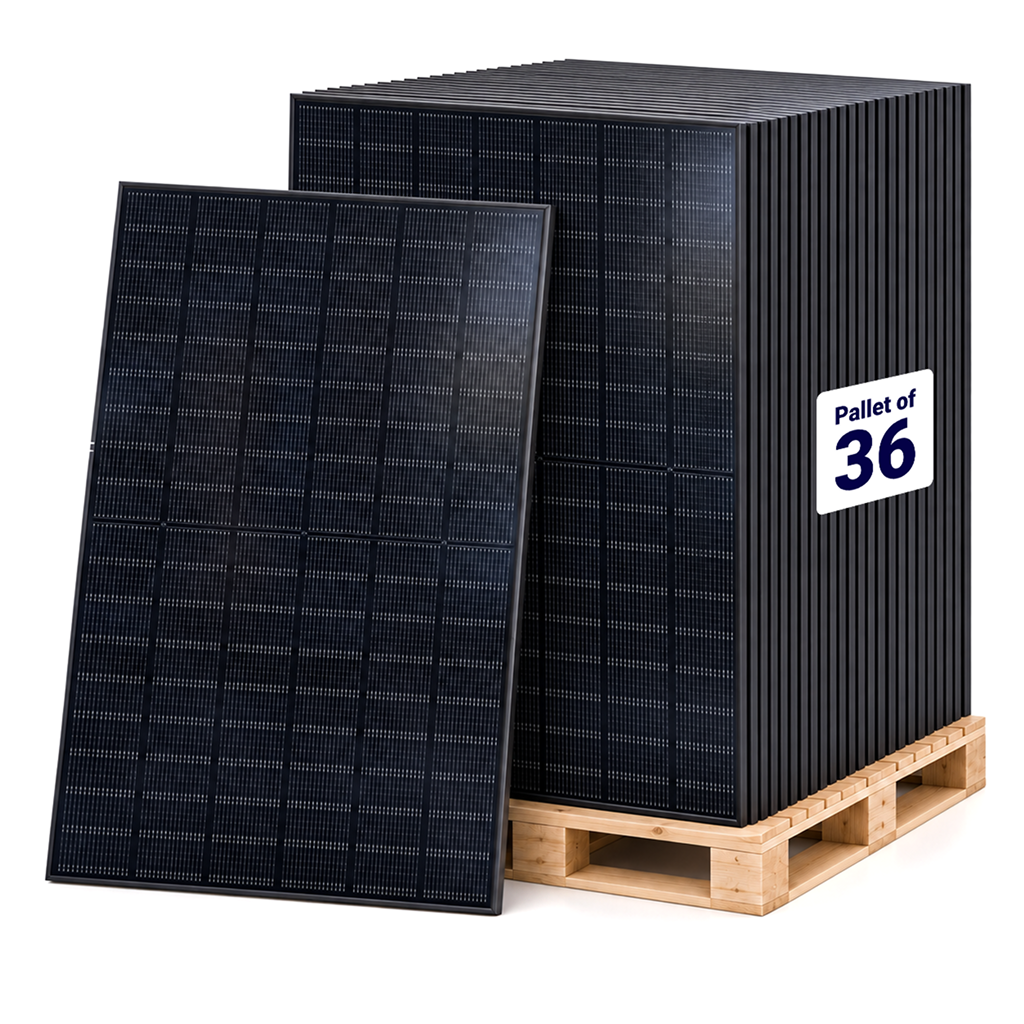

This Pallet Includes

  • 36 × HT-SAAE HT54-18X(ND)-F 455W solar panels
  • 455W front-side rated output per panel
  • 16,380W / 16.38kW total front-side rated DC capacity

Inverters, batteries, racking, and other installation equipment are sold separately.


More Solar Power from Your Available Space

The HT-SAAE MULTIWAY+ 455W panel combines 22.8% module efficiency with N-type TOPCon technology to deliver high output in a residential-friendly format. Each module measures approximately 69.37 × 44.65 inches and uses 108 half-cut monocrystalline cells.

Its black frame and dual-glass construction make it a practical option for rooftops, ground-mounted arrays, and compatible solar carports. Each pallet provides 16.38kW of front-side rated DC capacity for larger home systems and commercial projects.

The bifacial rear surface can capture reflected sunlight for additional production when the mounting arrangement allows light to reach both sides.


Product Highlights

  • 455W front-side rated power per panel
  • 36 panels per pallet for 16.38kW of rated DC capacity
  • 22.8% module efficiency
  • N-type TOPCon monocrystalline cells
  • 108 half-cut cells in a 6 × 18 layout
  • Bifacial dual-glass construction with a black frame
  • -0.29%/°C power temperature coefficient
  • 0 to +3% power tolerance
  • Designed to resist potential-induced degradation
  • IP68-rated junction box
  • 15-year product warranty
  • 30-year power output warranty

Perfect For

  • Residential rooftop solar installations
  • Ground-mounted home solar arrays
  • Commercial rooftops with compatible racking
  • Off-grid and battery-based solar systems
  • Solar carports and engineered canopy structures
  • Projects seeking high output from limited installation space

N-Type TOPCon Technology

The panel’s N-type TOPCon cells and half-cut layout support efficient power conversion while reducing internal electrical losses. Its -0.29%/°C power temperature coefficient describes how output changes as cell temperature rises above standard test conditions.

The module also incorporates resistance to potential-induced degradation, helping support long-term electrical performance when installed and operated within manufacturer requirements.


Bifacial Production from Both Sides

The 455W nameplate rating measures front-side output under standard test conditions. Reflected sunlight reaching the rear surface can contribute additional production beyond that rating.

Rear-side gains depend on mounting height, shading, row spacing, and the reflectivity of surrounding surfaces. Elevated ground-mounted systems and open canopy structures can provide more rear exposure than panels mounted close to a roof.

The listed bifaciality factor is 80% ±5%. This describes the rear side’s response relative to the front under comparable illumination; it does not mean the panel produces 80% more energy.


Dual-Glass Construction for Outdoor Use

Anti-reflective front glass and heat-strengthened rear glass protect the cells on both sides. The module features a black frame, an IP68-rated junction box, and an operating temperature range of -40°F to 185°F.

Listed mechanical load ratings are 5,400Pa on the front and 2,400Pa on the rear. Applicable load capacity depends on the approved mounting configuration and installation instructions.


Product Specifications

Specification Details
Manufacturer HT-SAAE / HT-SOLAR
Product Series MULTIWAY+
Model HT54-18X(ND)-F, 455W
Rated Power per Panel 455W at STC
Panels per Pallet 36
Total Rated Power per Pallet 16,380W / 16.38kW DC at STC
Module Efficiency 22.8%
Cell Technology N-type monocrystalline TOPCon
Cell Configuration 108 half-cut cells, 6 × 18 layout
Module Design Bifacial, dual glass
Power Tolerance 0 to +3%
Maximum Power Voltage (Vmp, STC) 32.8V
Maximum Power Current (Imp, STC) 13.90A
Open-Circuit Voltage (Voc, STC) 39.1V
Short-Circuit Current (Isc, STC) 14.72A
Maximum System Voltage 1,500V DC (IEC), subject to system and installation requirements
Maximum Series Fuse Rating 25A
Bifaciality Factor 80% ±5%
Maximum Power at NMOT 346W
Maximum Power Voltage at NMOT 31.5V
Maximum Power Current at NMOT 10.98A
Open-Circuit Voltage at NMOT 37.5V
Short-Circuit Current at NMOT 11.86A
Nominal Module Operating Temperature 43 ±2°C
Power Temperature Coefficient -0.29%/°C
Voc Temperature Coefficient -0.25%/°C
Isc Temperature Coefficient +0.046%/°C
Dimensions per Panel (L × W × H) 69.37 × 44.65 × 1.18 in
Weight per Panel 55.1 ±1.1 lb
Front Glass Anti-reflective coated glass
Rear Glass Heat-strengthened glass
Frame Black frame
Junction Box IP68
Connectors Verify actual supplied connector and approved mating connector
Cable Cross-Section 4mm² (IEC)
Standard Cable Lengths Positive 200mm / negative 300mm, or customized
Operating Temperature -40°C to 85°C / -40°F to 185°F
Listed Front-Side Load 5,400Pa, subject to approved mounting configuration
Listed Rear-Side Load 2,400Pa, subject to approved mounting configuration
Product Warranty 15 years, subject to manufacturer terms
Power Output Warranty 30 years, subject to manufacturer terms
Referenced Module Standards IEC 61215 / IEC 61730
Purchase Quantity Full pallet of 36 panels

Mounting and Equipment Compatibility

Each panel measures approximately 69.37 × 44.65 inches and weighs 55.1 pounds. Select racking that accommodates the module dimensions, frame thickness, approved clamp locations, and site-specific wind and snow loads.

String inverters, optimizers, microinverters, and charge controllers must support the panel’s electrical characteristics. System design should account for cold-weather voltage increases and additional current from rear-side production.

This listing includes solar panels only. Racking, inverters, batteries, extension cables, and other installation materials are sold separately. Confirm the supplied connector type, cable lengths, and equipment compatibility before ordering accessories.


Frequently Asked Questions

How many panels are included in this pallet?

Each pallet contains 36 HT-SAAE 455W solar panels, providing 16,380W / 16.38kW of total front-side rated DC capacity.

Are these panels all black?

This listing specifies a black frame with bifacial dual-glass construction. A black frame does not necessarily mean the entire panel has an all-black appearance.

Does bifacial production add to the 455W rating?

Yes. The 455W rating measures front-side output under standard test conditions. Reflected light reaching the rear can contribute additional production. Actual gains depend on installation height, shading, spacing, and surrounding surfaces.

Can these panels be installed on a home?

They can be used in residential systems when the mounting structure, electrical design, and applicable installation requirements support the module. Each panel measures approximately 69.37 × 44.65 inches.

Can I use these panels with microinverters?

Potentially, depending on the specific microinverter. Check its MPPT voltage range, maximum input voltage, operating current, and short-circuit current limits against the panel specifications, including temperature adjustments and bifacial current gains.

Can these panels be used in an off-grid system?

Yes, when paired with a compatible charge controller or inverter and an appropriately designed battery system. Confirm the permitted string configuration and electrical limits before installation.

Do these panels provide power during an outage?

Outage operation depends on the complete system. Solar panels alone do not provide home backup power. A compatible backup inverter, battery storage, and any required transfer equipment are needed for a battery-based backup system.

What warranty is included?

The listing specifies a 15-year product warranty and a 30-year power output warranty. Coverage is subject to the manufacturer’s applicable terms and installation requirements.

Are racking and installation accessories included?

No. This listing includes 36 solar panels. Mounting equipment, inverters, batteries, and other installation materials are sold separately.

Can I purchase fewer than 36 panels?

This listing is sold by the full pallet of 36 panels. Contact our team for help finding products with smaller minimum quantities.


About HT-SAAE

HT-SAAE, also known as HT-SOLAR, manufactures photovoltaic modules for residential, commercial, and larger solar installations. Its product range includes N-type TOPCon modules with half-cut cells and bifacial dual-glass construction.
