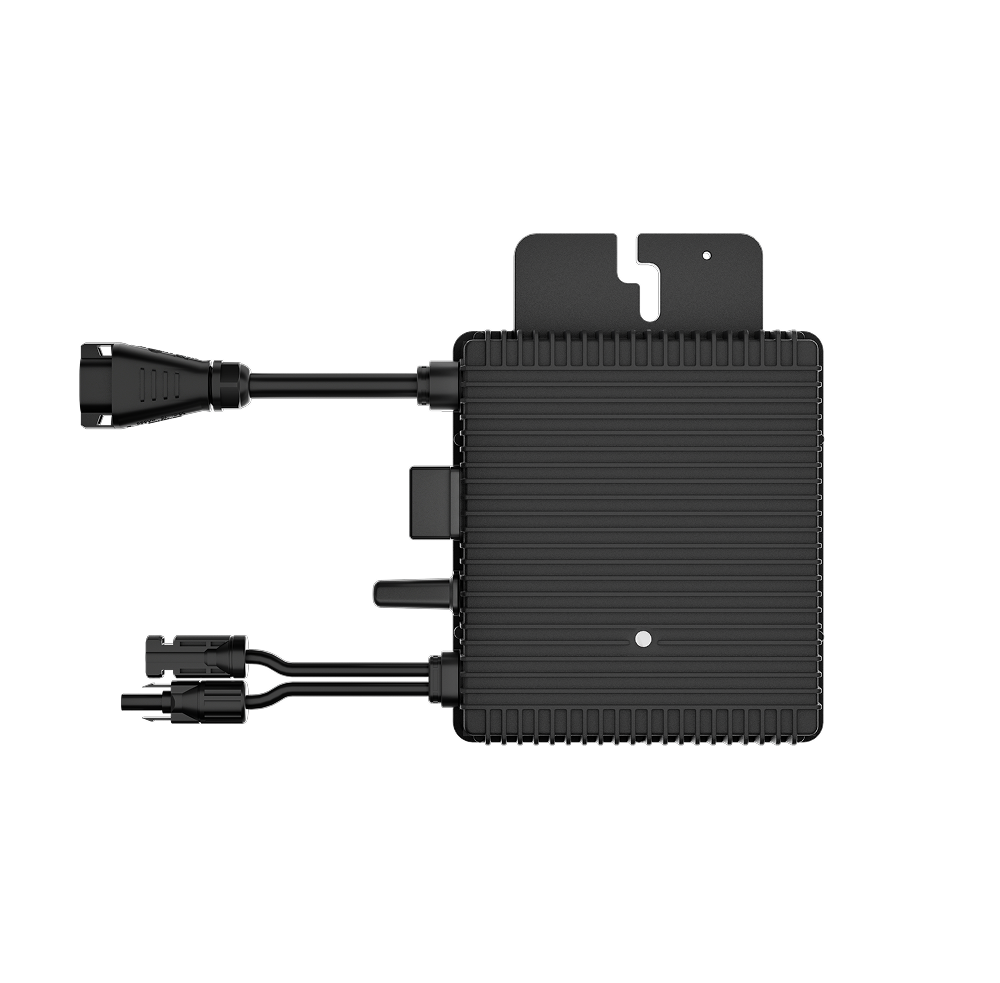

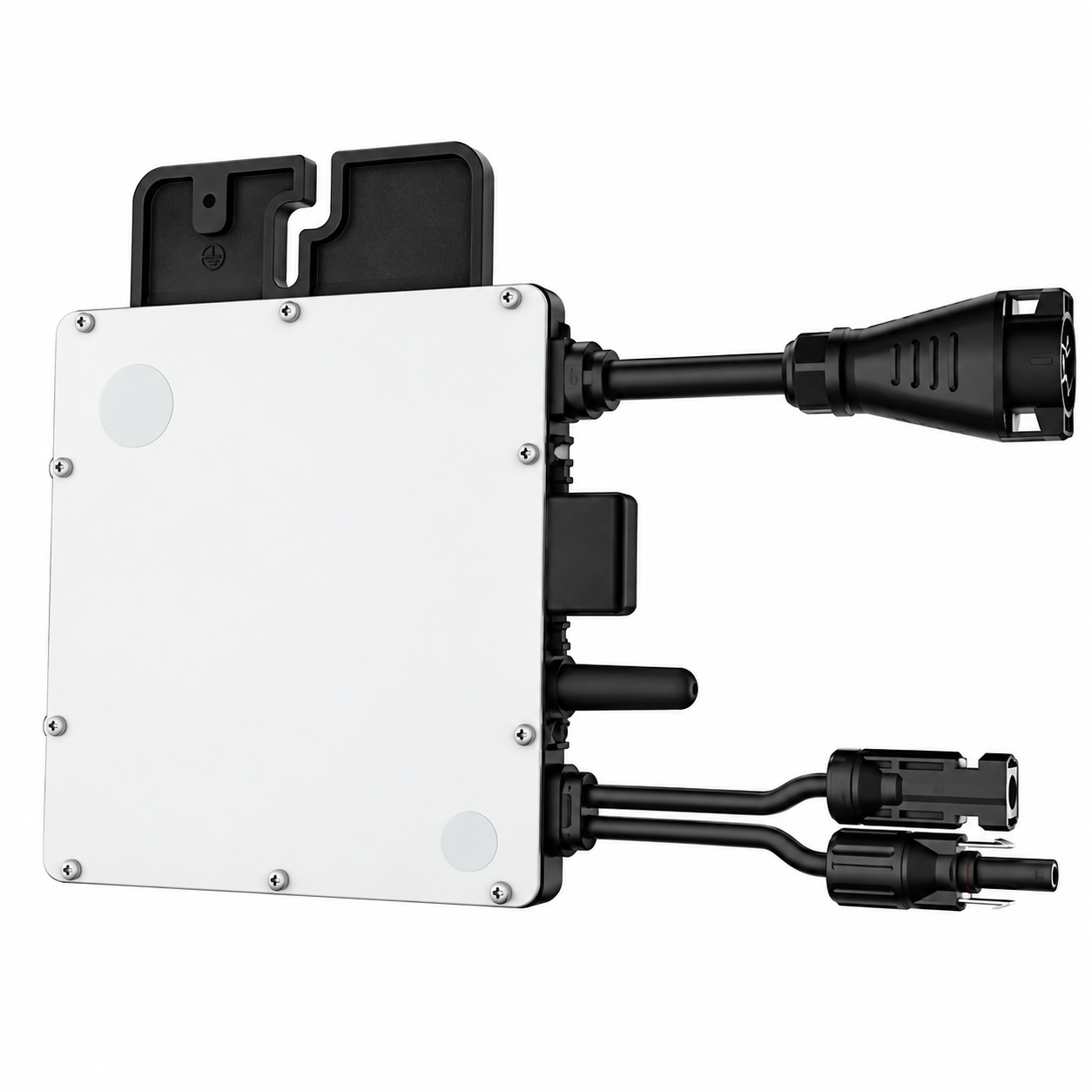

Hoymiles HiFlow Pro LV 360W Plug-In Microinverter

1-in-1 120V Microinverter with Built-In Wi-Fi & Bluetooth | HMS-360-1WM-LV

Simple plug-in solar with built-in monitoring. The Hoymiles HMS-360-1WM-LV is a 360VA, 1-in-1 plug-in microinverter designed for small residential solar installations. It combines a single PV input and MPPT with 120V nominal AC output, built-in Wi-Fi and Bluetooth, and S-Miles Home app connectivity without requiring an additional DTU.

The Hoymiles HiFlow Pro LV HMS-360-1WM-LV provides a compact way to convert power from a single compatible solar module into 120V AC. Hoymiles designed the HiFlow Pro LV series for residential applications including balconies, terraces and gardens, with a plug-and-play architecture intended to simplify system installation.

Built-in 2.4 GHz Wi-Fi and Bluetooth allow local and remote commissioning and direct communication without a separate DTU. The microinverter works with the S-Miles Home app for system monitoring and smart home solar system customization.

Key Features

• 360VA rated AC output
• 120V nominal AC output with a specified 90V to 150V operating range
• 1-in-1 design with one PV input and one MPPT
• Built-in 2.4 GHz Wi-Fi + Bluetooth
• No additional DTU required for direct communication
• S-Miles Home app interface for monitoring and system functionality
• Advanced MPPT algorithm designed to improve solar energy harvest
• Plug-and-play design for simplified installation
• Integrated rapid shutdown
• Galvanically isolated high-frequency transformer
• NEMA 6 / IP67 outdoor-rated enclosure
• Natural convection cooling with no fans
• UL 1741, UL 3700 and IEEE 1547 compliance

Designed for One Solar Panel

The HMS-360-1WM-LV features one independent MPPT and one PV input, making it a straightforward microinverter option for single-panel plug-in solar installations.

Hoymiles specifies a commonly used solar module power range of 280W to 470W+ for the HMS-360-1WM-LV. The inverter supports a maximum DC input voltage of 60V, a 16V to 60V MPPT voltage range and a maximum input current of 14A.

Its 360VA rated AC output makes it particularly suited to compact solar installations where a full-size multi-panel microinverter is unnecessary.

Built-In Wi-Fi & Bluetooth

Unlike systems that require a separate communications gateway or DTU, the HiFlow Pro LV incorporates Wi-Fi and Bluetooth directly into the microinverter.

This enables direct communication and commissioning while providing access through the S-Miles Home app. Hoymiles specifically designed this functionality to simplify setup and allow users to monitor and customize their smart home solar system.

Plug-In AC Connection

The HMS-360-1WM-LV is part of Hoymiles' HiFlow Pro LV plug-in microinverter family. The manufacturer specifies a Type B plug  (standard North American 3-prong grounded plug used with common 120V receptacles) and Flex-S3 field connector with 14 AWG cable.

Important: Plug-in solar requirements vary by state, utility, and local authority. A plug-in connection should not be assumed to be permitted simply because the inverter is equipped for plug-in operation. Verify all applicable electrical code, permitting, utility, interconnection and circuit requirements before installation.

Product Specifications

Safety & Outdoor Design

The HMS-360-1WM-LV uses a galvanically isolated high-frequency transformer and includes integrated rapid shutdown. Hoymiles states that the isolated transformer and rapid shutdown functionality improve system safety and help eliminate arc-fault risk.

The enclosure carries a NEMA 6 / IP67 outdoor rating and is designed to operate across temperatures from -40°F to 149°F. Fanless natural-convection cooling eliminates the need for mechanical cooling fans.

Compliance

According to the Hoymiles North American specification sheet, the HMS-360-1WM-LV is listed as compliant with:

• UL 1741
• UL 3700
• IEEE 1547

The HiFlow Pro LV series also meets ETSI EN 303 645 cybersecurity standards for enhanced privacy protection.

Frequently Asked Questions

Specifications are based on the Hoymiles North American HiFlow (360-500) Pro LV REV1.1 specification sheet. Nominal voltage and frequency ranges may vary depending on local requirements. Always confirm solar module compatibility and applicable installation, electrical, utility and interconnection requirements before installation.
