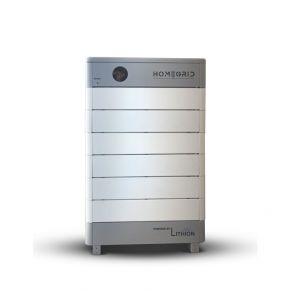

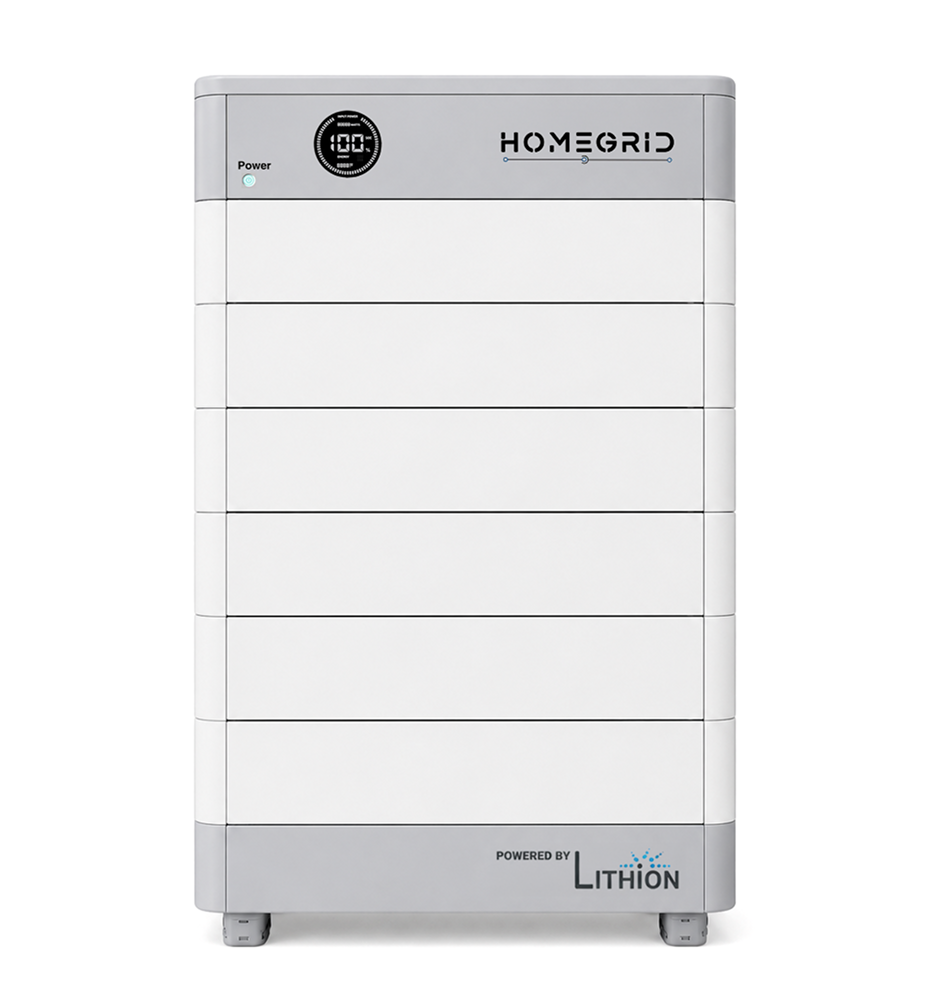

HomeGrid Stack'd 28.8 kWh - (6) 48V Standard All Weather Lithium Battery + BMS and Base HG-6-Stack

Model: HG-6-Stack • Battery Modules: Standard All-Weather 48V LFP • System Includes: (6) Modules + BMS + Base

The HomeGrid Stack’d 28.8 kWh (HG-6-Stack) is a rugged, high-capacity energy storage tower engineered for homes and small commercial applications that demand reliable whole-home backup, off-grid capability, or daily load-shifting from solar. With six 48V lithium iron phosphate (LFP) modules stacked into a compact, all-weather-rated tower, this system delivers outstanding safety, long cycle life, and high usable energy in a small footprint.

Designed for easy installation and seamless scaling, the Stack’d platform integrates with top hybrid inverter brands and is built to perform in a wide temperature range — making it ideal for garages, basements, utility rooms, and protected outdoor locations.

All-Weather Lithium Iron Phosphate (LFP) Chemistry

HomeGrid’s Standard All-Weather modules use premium LFP cells for enhanced thermal stability, non-flammable design, and an exceptionally long cycle life. Ideal for varied climates where temperature swings are common.

Modular Stack’d Tower Design

The six modules stack vertically onto a steel base and communicate through the included BMS. This design provides a compact footprint, simple field installation, easy serviceability, and the ability to expand storage as needed.

Advanced Battery Management System (BMS)

The integrated BMS intelligently monitors charging, cell balancing, thermal protection, and inverter communications via CAN/RS485. The system actively prevents over-voltage, over-current, and over-temperature scenarios.

High Continuous & Peak Power Output

When paired with compatible hybrid inverters, the HG-6-Stack can support large appliance loads including HVAC, well pumps, refrigeration, and critical household circuits.

Scalable System Architecture

Combine multiple Stack’d towers to build 50 kWh, 80 kWh, or larger storage banks for residential or light-commercial solar installations.

Warranty

• 10-Year Manufacturer Warranty

• Up to 6,000 Cycles depending on depth of discharge and environment

• Performance Guarantee: ≥70% retained capacity at end of warranty
  HomeGrid warranties cover the battery cells, modules, BMS, and workmanship under normal operating conditions.
