HomeGrid 2 Modules Stack'd 9.6 kWh, 9.6 kW 48V lithium Iron Battery

HomeGrid 2 Modules Stack'd 9.6 kWh, 9.6 kW 48V lithium Iron Battery

Regular price $7,600
Sale price $7,600 Regular price

HomeGrid 2 Modules Stack'd 9.6 kWh, 9.6 kW 48V lithium Iron Battery

HomeGrid 2 Modules Stack'd 9.6 kWh, 9.6 kW 48V lithium Iron Battery

No reviews
Regular price $7,600
Sale price $7,600 Regular price
View full details
Description
Questions
Reviews
Default manufacturer logo
Manufacturer
HomeGrid
Weight
304 lb
Dimension
(LxWxH): 15.75 x 29 x 25.25 inches

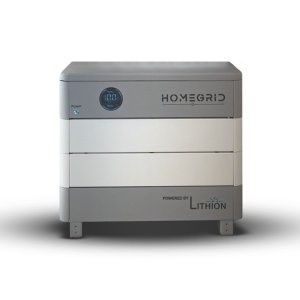

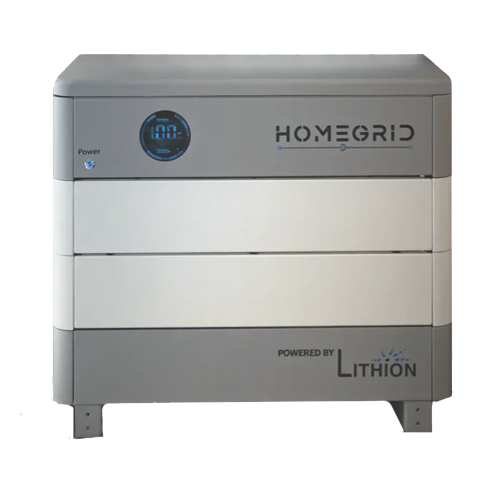

HomeGrid Modular Home Battery

Unlock the power of a home battery that's flexible enough to adapt to your needs. The HomeGrid modular system offers units that increase in 4.8 kWh increments, providing a total capacity range between 9.6 and 38.4 kWh per Stack. The design ensures effortless servicing and provides potential for future expansion. The system boasts a continuous output of up to 15 kW and can surge to 24 kW for a brief 10 seconds. True full-home backup is now a reality, achievable with a mere 30-60 minute installation.

For those thinking of expanding or upgrading their battery capacity, it's essential to install additional battery modules before the 10-year mark from the initial setup. Thanks to Homegrid’s active module balancing within its BMS (Battery Management System), there's no need to match the voltage of the modules when adding to an existing bank. The BMS automatically takes care of balancing. However, it's essential to update the firmware on original modules to align with the new ones. Each BMS base by Homegrid can accommodate 8 modules or a Stack, and one can add up to 15 stacks in parallel.

In regions where temperature concerns might be a challenge, Homegrid provides heated batteries. They recommend not mixing these heated modules with non-heated ones. If uncertain about the need for heated modules, please give us a call for guidance.

Features:

  • Modular: Want to start modestly and grow later? The HomeGrid Stack’d Series empowers you to expand capacity, allowing for up to 8 modules in each stack, translating to a range from 9.6 kWh to 38.4 kWh per unit. Up to 10 Stacks can be run in parallel.

  • Whole-Home Backup: Many competitors might promise whole-home backup, but few can support central A/C and large appliances. With the HomeGrid Stack’d Series' surge capacity of up to 16.8 kW and continuous power of 14.4 kW, HomeGrid can back up everything in your home.

  • Safety: Safety is paramount. HomeGrid utilizes the lithium-iron-phosphate battery technology combined with a 48v low voltage system and IP55 water/dust resistance to ensure one of the safest batteries available. Their proprietary BMS ensures the battery's optimal health, and they confidently offer a 10-year, full-refund warranty.

Bonus: The package includes a Canbus communication cable, enabling seamless connection between the Sol-Ark inverter and the Homegrid battery bank.

Specifications:

  • Total Energy: 9.6kWh
  • Continuous Power Output: 9.6kW
  • Capacity: 200Ah
  • Nominal DC Voltage: 48V
  • DC Voltage Range: 46-56V
  • Enclosure Rating: IP55
  • Dimensions: 29" x 15.75" x 25.25"
  • Weight: 304 lbs
  • Warranty: 10 years

      For a more detailed look into the product, check the

      SPECIFICATION SHEET.
