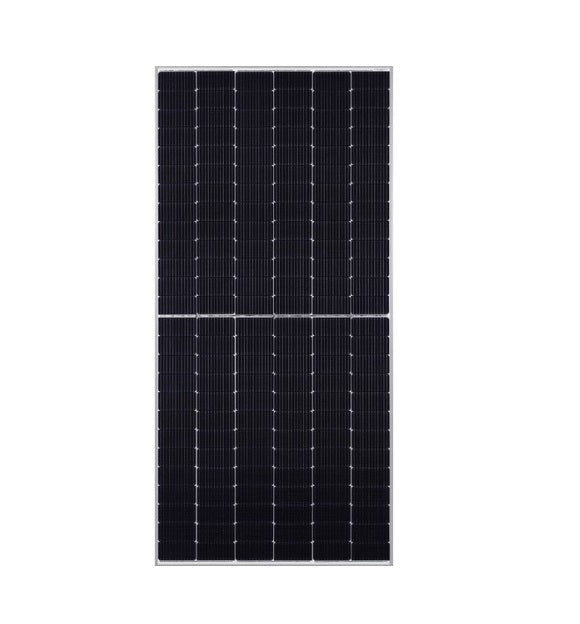

Hanwha QCELLS 490W Q.PEAK DUO XL-G10.3/BFG Silver Frame

Hanwha QCELLS 490W Q.PEAK DUO XL-G10.3/BFG Silver Frame

Regular price $225
Sale price $225 Regular price
New
390 IN STOCK
Leave a Review

MPN No: Q.PEAK DUO XL-G10.3/BFG 490

Hanwha QCELLS 490W Q.PEAK DUO XL-G10.3/BFG Silver Frame

Hanwha QCELLS 490W Q.PEAK DUO XL-G10.3/BFG Silver Frame

Regular price $225
Sale price $225 Regular price

1
2
3
4
5
6

View full details
.PDF
Datasheet
Description
Questions
Reviews
Manufacturer
Hanwha Q Cells
Weight
64.2 lb
Dimension
(LxWxH): 87.2 x 41.1 x 1.38 inches

Hanwha QCELLS 490W Q.PEAK DUO Bifacial Solar Panel XL-G10 (Black on Silver)Ā

490 WP | 156 Cells

29 Panels Per PalletĀ

21.2Ā % Maximum Module Efficiency

Ships in 7 Business Days

Introducing the Hanwha 490W Bifacial Solar Panel Q.PEAK DUO XL-G10, a cutting-edge solution for efficient solar energy generation. This high-performance solar panel is designed to provide exceptional power output and reliability.

Graph with increasing barsĀ Ā Enhanced Efficiency and Performance

  • Bifacial energy yield gain of up to 20 %: Bifacial Q.ANTUM solar cells with zero gap cell layout make efficient use of light shining on the module rear-side for radically improved LCOE.
  • Low electricity generation costs:Ā Q.ANTUM DUO Z combines cutting edge cell separation and innovative wiring with Q.ANTUM Technology for higher yield
    per surface area, lower BOS costs, higher power classes,
    and an efficiency rate of up to 21.2%.

Special Features

  • Bifacial technology for increased energy yield
  • High power output of 490W
  • Durable and weather-resistant design
  • Optimized for maximum efficiency
  • Compatible with various mounting systems

Badge with a check showing qualityĀ Ā Unmatched Quality and Durability

      • Pioneering Quality Standards: Hanwha Q CELLS leads the industry as the first to exceed the stringent ā€œQuality Controlled PVā€ standards by TƜV Rheinland, offering unparalleled reliability and longevity.
      • Robust Build for Extreme Conditions: High-tech aluminum alloy frame protects from damage, enables use of a wide range of mounting structures and is certified regarding IEC for high snow (5400 Pa) and wind loads (2400 Pa).

Ā  A box with warranty in it saying 25 yearsĀ Ā Comprehensive Warranty and Protection

      • Advanced Protective Technologies: Long-term yield security with Anti LeTID Technology, Anti PID Technology2, Hot-Spot Protect.
      • Performance Guarantee: Double glass module design enables extended lifetime with 12-year product warranty and improved 30-year performance warranty.

Ā

Why Choose Hanwha QCELLS Q.PEAK DUO XL-G10.3?

This solar panel series is designed for optimal energy generation and long-term reliability. Assembled in the USA and built with Q.ANTUM DUO Z technology, these panels offer superior performance for any large or small solar project. They are perfect for reducing energy costs while maximizing efficiency, whether for commercial, industrial, or residential use.

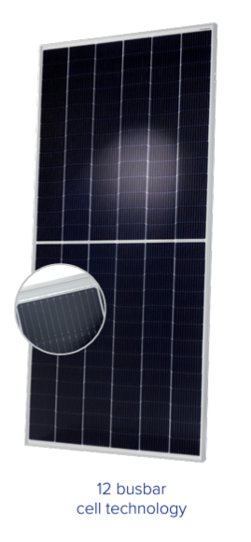

  • Enhanced Technology: Q.ANTUM DUO Z cell technology increases efficiency by minimizing power loss between cells.
  • Reliability: Built to last, with robust warranties and low degradation rates to protect your investment.
  • Versatility: Ideal for a range of installations, from residential homes to large-scale solar farms.

Product Specifications:

Product MPN Q.PEAK DUO BLK XL-G10.3 490W
Manufacturer Hanwha Q CELLSĀ
Wattage 490 W
Outer Dimensions (Include Pallet) 87.2 in Ɨ 41.1 in Ɨ 1.38 in (including frame)
(2216 mm Ɨ 1045 mm Ɨ 35 mm)
Approx. gross weight (full box) 844 kg (1861 lbs)
Linear Performance Warranty 84.95% of Nominal Power up to 30 Years
Product Warranty 12 Years
Efficiency % 21.2%
Cell Type Mono-crystalline
Frame color (black, silver, etc.) Black on Silver
BrandĀ  Hanwha QCELLSĀ
ApplicationĀ  Residential, Commercial, Industrial
CertificationĀ  UL 61730, CE-compliant, IEC 61215:2016, IEC 61730:2016Ā
Open Circuit Voltage Voc(V) 53.63 V
Short Circuit Current Isc(Amp) 11.16 A
Maximum Power Voltage Vmp(V) 45.63 V
Maximum Power Current Imp(A) 10.63A
Maximum System Voltage VDC (IEC/UL) 1500
Temperature coefficient of Power Pmax %/Ā°C -0.34%/Ā°C
Temperature coefficient of Voc %/Ā°C -0.27%/Ā°C
Temperature coefficient of Current Isc %/Ā°C +0.04%/Ā°C
Normal Module Operating Temperature (NMOT) Ā°C 43Ā°C Ā± (3Ā°C)
Output Cable [mmĀ²-(IEC) / 12AWG (UL)] 4 mmĀ² Solar cable
Cable Length 1ā‰„ 55.1 in (1400 mm), (āˆ’) ā‰„ 55.1 in (1400 mm)
Connector Type StƤubli MC4, StƤubli MC4-Evo2, Hanwha Q CELLS HQC4, IP68
Piece per Pallet 29


Installation and Compatibility

The installation process is streamlined, and the Q.PEAK DUO XL-G10.3 is compatible with various solar energy systems. Whether for residential or commercial use, this solar panel seamlessly integrates into different setups, providing flexibility and ease of installation.

Ā

Frequently Asked Questions:

Q: What is the power output of the Hanwha QCELLS Q.PEAK DUO XL-G10.3?
A: The panel delivers 490W of power, making it a top-tier option for maximizing energy production.

Ā

Q: How does the bifacial technology work?
A: The bifacial design allows the panel to absorb sunlight from both sides, increasing overall energy output by up to 20%, especially in reflective environments.

Ā

Q: Are these panels suited for harsh weather conditions?
A: Absolutely! These panels are built to withstand strong winds (up to 2400 Pa) and heavy snow loads (up to 5400 Pa), ensuring reliable performance in any environment.

Ā

Q: Why is it important that these panels are assembled in the USA?
A: US assembly ensures premium quality, supports domestic manufacturing, and reduces lead times for faster delivery and installation.

Ā

Q: Are these panels eligible for the domestic content credit?
A: Yes! These Hanwha QCELLS 490W panels qualify for the domestic content credit, providing additional savings for your solar installation.

Ā

Q: What warranties come with these panels?
A: Hanwha QCELLS offers a 12-year product warranty and a 30-year linear performance warranty, protecting your systemā€™s efficiency over the long term.

Q: Can these panels help lower my energy costs?
A: Yes! The high efficiency of the 490W panels allows you to generate more electricity per square foot, significantly reducing energy bills and speeding up your return on investment.

Ā

Q: Are these panels in stock and ready to ship?
A: Yes! These Hanwha QCELLS 490W panels are in stock and ready to ship from our Indiana warehouse, ensuring quick delivery and installation.
