Hanersun 445W HiTouch5N Bifacial N-Type TOPCon Full Black Solar Panel HN18N-54HT445W
BloombergNEF Tier 1 Manufacturer

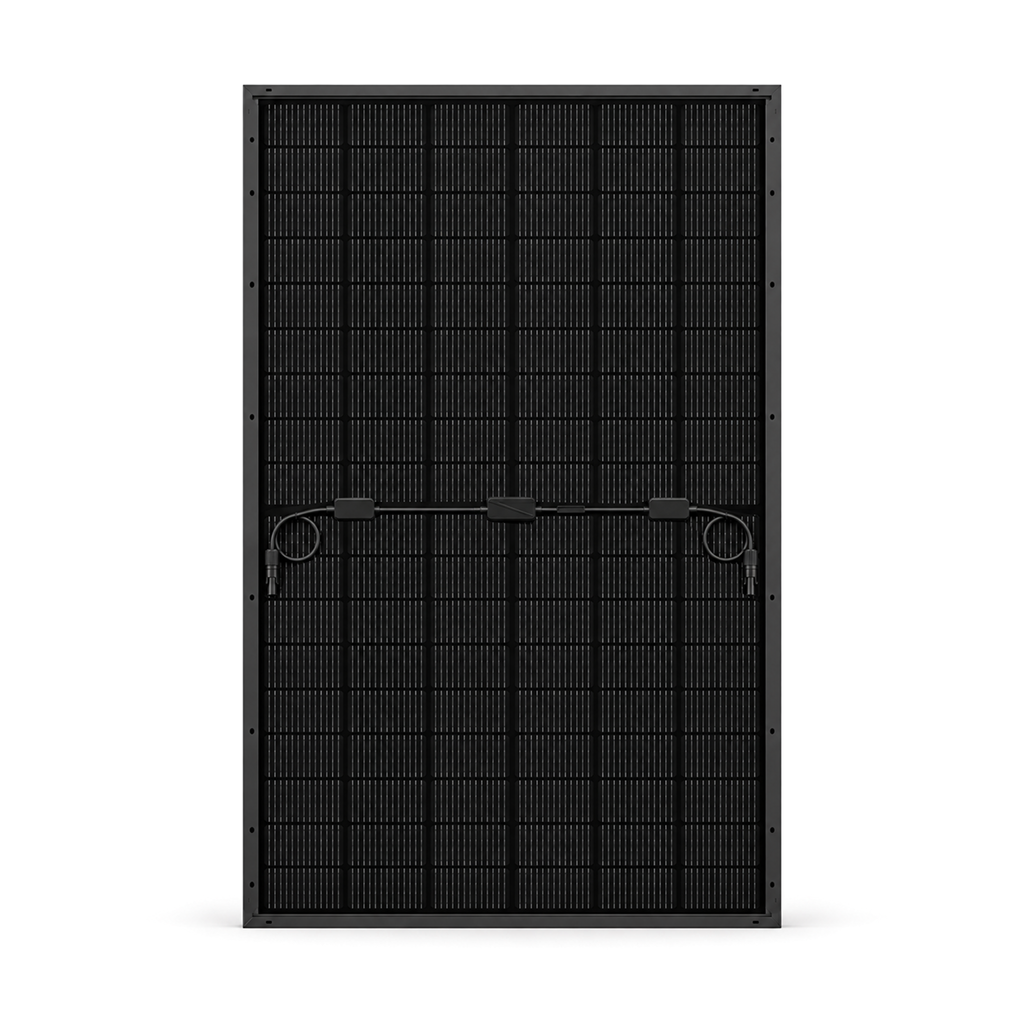

The Hanersun HN18N-54HT445W is a high-efficiency 445W bifacial solar panel from the HiTouch5N series. It combines N-type TOPCon cells, a full black appearance and durable dual-glass construction in a compact format suited to residential rooftops, carports and ground-mounted solar systems.
With 22.8% front-side module efficiency and an 80 ± 5% bifaciality rating, the rear of the panel can convert reflected sunlight into additional energy when installed over a suitable reflective surface with adequate rear exposure.
Up to 493W Under Hanersun’s BNPI Test Conditions
The module is rated at 445W under standard front-side test conditions. Hanersun lists 493W under BNPI conditions using 1000 W/m² front irradiance plus 135 W/m² rear irradiance. Actual bifacial gain depends on ground reflectivity, mounting height, tilt, row spacing, shading and other site conditions.
Why Choose the Hanersun 445W HiTouch5N?
- 445W front-side output: Delivers high power in a residential-size 67.8 x 44.6-inch module.
- 22.8% module efficiency: Produces more power from limited roof or mounting space.
- N-type TOPCon technology: Supports low degradation, strong low-light performance and reliable long-term energy production.
- Bifacial power generation: An 80 ± 5% bifaciality rating allows the rear side to produce additional energy from reflected light.
- Full black design: Black cells and a full black appearance create a clean, modern look for visible residential installations.
- Dual-glass construction: Uses 2.0 mm anti-reflection front glass and 2.0 mm heat-strengthened back glass.
- Excellent temperature performance: A -0.28%/°C Pmax temperature coefficient helps preserve output in hot conditions.
- Reduced hot-spot and crack risk: Hanersun’s HiTouch5N design is engineered for long-term reliability.
- Long warranty coverage: Includes a 25-year product warranty and 30-year linear power output warranty.
Best Uses
- Residential rooftop solar systems
- Ground-mounted solar arrays
- Solar carports and canopies
- Projects needing high efficiency in a compact footprint
- Installations designed to benefit from bifacial rear-side energy gain
- Homeowners seeking an all-black solar panel appearance
Product Specifications
| Manufacturer | Hanersun |
| Model | HN18N-54HT445W |
| Series | HiTouch5N HN18N-54HT |
| Module Type | Bifacial, full black, dual glass |
| Cell Type | N-type monocrystalline TOPCon, 182 mm |
| Cell Configuration | 108 cells, 2 x (9 x 6) |
| Maximum Power at STC | 445W |
| Module Efficiency | 22.8% |
| Power Tolerance | 0 to +3% |
| Maximum Power Voltage | 32.90V |
| Maximum Power Current | 13.53A |
| Open-Circuit Voltage | 38.90V |
| Short-Circuit Current | 14.33A |
| BNPI Maximum Power | 493W under 1000 W/m² front plus 135 W/m² rear irradiance |
| BNPI Maximum Power Current | 14.99A |
| BNPI Short-Circuit Current | 15.88A |
| Bifaciality | 80 ± 5% |
| Temperature Coefficient of Pmax | -0.28%/°C |
| Temperature Coefficient of Voc | -0.23%/°C |
| Temperature Coefficient of Isc | +0.045%/°C |
| Maximum System Voltage | 1500V DC (IEC) |
| Maximum Series Fuse Rating | 30A |
| Operating Temperature | -40°C to +70°C |
| Dimensions | 67.8 x 44.6 x 1.18 inches (1722 x 1134 x 30 mm) |
| Weight | Approximately 51.4 lb (23.3 kg) |
| Front Glass | 2.0 mm anti-reflection coated glass |
| Back Glass | 2.0 mm heat-strengthened glass |
| Frame | Anodized aluminum alloy |
| Junction Box | IP68 rated |
| Connector | Z4S-abcd / MC4-EVO 2A / other manufacturer-listed options |
| Cable | 4.0 mm², 300 mm / 300 mm; customizable |
| Fire Type | UL Type 29 |
| Modules per Pallet | 37 |
| Modules per 40-Foot High-Cube Container | 962 |
Connector note: Confirm the connector installed on the delivered modules before selecting mating connectors or extension cables.
Warranty
- Product Warranty: 25 years
- Linear Power Output Warranty: 30 years
- First-Year Guaranteed Output: 99%
- Annual Degradation: No more than 0.40% from year 2 through year 30
- Guaranteed Output at Year 30: 87.4%
About Hanersun
Hanersun develops and manufactures high-efficiency solar modules and energy-storage products for residential, commercial and utility-scale projects. The manufacturer identifies Hanersun as a BloombergNEF Tier 1 PV module manufacturer.
Why Buy From US Solar Supplier
US Solar Supplier is an American-founded solar equipment supplier based in Kentucky. We offer competitive pricing, dependable inventory and knowledgeable support for homeowners, contractors and commercial solar projects.
Frequently Asked Questions
Is the Hanersun HN18N-54HT445W bifacial? +
Yes. This is a bifacial dual-glass solar panel with an 80 ± 5% bifaciality rating. Rear-side production depends on reflected light reaching the back of the module.
What is the difference between the 445W and 493W ratings? +
The panel is rated at 445W under standard test conditions using front-side irradiance only. The 493W BNPI value includes a defined amount of rear-side irradiance. It is a test-condition rating, not a guarantee that every installation will continuously produce 493W.
What does N-type TOPCon mean? +
N-type TOPCon is an advanced solar-cell technology designed to improve efficiency, temperature performance and long-term energy production while reducing common degradation mechanisms associated with conventional P-type cells.
Is this an all-black solar panel? +
Hanersun identifies this model as a full black module. Its dark appearance is designed for residential projects where panel aesthetics matter.
Where does bifacial solar perform best? +
Bifacial panels perform best when the rear side is exposed to reflected sunlight. Ground mounts, carports and elevated arrays over light-colored or reflective surfaces generally provide more opportunity for rear-side gain than panels mounted close to a dark roof.
What does BloombergNEF Tier 1 mean? +
BloombergNEF Tier 1 refers to a solar manufacturer’s bankability and project-financing history. It applies to the manufacturer, not as a separate quality certification for an individual panel model.
Can I mix this panel with a different solar-panel model? +
Only after the voltage, current, connector, string design and inverter operating window have been reviewed. Matching wattage alone is not enough to confirm compatibility.
Are the inverter, racking and electrical components included? +
No. This listing is for the Hanersun solar panel only unless the selected product option specifically states otherwise. Inverter, racking, rapid shutdown equipment, wiring and other balance-of-system components are sold separately.
