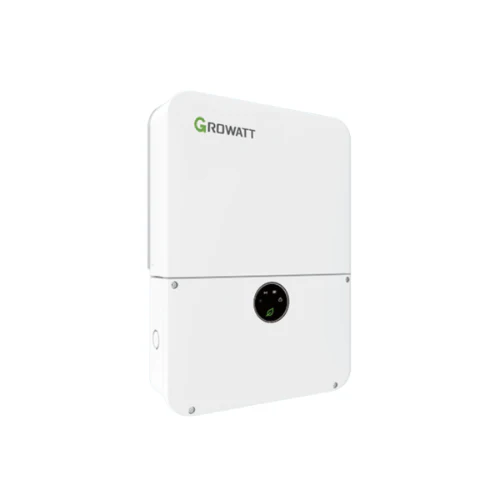

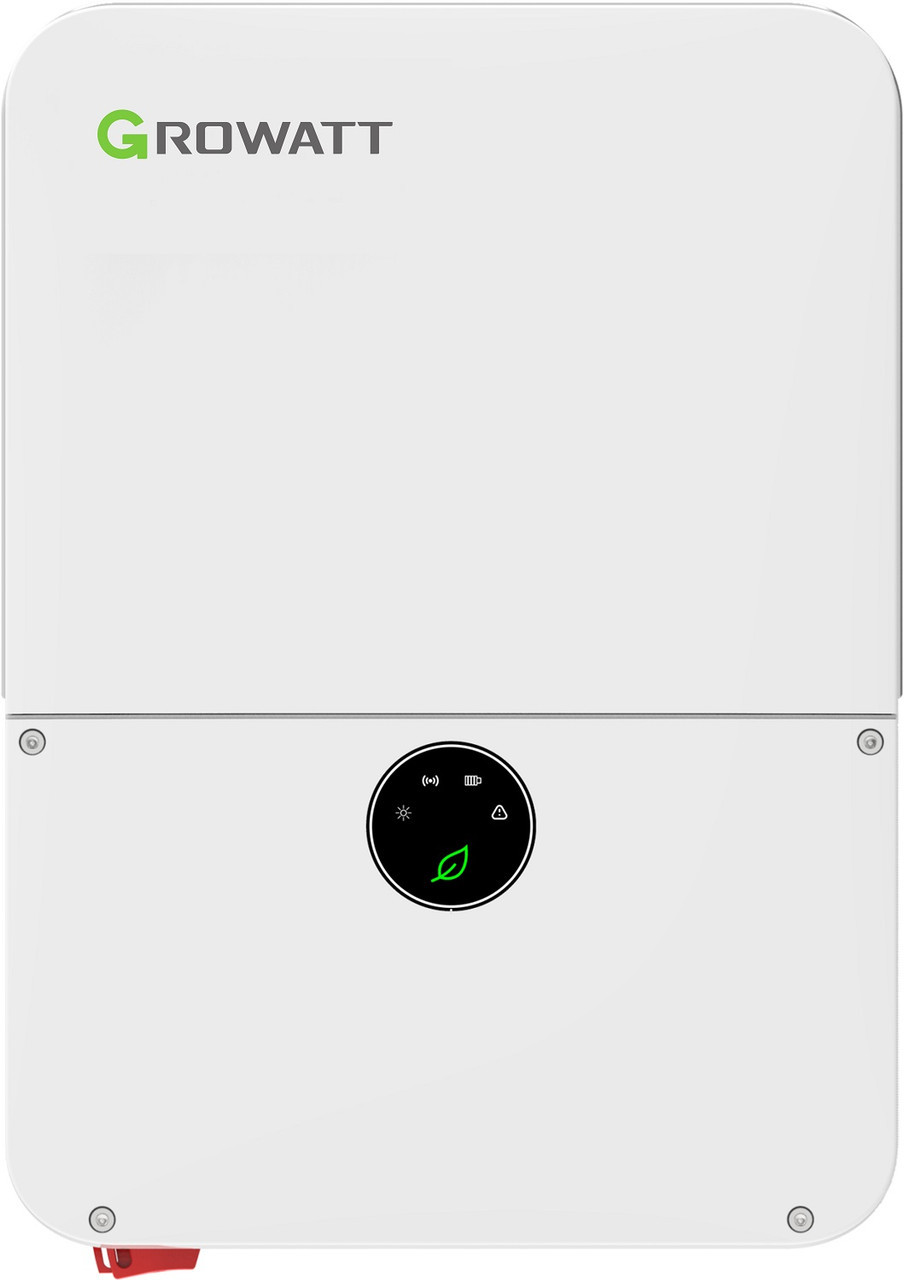

Growatt 11.4kW Hybrid Inverter XH Tigo Single Core (150A) RSS Transmitter MIN 11400TL-XH-US
MPN No: MIN 11400TL-XH-US
Expected ship date Jan 15 - 22
In Stock
$2,099.00
Growatt 11.4kW Hybrid Inverter XH Tigo Single Core (150A) RSS Transmitter MIN 11400TL-XH-US
Growatt 11.4kW Hybrid Inverter XH Tigo Single Core (150A) RSS Transmitter MIN 11400TL-XH-US
Regular price
$2,099
New
LESS THAN 50
Growatt 11.4kW Hybrid Inverter XH Tigo Single Core (150A) RSS Transmitter MIN 11400TL-XH-US
Growatt 11.4kW Hybrid Inverter XH Tigo Single Core (150A) RSS Transmitter MIN 11400TL-XH-US
Available
MPN No: MIN 11400TL-XH-US
Regular price
$2,099
Expected ship date Jan 15 - 22
We offer multiple secure payment options for your convenience
We offer multiple secure payment options for your convenience
Data Sheet
Regular price
$2,099
Growatt 11.4kW Hybrid Inverter XH Tigo Single Core (150A) RSS Transmitter MIN 11400TL-XH-US
MPN No:
MIN 11400TL-XH-US
Expected ship date Jan 15 - 22
Growatt 11.4kW Hybrid Inverter XH | MIN 11400TL-XH-US
With Tigo Single-Core (150A) Rapid Shutdown Transmitter Compatibility
Battery-ready hybrid inverter that supports whole-home backup, DC/AC coupled systems, dark start, rapid shutdown (RSD), AFCI protection, and energy management modes — not just a pure grid-tie unit.
About
The Growatt MIN 11400TL-XH-US is a high-performance 11.4kW hybrid solar inverter designed for modern residential solar + storage systems.
Built for flexibility, resilience, and compliance, this inverter supports DC-coupled and AC-coupled batteries, whole-home or partial backup, and advanced energy management modes — all in a compact, NEMA 4X-rated enclosure.
Fully compliant with UL 1741 SA/SB, IEEE 1547, CA Rule 21, and NEC 2020 rapid shutdown, the MIN 11400TL-XH-US integrates seamlessly with Tigo RSS transmitters, making it a strong choice for jurisdictions with strict safety and grid requirements.
Key Technology & Features
-
11.4kW Hybrid Output
Delivers up to 11,400W AC output with high efficiency for residential solar + storage systems. -
Battery-Ready Architecture
Supports both DC-coupled and AC-coupled battery configurations for maximum system design flexibility. -
Backup Power & Dark Start
Enables backup power operation and dark-start capability when paired with compatible batteries. -
Advanced Energy Management Modes
Includes self-consumption, zero export, time-of-use (TOU), and off-grid operation modes. -
Rapid Shutdown & AFCI Support
Fully compatible with Tigo single-core (150A) RSS transmitters and includes integrated AFCI protection. -
High Efficiency Performance
Up to 98.5% max efficiency with excellent CEC efficiency at both 208V and 240V. -
Outdoor-Rated Design
NEMA 4X / IP65 enclosure with natural convection cooling and ultra-low nighttime power consumption.
Best Uses
-
Residential solar + battery storage systems
-
Homes requiring backup or partial-home EPS functionality
-
Installations needing NEC 2020 rapid shutdown compliance
-
TOU optimization and zero-export utility programs
-
New builds or retrofits with future battery expansion plans
Battery & System Compatibility
-
Growatt APX HV Batteries
-
Growatt ARO HV Batteries
-
LG Prime 10H / 16H & LG Enblock Series
-
Supports scalable battery capacities from small backup systems to whole-home configurations
-
Compatible with Growatt ATS-US or SYN200-US for backup configurations
Warranty
-
Standard 10-Year Manufacturer Warranty
-
Optional extended warranty available up to 15 or 20 years
Product Specifications
| Specification | Value |
|---|---|
| Model | MIN 11400TL-XH-US |
| AC Nominal Power | 11,400 W |
| Max AC Apparent Power | 18,000 VA |
| Nominal AC Voltage | 208V / 240V |
| Max Output Current | 48 A |
| Max Efficiency | 98.5% |
| CEC Efficiency (240V) | 98.3% |
| MPPTs / Strings per MPPT | 2 / 2 |
| Max DC Voltage | 600 V |
| Operating Voltage Range | 220–500 V |
| Battery Voltage Range | 360–550 V (model-dependent) |
| Cooling | Natural Convection |
| Enclosure Rating | NEMA 4X (IP65) |
| Operating Temp | -13°F to 140°F (-25°C to 60°C) |
| Dimensions (W × H × D) | 15.8 × 25.2 × 7.4 in |
| Weight | 45.2 lbs (20.5 kg) |
| Communications | RS485, WiFi / 4G |
| Rapid Shutdown | Tigo / APsystems / FUDA |
| Compliance | UL 1741 SA/SB, IEEE 1547, NEC 2020 |
| Warranty | 10 Years (extendable) |
