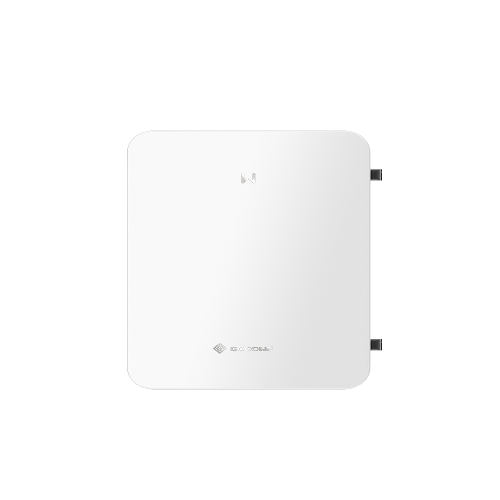

GoodWe Automatic Transfer Device ATD200-50-US10
MPN No: ATD200-50-US10
Expected ship date Sep 08 - 15
In Stock
$509.30
Regular price
$509.30
New
55 IN STOCK
GoodWe Automatic Transfer Device ATD200-50-US10
GoodWe Automatic Transfer Device ATD200-50-US10
Available
MPN No: ATD200-50-US10
Regular price
$509.30
Expected ship date Sep 08 - 15
Ships from U.S. Warehouse
Trusted by Thousands
Expert U.S. Support
We offer multiple secure payment options for your convenience
We offer multiple secure payment options for your convenience
Regular price
$509.30
GoodWe Automatic Transfer Device ATD200-50-US10
MPN No:
ATD200-50-US10
Expected ship date Sep 08 - 15
GoodWe Automatic Transfer Device ATD200-50-US10
The GoodWe ATD200-50-US10 Automatic Transfer Device (ATD) is designed to enable whole-home backup functionality for compatible GoodWe energy storage systems in U.S. residential applications.
Engineered for integration with GoodWe A-ES and A-BP systems, the ATD provides the electrical interface required to support reliable transition between grid-connected operation and backup power.
With support for 24/7 whole-home backup, low-voltage ride-through capability, and compatibility with GoodWe A-ES and A-BP equipment, the ATD200-50-US10 provides a purpose-built solution for residential energy resilience and backup system integration.
Key Technology
-
200A Whole-Home Backup Interface
Provides a 200A grid current rating, making it suitable for integration with residential electrical services requiring whole-home backup functionality. -
GoodWe A-ES & A-BP Compatibility
Purpose-built for integration with compatible GoodWe A-ES and A-BP energy storage systems. -
24/7 Whole-Home Backup
Designed as part of a GoodWe energy storage system to support continuous whole-home backup capability during grid outages. -
120/240V Split-Phase Operation
Supports standard North American residential 120/240V split-phase electrical systems. -
40A Continuous Inverter Current
Supports up to 40A maximum continuous current from the inverter. -
200A Main Breaker Support
Supports maximum overcurrent protection of up to 200A for the main breaker. The main breaker itself is optional. -
50A Inverter Circuit Protection
Supports maximum overcurrent protection of 50A for the inverter circuit breaker. -
Low-Voltage Ride-Through
Designed with low-voltage ride-through capability to support reliable operation within compatible GoodWe backup systems. -
Natural Convection Cooling
Uses passive natural-convection cooling, eliminating the need for active cooling fans. -
Type 3R / IP44 Enclosure
Features a Type 3R, IP44 enclosure rating for protected installation in suitable residential environments. -
Wall-Mounted Design
Compact wall-mounted configuration helps simplify integration alongside other GoodWe energy storage equipment.
Best Uses
-
Whole-Home Backup Systems
Ideal for residential energy storage installations designed to provide backup power across the home's electrical system. -
GoodWe A-ES Energy Storage Systems
Designed for integration with compatible GoodWe A-ES equipment requiring automatic transfer functionality. -
GoodWe A-BP Backup Systems
Suitable for compatible GoodWe A-BP installations requiring a dedicated whole-home backup interface. -
200A Residential Electrical Services
The 200A grid current rating makes the ATD200-50-US10 well suited to common 200A U.S. residential electrical services. -
Solar + Storage Backup Installations
Provides an important system component for homes combining solar generation, compatible GoodWe energy storage equipment, and backup power.
Product Specifications
| Specification | Details |
|---|---|
| Manufacturer | GoodWe |
| Series | ATD Series |
| Model / SKU | ATD200-50-US10 |
| Product Type | Automatic Transfer Device (ATD) |
| Primary Application | Whole-Home Backup |
| Compatible Systems | GoodWe A-ES and A-BP |
| Feed-In Type | Split Phase |
| Nominal Output Voltage | 240 V |
| Output Voltage Range | 211–264 V |
| Nominal AC Voltage of Line Conductor | 120 / 240 V |
| Nominal AC Frequency | 60 Hz |
| AC Frequency Range | 56–64 Hz |
| Grid Current Rating | 200 A |
| Maximum Continuous Current From Inverter | 40 A |
| Maximum Main Breaker Overcurrent Protection | 200 A |
| Main Breaker | Optional |
| Maximum Inverter Circuit Breaker Overcurrent Protection | 50 A |
| Cooling Method | Natural Convection |
| Operating Temperature Range | -13°F to 140°F (-25°C to 60°C) |
| Derating Temperature | 113°F (45°C) |
| Maximum Operating Altitude | 9,842 ft (3,000 m) |
| Ingress Protection Rating | Type 3R / IP44 |
| Mounting Method | Wall Mounted |
| Dimensions (W × H × D) | 17.7 × 24 × 5.9 in |
| Weight | 28 lb |
| Safety Regulation | UL 1741, CSA 22.2 No. 107-01 |
| Electromagnetic Compatibility | FCC Part 15 Class B |
Whole-Home Backup Integration
The ATD200-50-US10 is specifically designed as part of GoodWe's whole-home backup architecture. When paired with compatible A-ES or A-BP equipment, the device provides the transfer functionality necessary for supported U.S. residential backup applications. The manufacturer's product sheet specifically highlights 24/7 whole-home backup, A-ES/A-BP compatibility, and low-voltage ride-through as core features of the ATD platform.
About GoodWe:
GoodWe develops solar inverters, energy storage systems, backup power equipment, EV charging solutions, and intelligent energy management technologies for residential and distributed energy applications. Its integrated energy ecosystem is designed to connect solar production, battery storage, backup power, monitoring, and smart energy devices into flexible home energy solutions.
Reliable Automatic Transfer for Residential Backup Power
The GoodWe ATD200-50-US10 combines a 200A grid current rating, 120/240V split-phase compatibility, 40A continuous inverter input capability, whole-home backup support, and dedicated A-ES/A-BP integration in a compact wall-mounted device. It provides the essential transfer functionality needed to build a compatible GoodWe residential energy storage and backup system.
