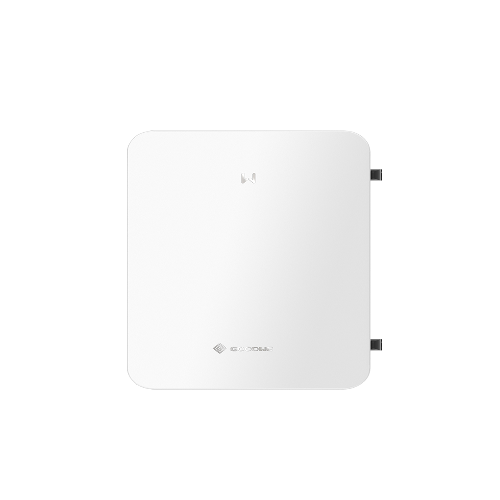

GoodWe Automatic Transfer Device ABD200-40-US10
The GoodWe ABD200-40-US10 Automatic Backup Device is designed to provide residential backup integration for compatible GoodWe ES-US and SBP-US energy systems in North America.
It serves as the backup interface between the utility grid, compatible inverter, and home electrical system, helping enable continuous residential energy backup when properly integrated.
The device also incorporates a built-in North American Smart Meter that can connect with up to four CTs for high-precision load monitoring across a home's electrical loads.
Key Technology
-
200A Residential Backup Interface
Provides a 200A grid current rating for integration with common North American residential electrical services. -
GoodWe ES-US & SBP-US Compatibility
Purpose-built for integration with compatible GoodWe ES-US hybrid inverters and SBP-US AC-coupled retrofit inverters. -
24/7 Residential Backup Solution
Designed to support continuous residential backup functionality as part of a properly configured GoodWe energy storage system. -
120/240V Split-Phase Operation
Supports standard North American 120/240V split-phase residential electrical systems. -
32A Continuous Inverter Current
The ABD200-40-US10 supports up to 32A maximum continuous current from the inverter. -
40A Inverter Circuit Breaker Support
Designed for a maximum inverter circuit breaker overcurrent protection rating of 40A. -
200A Main Breaker Support
Supports maximum main breaker overcurrent protection of up to 200A. The main breaker is optional. -
Built-In Smart Meter
Includes an integrated North American Smart Meter for system-level energy and load monitoring. -
Up to Four CT Connections
The integrated meter can connect with up to 4 current transformers (CTs), providing more precise monitoring of household electrical loads. -
Low-Voltage Ride-Through
Designed with low-voltage ride-through capability to support stable operation within compatible GoodWe backup systems. -
RS485 Communication
Communicates with the compatible inverter using an RS485 interface. -
Natural Convection Cooling
Uses passive natural-convection cooling with no active cooling fan required. -
Type 3R / IP44 Protection
Features a Type 3R and IP44 enclosure rating for protected installation in suitable residential environments.
Best Uses
-
GoodWe Residential Backup Systems
Ideal for residential solar and battery installations requiring automatic backup functionality with compatible GoodWe equipment. -
GoodWe ES-US Hybrid Inverter Systems
Designed to integrate with compatible ES-US hybrid inverter installations requiring backup switching and load monitoring. -
GoodWe SBP-US Retrofit Systems
Suitable for SBP-US AC-coupled retrofit battery systems where residential backup functionality is required. -
200A Residential Electrical Services
The 200A grid current rating makes the device well suited for common 200A North American residential service applications. -
High-Precision Load Monitoring
Integrated Smart Meter functionality and support for up to four CTs make it useful for installations requiring detailed household load monitoring.
Product Specifications
| Specification | Details |
|---|---|
| Manufacturer | GoodWe |
| Series | ABD Series |
| Model / SKU | ABD200-40-US10 |
| Product Type | Automatic Backup Device |
| Primary Application | Residential Backup / Energy Storage Integration |
| Compatible Inverter Series | GoodWe ES-US and SBP-US |
| Integrated Metering | Built-In North American Smart Meter |
| Maximum CT Connections | Up to 4 CTs |
| Feed-In Type | Split Phase |
| Nominal Output Voltage | 240 V |
| Output Voltage Range | 211–264 V |
| Nominal AC Voltage of Line Conductor | 120 / 240 V |
| Nominal AC Frequency | 60 Hz |
| AC Frequency Range | 58.5–61.2 Hz |
| Grid Current Rating | 200 A |
| Maximum Continuous Current From Inverter | 32.0 A |
| Maximum Main Breaker Overcurrent Protection | 200 A |
| Main Breaker | Optional |
| Maximum Inverter Circuit Breaker Overcurrent Protection | 40 A |
| Communication with Inverter | RS485 |
| Cooling Method | Natural Convection |
| Operating Temperature Range | -13°F to 140°F (-25°C to 60°C) |
| Derating Temperature | 113°F (45°C) |
| Maximum Operating Altitude | 9,842 ft (3,000 m) |
| Ingress Protection Rating | Type 3R / IP44 |
| Mounting Method | Wall Mounted |
| Dimensions (W × H × D) | 17.7 × 24 × 5.9 in |
| Weight | 26 lb |
| Safety Standards | UL 1741, UL 1741 PCS CRD, CSA 22.2 No. 107-01 |
| Electromagnetic Compatibility | FCC Part 15 Class B |
About GoodWe:
GoodWe develops solar inverters, energy storage systems, EV charging equipment, backup power solutions, and intelligent energy management technologies for residential and distributed energy applications. Its integrated platforms are designed to connect solar generation, battery storage, backup power, monitoring, and smart energy equipment within a unified home energy ecosystem.
Smart Residential Backup and Load Management
The GoodWe ABD200-40-US10 combines a 200A grid rating, 120/240V split-phase compatibility, 32A continuous inverter capacity, 40A inverter breaker support, integrated Smart Meter, and support for up to four CTs in a compact residential backup device. Designed specifically for compatible GoodWe ES-US and SBP-US systems, it provides an important foundation for intelligent home backup and energy management.
