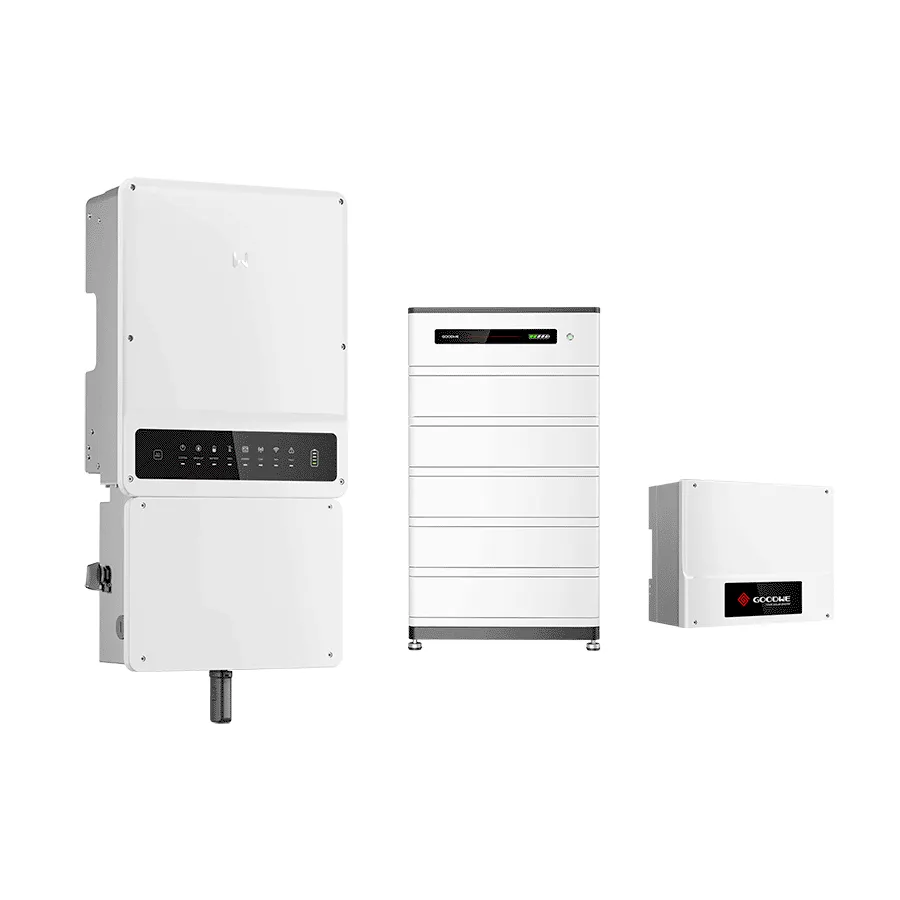

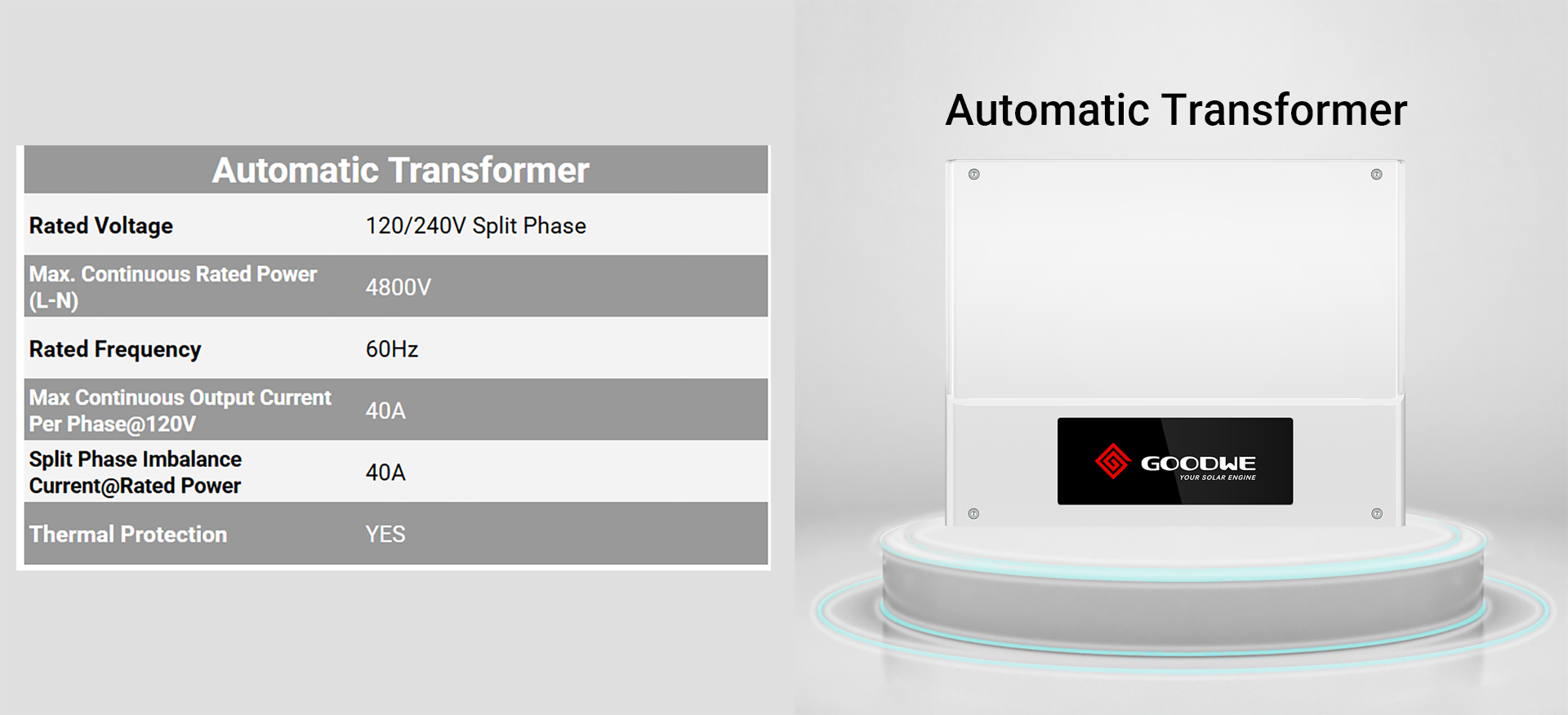

GoodWe A-ES 9.6kW Hybrid Inverter (GW9600A-ES) with GoodWe Lynx 16.0 kWh Battery ( LX F16.0-30) + Automatic Transformer
FH-US High Voltage Battery —Bundle
With APsmart RSD
This all-in-one energy storage bundle pairs the GoodWe A-ES hybrid inverter with the GoodWe Lynx FH-US high-voltage LFP battery, delivering a clean, code-compliant solution for residential whole-home backup and solar self-consumption.
Designed as a closed-loop system, the inverter and battery communicate directly for optimized charging, discharging, and long-term reliability—making this bundle ideal for new installs or storage retrofits.
Why This Bundle Works
-
High-voltage efficiency: Wide battery voltage range enables excellent round-trip performance and reduced current losses
-
Closed-loop communication: RS485/CAN BMS integration for intelligent battery management
-
Outdoor-ready hardware: NEMA 4X inverter enclosure and IP65-rated battery
-
Utility-approved: Certified for major interconnection and safety standards
GoodWe A-ES 9.6kW Hybrid Inverter
Built for modern grid-interactive homes, the A-ES hybrid inverter seamlessly manages PV production, battery storage, and household loads.
Key Features
-
97.6% peak efficiency
-
Dual MPPT with wide voltage window
-
Quiet operation for residential settings
-
Integrated rapid-shutdown compatibility
-
10-year manufacturer warranty

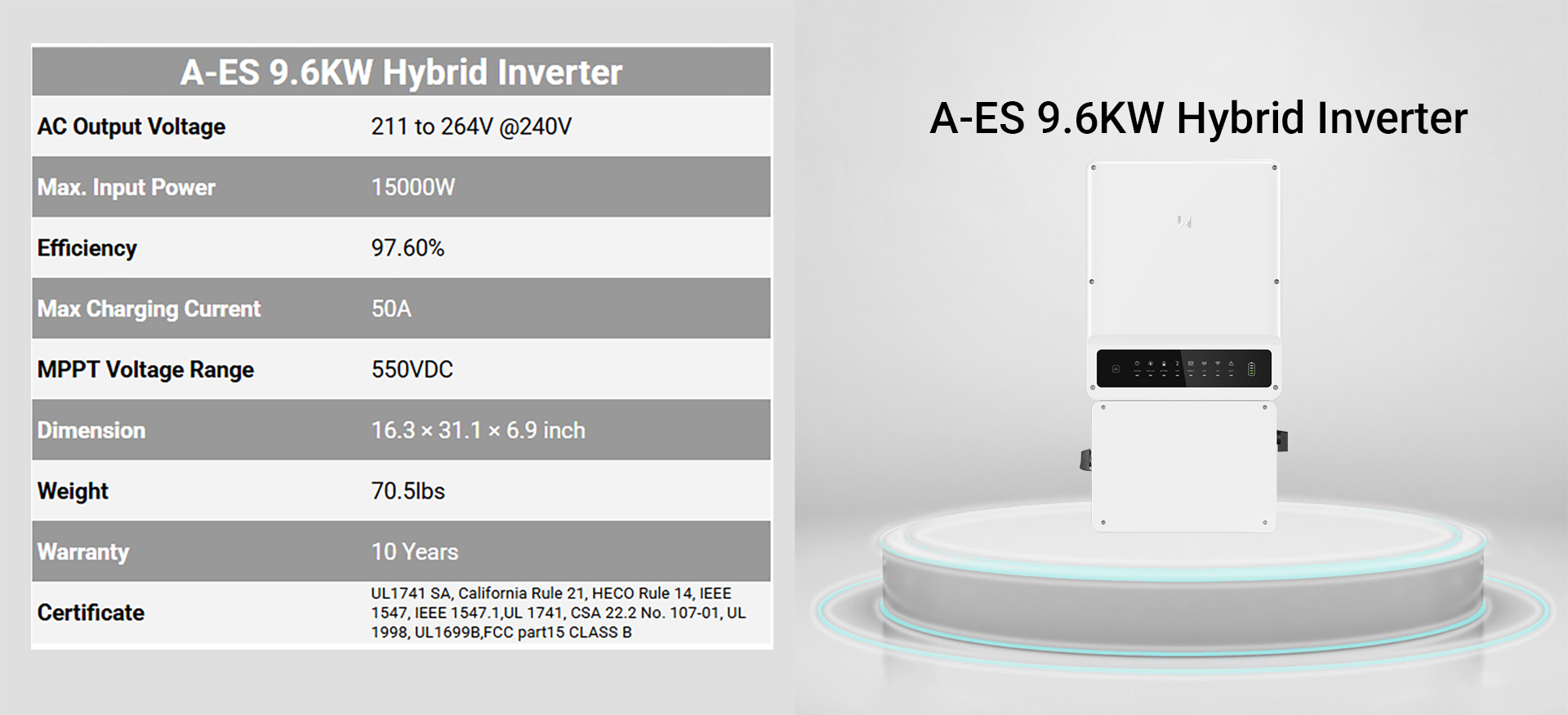

Technical Specifications
-
AC Output Voltage: 211–264V @ 240V
-
Max PV Input Power: 15,000W
-
MPPT Voltage Range: 550VDC
-
Max Continuous Charging Current: 50A
-
Battery Technology: Li-ion (high-voltage)
-
Battery Voltage Range: 80V–495V
-
BMS Communication: RS485, CAN
-
Enclosure: NEMA Type 4X
-
Operating Temp: −31°F to +140°F (−35°C to +60°C)
-
Noise: <40 dB
-
Dimensions: 16.3 × 31.1 × 6.9 in
-
Weight: 70.5 lb
-
Warranty: 10 years
-
Certifications: UL 1741 / 1741 SA, IEEE 1547 / 1547.1, CA Rule 21, HECO Rule 14, CSA 22.2 No. 107-01, UL 1998, UL 1699B, FCC Part 15 Class B
GoodWe Lynx FH-US 16 kWh Battery
The Lynx FH-US uses LiFePO₄ (LFP) chemistry for long cycle life and thermal stability, purpose-built for residential energy storage.
| Specification | Details |
|---|---|
| Model | GoodWe Lynx FH-US (16.0 kWh configuration) |
| Battery Chemistry | LiFePO₄ (Lithium Iron Phosphate) |
| Usable Energy | 16.0 kWh |
| Nominal Voltage | 320 V |
| Operating Voltage Range | 285 V – 360 V |
| Nominal Power | 11.2 kW |
| Nominal Charge / Discharge Current | 35 A |
| Ingress Protection Rating | IP65 |
| Relative Humidity | ≤95% |
| Operating Temperature | Charge: +32°F to +122°F (0°C to +50°C) • Discharge: +5°F to +122°F (-15°C to +50°C) |
| Installation | Ground-mounted |
| Communication | CAN / RS485 |
| Scalability | Stackable system; supports multiple battery towers in parallel |
| Certifications | UL 1973, UL 9540A-2019, UN 38.3, FCC Part 15 |
| Warranty | 10 years |
Ideal Applications
-
Residential solar + storage systems
-
Whole-home or partial-home backup
-
Time-of-use rate optimization
-
Grid-interactive and utility-approved installations
-
Homeowners prioritizing safety, efficiency, and long-term value
Why GoodWe
GoodWe is a globally trusted solar and energy storage manufacturer known for reliable engineering, high efficiency, and seamless solar-plus-storage integration.
Their hybrid inverters and Lynx FH-US high-voltage batteries are designed to work together in a closed-loop system, delivering intelligent energy management, long battery life, and safe, code-compliant performance.
With UL certifications, utility-approved grid compliance, outdoor-rated enclosures, and scalable battery options, GoodWe systems are built for real-world residential installs—providing homeowners with dependable backup power, better solar self-consumption, and long-term peace of mind.
