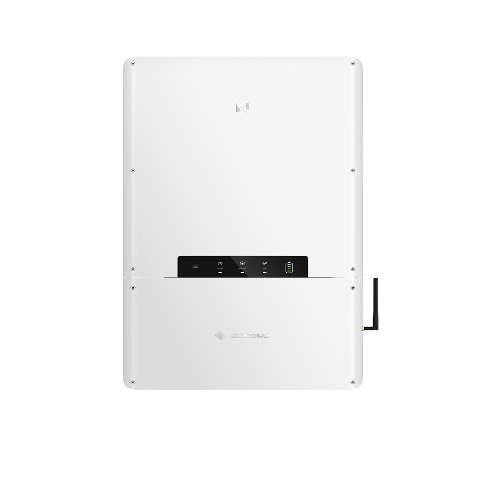

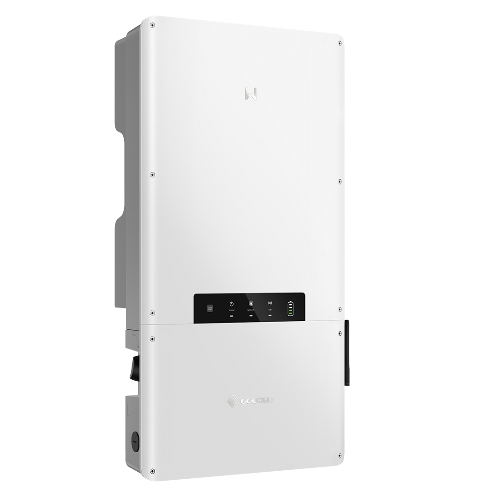

GoodWe 9.6kW ES-US Series Split Phase Hybrid Inverter GW9600-ES-US20

The GoodWe GW9600-ES-US20 ES-US Series is a 9.6kW split-phase high-voltage hybrid inverter designed for residential solar, battery storage, and backup power applications in North America.

Engineered to increase the self-consumption of generated solar energy, the ES-US platform combines PV production, high-voltage battery integration, grid interaction, and residential backup capability within one intelligent energy system.

The ES-US Series also supports an optional EV charger, multiple communication protocols, smart home integration, and compatible fossil-fuel generator integration.

Key Technology

• 9.6kW Split-Phase Hybrid Inverter
  Provides 9,600W nominal on-grid AC output for high-capacity residential solar, battery storage, and energy management systems.

• 14.4kW Maximum PV Input
  Supports up to 14,400W of PV input power, allowing substantial DC array capacity relative to the inverter's nominal AC output.

• Four Independent MPPTs
  Four MPP trackers with one string per MPPT provide flexible PV array design for complex rooftops with multiple orientations, pitches, or sunlight conditions.

• High-Voltage Battery Integration
  Compatible with lithium-ion batteries operating across an 80–495V voltage range, with a nominal battery voltage of 300V.

• 9.6kW Battery Charging Power
  Provides up to 9,600W maximum charging power with up to 50A maximum continuous battery charging current.

• 10.08kW Battery Discharging Power
  Supports up to 10,080W maximum battery discharge power with up to 50A continuous discharging current.

• 120/240V Split-Phase Backup
  Provides 9,600VA nominal backup apparent power with standard 120/240V split-phase output for supported residential backup loads.

• 17.28kVA Short-Duration Backup Output
  Can provide up to 17,280VA for 10 seconds when sufficient PV and battery power are available, providing additional capacity for temporary load surges.

• 97.6% Maximum Efficiency
  High conversion efficiency helps maximize usable energy from PV production and battery storage.

• 24/7 Residential Backup Solution
  The ES-US platform is designed to support residential backup applications when paired with the required automatic backup device.

• No External Auto-Transformer Required
  The ES-US Series provides 120/240V split-phase backup functionality without requiring an external auto-transformer.

• Integrated Safety Technology
  Includes AFCI, battery arc-fault detection, rapid shutdown, PV string current monitoring, insulation resistance detection, residual current monitoring, and multiple additional electrical protection functions.

• Integrated Surge Protection
  Features Type II DC surge protection and Type III AC surge protection.

• Optional EV Charger Integration
  Supports an optional Level 2 EV charger capable of using solar-generated or grid electricity, with charging schedules managed through the SolarGo app.

• Generator Compatibility
  Supports compatible fossil-fuel generator integration for increased residential energy resilience.

• Multi-Protocol Communications
  Supports LAN, optional 4G, Bluetooth, Wi-Fi, RS485, and CAN communications for system monitoring and integration.

• NEMA Type 4X Enclosure
  Durable wall-mounted enclosure provides environmental protection for flexible residential installation.

Best Uses

• High-Capacity Residential Solar Systems
  Ideal for homes requiring up to 9.6kW of inverter output with support for PV arrays up to 14.4kW.

• Residential Solar + Battery Storage
  Designed for homeowners combining solar production with compatible high-voltage lithium-ion battery storage.

• Whole-Home Energy Management
  Provides centralized management of PV generation, battery charging and discharging, grid interaction, and supported backup loads.

• Residential Backup Power
  Supports 120/240V split-phase backup operation when installed with the required compatible automatic backup device.

• Complex Residential Rooftops
  Four independent MPPT trackers make the inverter particularly useful for PV arrays distributed across multiple roof faces or orientations.

• Solar + Storage + EV Charging
  Suitable for integrated home energy systems incorporating PV production, battery storage, and optional electric vehicle charging.

• Generator-Integrated Backup Systems
  Provides additional flexibility for residential systems incorporating a compatible fossil-fuel backup generator.

Product Specifications

Powerful Solar, Storage and Backup Energy Management

The GoodWe GW9600-ES-US20 combines 9.6kW AC output, 14.4kW maximum PV input, four independent MPPTs, high-voltage battery support, 120/240V split-phase backup capability, integrated safety technology, and smart communications in a high-capacity residential hybrid inverter. With optional EV charging and generator compatibility, it provides a flexible foundation for advanced home energy and backup systems.
