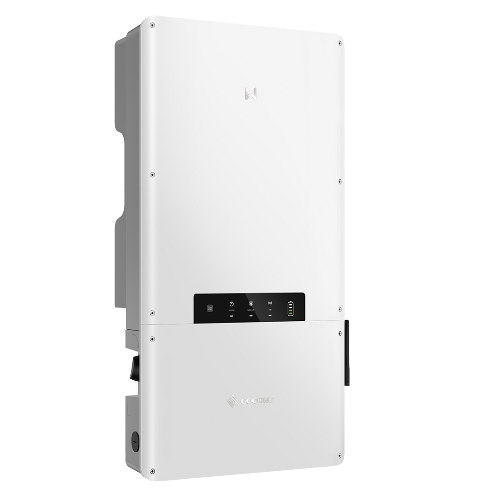

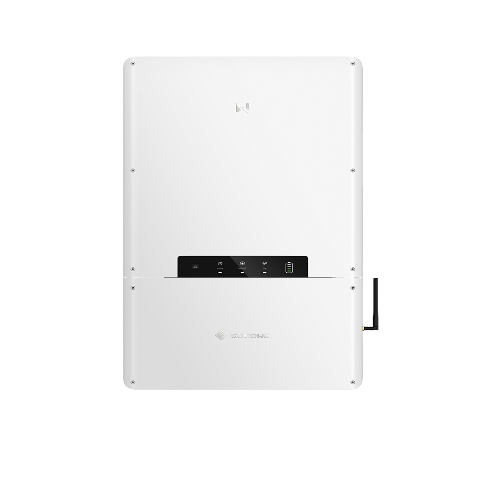

GoodWe 7.6kW ES-US Series Split Phase Hybrid Inverter GW7600-ES-US20
The GoodWe GW7600-ES-US20 ES-US Series is a 7.6kW split-phase high-voltage hybrid inverter designed for residential solar, battery storage, and backup power applications in North America.
Designed to increase solar self-consumption, it combines PV generation, high-voltage battery integration, grid interaction, and backup capability in a single intelligent energy platform.
The ES-US platform also supports an optional EV charger, smart home integration, multiple communication protocols, and compatible fossil-fuel generator integration.
Key Technology
-
7.6kW Split-Phase Hybrid Inverter
Provides 7,600W nominal on-grid AC output for residential solar, energy storage, and backup applications. -
11.4kW Maximum PV Input
Supports up to 11,400W of PV input power, providing substantial DC oversizing capability relative to the inverter's nominal AC output. -
Four Independent MPPTs
Four MPP trackers with one string per MPPT provide flexible array design for rooftops with multiple orientations, pitches, or varying sunlight conditions. -
High-Voltage Battery Integration
Compatible with lithium-ion batteries operating across an 80–495V voltage range, with a nominal battery voltage of 300V. -
7.6kW Battery Charging
Supports up to 7,600W maximum battery charging power and 50A maximum continuous charging current. -
7.98kW Battery Discharging
Provides up to 7,980W maximum battery discharge power with up to 50A continuous discharge current. -
120/240V Split-Phase Backup
Delivers 7,600VA nominal backup power at 120/240V for supported residential loads. -
12.92kVA Short-Duration Backup Output
Can provide up to 12,920VA for 10 seconds when sufficient PV and battery power are available, helping accommodate temporary load surges. -
97.6% Maximum Efficiency
High conversion efficiency helps maximize usable energy from both PV generation and battery storage. -
Integrated Rapid Shutdown & AFCI
Includes integrated rapid shutdown, AFCI, battery arc-fault detection, and multiple additional electrical protection functions. -
Integrated Surge Protection
Features Type II DC surge protection and Type III AC surge protection for enhanced system protection. -
Optional EV Charger Integration
The ES-US platform supports an optional Level 2 EV charger, enabling compatible electric vehicles to charge using solar-generated energy or grid electricity. -
Generator Compatibility
Supports integration with a compatible fossil-fuel generator for increased residential energy resilience. -
Smart Connectivity
Supports LAN, optional 4G, Bluetooth, Wi-Fi, RS485, and CAN communications for monitoring and system integration. -
NEMA Type 4X Enclosure
Durable wall-mounted enclosure provides environmental protection for flexible installation locations.
Best Uses
-
Residential Solar + Battery Storage
Ideal for homeowners combining a larger residential PV array with high-voltage lithium-ion battery storage. -
Whole-Home Energy Management
Provides centralized management of solar production, battery charging and discharging, grid interaction, and supported backup loads. -
Residential Backup Power
Supports 120/240V split-phase backup operation when incorporated into a properly configured system with the required automatic backup device. -
Complex Residential Rooftops
Four independent MPPT trackers provide excellent flexibility for solar arrays distributed across different roof faces or orientations. -
Solar + Storage + EV Charging
Suitable for integrated home energy installations incorporating PV production, battery storage, and optional electric vehicle charging. -
Generator-Integrated Backup Systems
Provides additional system flexibility for residential installations incorporating a compatible backup generator.
Product Specifications
| Specification | Details |
|---|---|
| Manufacturer | GoodWe |
| Series | ES-US Series |
| Model / SKU | GW7600-ES-US20 |
| Inverter Type | Split-Phase High-Voltage Hybrid Inverter |
| Nominal AC Output Power | 7,600 W |
| Nominal AC Output Voltage | 240 V |
| AC Output Voltage Range | 211–264 V |
| Nominal AC Grid Frequency | 50 / 60 Hz |
| AC Grid Frequency Range | 58.5–61.2 Hz |
| Maximum AC Current Output to Utility Grid | 31.7 A |
| Maximum AC Current From Utility Grid with EV Charger | 40 A |
| Power Factor | ~1, Adjustable from 0.8 Leading to 0.8 Lagging |
| Maximum Total Harmonic Distortion | <3% |
| Maximum PV Input Power | 11,400 W |
| Maximum PV Input Voltage | 600 V |
| MPPT Operating Voltage Range | 50–550 V |
| PV Start-Up Voltage | 60 V |
| Number of MPPT Trackers | 4 |
| Strings per MPPT | 1 |
| Maximum Input Current per MPPT | 16 A |
| Maximum Short-Circuit Current per MPPT | 23.4 A |
| Battery Type | Lithium-Ion |
| Nominal Battery Voltage | 300 V |
| Battery Voltage Range | 80–495 V |
| Battery Start-Up Voltage | 80 V |
| Number of Battery Inputs | 1 |
| Maximum Continuous Charging Current | 50 A |
| Maximum Continuous Discharging Current | 50 A |
| Maximum Battery Charging Power | 7,600 W |
| Maximum Battery Discharging Power | 7,980 W |
| Backup Nominal Apparent Power | 7,600 VA |
| Maximum Backup Apparent Power with Grid | 7,600 VA Continuous / 12,920 VA for 10 Seconds |
| Maximum Backup Output Current | 31.7 A |
| Backup Nominal Output Voltage | 240 / 120 V |
| Backup Nominal Output Frequency | 60 Hz |
| Backup Output THDv | <3% @ Linear Load |
| Maximum Efficiency | 97.6% |
| Cooling Method | Natural Convection |
| Topology | Non-Isolated |
| Operating Temperature Range | -31°F to 140°F (-35°C to 60°C) |
| Relative Humidity | 0–95% |
| Maximum Operating Altitude | 9,842 ft (3,000 m) |
| User Interface | LED, App |
| BMS Communication | RS485, CAN |
| Meter Communication | RS485 |
| Portal Communication | LAN (4G Optional) + Bluetooth + Wi-Fi |
| Noise Emission | <40 dB |
| Self-Consumption at Night | <20 W (No Backup Output) |
| Ingress Protection Rating | NEMA Type 4X |
| Mounting Method | Wall Mounted |
| Dimensions (W × H × D) | 19.1 × 35.4 × 7.5 in |
| Weight | 76.7 lb |
| Grid Interconnection | UL 1741 SB, California Rule 21, HECO Rule 14, IEEE 1547, IEEE 1547.1 |
| Safety Regulations | UL 1741, CSA 22.2 No. 107.1, UL 1998, UL 1699B |
| Electromagnetic Compatibility | FCC Part 15 Class B |
Integrated Safety & Protection
The GW7600-ES-US20 incorporates extensive protection functionality, including PV string current monitoring, PV insulation resistance detection, residual current monitoring, PV and battery reverse-polarity protection, anti-islanding protection, AC overcurrent protection, AC short-circuit protection, AC overvoltage protection, AFCI, battery arc-fault detection, and integrated rapid shutdown. A DC switch, Type II DC surge protection, and Type III AC surge protection are also integrated into the platform.
Backup Power Capability
The GW7600-ES-US20 provides 7,600VA nominal backup output at 120/240V with up to 31.7A output current. When sufficient PV and battery power are available, maximum apparent output can reach 12,920VA for 10 seconds, providing additional short-duration capacity for supported loads with higher startup requirements. GoodWe specifies that an Automatic Backup Device is required for the residential backup function.
Optional EV Charging
The ES-US Series supports an optional 9.6kW AC Level 2 EV charger with selectable charging current up to 40A and an SAE J1772 charging interface. EV charger configuration is available through the app using Wi-Fi and Bluetooth. The EV charger and its 7.6-meter charging cable are separate system components.
About GoodWe:
GoodWe develops solar inverters, energy storage systems, EV charging equipment, backup power solutions, and intelligent energy management technologies for residential and distributed energy applications. Its integrated energy platforms are designed to connect solar generation, battery storage, backup power, monitoring, and smart energy equipment within a unified ecosystem.
High-Capacity Solar, Storage and Backup Energy Management
The GoodWe GW7600-ES-US20 combines 7.6kW AC output, 11.4kW maximum PV input, four independent MPPTs, high-voltage battery support, 120/240V backup capability, integrated safety technology, and smart communications in a flexible residential hybrid inverter. With optional EV charging and generator compatibility, it provides a scalable foundation for modern home energy and backup systems.
