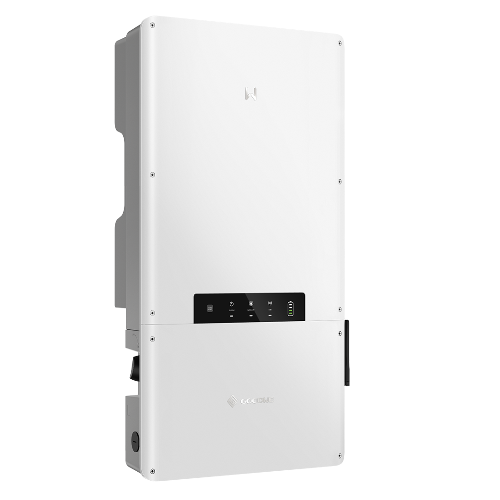

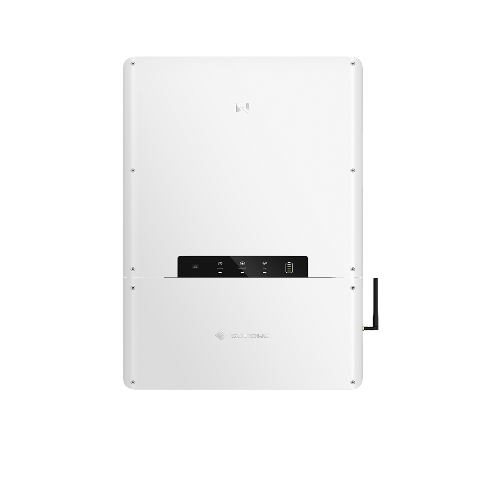

GoodWe 6kW SBP-US Series Split Phase AC-Coupled Retrofit Inverter GW6000-SBP-US20
MPN No: GW6000-SBP-US20
Expected ship date Sep 08 - 15
In Stock
$1,036.25
GoodWe 6kW SBP-US Series Split Phase AC-Coupled Retrofit Inverter GW6000-SBP-US20
GoodWe 6kW SBP-US Series Split Phase AC-Coupled Retrofit Inverter GW6000-SBP-US20
Regular price
$1,036.25
New
LESS THAN 50
GoodWe 6kW SBP-US Series Split Phase AC-Coupled Retrofit Inverter GW6000-SBP-US20
GoodWe 6kW SBP-US Series Split Phase AC-Coupled Retrofit Inverter GW6000-SBP-US20
Available
MPN No: GW6000-SBP-US20
Regular price
$1,036.25
Expected ship date Sep 08 - 15
Ships from U.S. Warehouse
Trusted by Thousands
Expert U.S. Support
We offer multiple secure payment options for your convenience
We offer multiple secure payment options for your convenience
Regular price
$1,036.25
GoodWe 6kW SBP-US Series Split Phase AC-Coupled Retrofit Inverter GW6000-SBP-US20
MPN No:
GW6000-SBP-US20
Expected ship date Sep 08 - 15
GoodWe 6kW SBP-US Series Split Phase AC-Coupled Retrofit Inverter GW6000-SBP-US20
The GoodWe GW6000-SBP-US20 SBP-US Series is a 6kW split-phase, high-voltage AC-coupled retrofit inverter designed for residential battery storage, backup power, and microgrid applications in North America. Its AC-coupled architecture makes it well-suited for adding battery storage and backup functionality to an existing solar installation without replacing the PV inverter.
The SBP-US platform supports off-grid applications, unbalanced load output, and microgrid operation during blackouts.
GoodWe includes a built-in autotransformer, eliminating the need for an external autotransformer, while compatibility with fossil-fuel generators and an optional EV charger adds flexibility for advanced residential energy systems.
Key Technology
-
6kW AC-Coupled Retrofit Inverter
Provides 6,000W nominal AC output and is designed for adding high-voltage battery storage and backup capability to compatible residential energy systems. -
Ideal for Existing Solar Systems
AC-coupled architecture makes the SBP-US Series well suited for retrofit installations where a PV system and solar inverter are already installed. -
High-Voltage Battery Integration
Supports lithium-ion batteries operating across an 80–495V battery voltage range, with a nominal battery voltage of 300V. -
6kW Battery Charging Power
Provides up to 6,000W maximum battery charging power with up to 50A maximum continuous charging current. -
6.3kW Battery Discharging Power
Supports up to 6,300W maximum battery discharge power with up to 50A maximum continuous discharge current. -
120/240V Split-Phase Backup
Provides 6,000VA nominal backup apparent power with 120/240V split-phase output for supported residential backup loads. -
12kVA Short-Duration Backup Output
Can provide up to 12,000VA for 10 seconds when sufficient PV and battery power are available, providing additional capacity for temporary startup and surge loads. -
Microgrid Operation During Blackouts
Designed to enable compatible PV systems to continue generating energy to support load consumption during a grid outage as part of a properly configured microgrid system. -
Built-In Autotransformer
Supports unbalanced 120/240V load output without requiring an additional external autotransformer, helping simplify installation and reduce system hardware requirements. -
Generator Compatibility
Compatible with fossil-fuel generators for additional backup flexibility and extended residential energy resilience. -
24/7 Load Consumption Monitoring
Supports continuous load consumption monitoring and multiple communication protocols for intelligent system management. -
Optional EV Charger Integration
The SBP-US Series supports an optional EV charger function, allowing the compatible EV charger cable to connect directly to the inverter. -
Passive Natural-Convection Cooling
Uses natural-convection cooling for quiet operation, with the GW6000-SBP-US20 rated at less than 20 dB noise emission. -
NEMA Type 4X Enclosure
Durable wall-mounted enclosure provides environmental protection for flexible residential installation.
Best Uses
-
Existing Solar System Battery Retrofits
Ideal for adding compatible high-voltage battery storage to a home with an existing PV system. -
Residential Backup Power
Provides 120/240V split-phase backup output for supported household loads during utility outages. -
Microgrid Applications
Designed to support PV generation and load consumption during blackouts when incorporated into a properly configured microgrid system. -
Solar Self-Consumption
Allows compatible battery storage to capture available energy and make it available later for household consumption. -
Generator-Integrated Energy Systems
Suitable for residential backup systems incorporating a compatible fossil-fuel generator for extended energy resilience. -
Storage + EV Charging Systems
Supports an optional Level 2 EV charger for homes combining battery storage, backup power, energy management, and electric vehicle charging.
Product Specifications
| Specification | Details |
|---|---|
| Manufacturer | GoodWe |
| Series | SBP-US Series |
| Model / SKU | GW6000-SBP-US20 |
| Inverter Type | Split-Phase AC-Coupled Retrofit Inverter (HV) |
| Battery Type | Lithium-Ion |
| Nominal Battery Voltage | 300 V |
| Battery Voltage Range | 80–495 V |
| Battery Start-Up Voltage | 80 V |
| Number of Battery Inputs | 1 |
| Maximum Continuous Charging Current | 50 A |
| Maximum Continuous Discharging Current | 50 A |
| Maximum Battery Charging Power | 6,000 W |
| Maximum Battery Discharging Power | 6,300 W |
| Nominal AC Output Power | 6,000 W |
| Nominal Apparent Power Output to Utility Grid | 6,000 VA |
| Maximum Apparent Power Output to Utility Grid | 6,000 VA |
| Maximum Apparent Power From Utility Grid | 6,000 VA |
| Maximum Apparent Power From Utility Grid Without EV Charger | 6,000 VA |
| Nominal AC Output Voltage | 240 V |
| AC Output Voltage Range | 211–264 V |
| Nominal AC Grid Frequency | 60 Hz |
| AC Grid Frequency Range | 58.5–61.2 Hz |
| Maximum AC Current Output to Utility Grid | 25.0 A |
| Maximum AC Current From Utility Grid | 25.0 A |
| Maximum AC Current From Utility Grid Without EV Charger | 25.0 A |
| Maximum AC Current From Utility Grid With EV Charger | 40.0 A |
| Power Factor | ~1, Adjustable from 0.8 Leading to 0.8 Lagging |
| Maximum Total Harmonic Distortion | <3% |
| Backup Nominal Apparent Power | 6,000 VA |
| Maximum Backup Apparent Power with Grid | 6,000 VA Continuous / 12,000 VA for 10 Seconds |
| Maximum Backup Apparent Power without Grid | 6,000 VA |
| Maximum Backup Output Current | 25.0 A |
| Backup Nominal Output Voltage | 240 / 120 V |
| Backup Nominal Output Frequency | 60 Hz |
| Backup Output THDv | <3% @ Linear Load |
| Maximum Efficiency | 97.0% |
| CEC Efficiency | 96.0% |
| Maximum Battery-to-AC Efficiency | 97.0% |
| Residual Current Monitoring | Integrated |
| Battery Reverse Polarity Protection | Integrated |
| Anti-Islanding Protection | Integrated |
| AC Overcurrent Protection | Integrated |
| AC Short-Circuit Protection | Integrated |
| AC Overvoltage Protection | Integrated |
| AC Surge Protection | Type III |
| Battery Arc-Fault Detection | Integrated |
| Operating Temperature Range | -31°F to 140°F (-35°C to 60°C) |
| Relative Humidity | 0–95% |
| Maximum Operating Altitude | 9,842 ft (3,000 m) |
| Cooling Method | Natural Convection |
| User Interface | LED, App |
| BMS Communication | RS485, CAN |
| Meter Communication | RS485 |
| Portal Communication | LAN (4G Optional) + Bluetooth + Wi-Fi |
| Noise Emission | <20 dB |
| Topology | Non-Isolated |
| Self-Consumption at Night | <20 W (No Backup Output) |
| Ingress Protection Rating | NEMA Type 4X |
| Mounting Method | Wall Mounted |
| Dimensions (W × H × D) | 19.1 × 35.4 × 7.5 in |
| Weight | 65.9 lb |
| Grid Interconnection | UL 1741 SB, California Rule 21, HECO Rule 14, IEEE 1547, IEEE 1547.1 |
| Safety Regulations | UL 1741, CSA 22.2 No. 107.1, UL 1998, UL 1699B |
| Electromagnetic Compatibility | FCC Part 15 Class B |
AC-Coupled Retrofit & Microgrid Capability
The GW6000-SBP-US20 is designed as an AC-coupled retrofit solution for North American residential energy storage. The SBP-US Series supports off-grid applications and unbalanced load output without requiring an extra autotransformer. GoodWe also designed the platform for microgrid operation during blackouts, enabling a compatible PV system to continue generating energy to support load consumption while the utility grid is unavailable.
Battery & Backup Performance
The GW6000-SBP-US20 provides 6,000VA nominal backup output at 120/240V with up to 25A output current. Maximum backup output with the grid can reach 12,000VA for 10 seconds when sufficient PV and battery power are available, while maximum output without the grid is 6,000VA. Maximum efficiency is 97.0%, with a CEC efficiency of 96.0%.
Microgrid Battery Note: Although the standard battery voltage range is 80–495V, GoodWe specifies that the maximum battery voltage is 450V for AC-coupled inverters in microgrid applications.
Integrated Protection & Communications
The GW6000-SBP-US20 incorporates residual current monitoring, battery reverse-polarity protection, anti-islanding protection, AC overcurrent protection, AC short-circuit protection, AC overvoltage protection, Type III AC surge protection, and battery arc-fault detection. Communication options include RS485 and CAN for the battery management system, RS485 for metering, and LAN, optional 4G, Bluetooth, and Wi-Fi for portal connectivity.
Optional EV Charging
The SBP-US Series supports an optional 9.6kW AC Level 2 EV charger with selectable maximum continuous output current of 16A, 24A, 32A, or 40A. Configuration and indication are handled through the app using Wi-Fi and Bluetooth, while the charging interface uses SAE J1772. The 7.6-meter EV charger cable is ordered separately.
About GoodWe:
GoodWe develops solar inverters, energy storage systems, EV charging equipment, backup power solutions, and intelligent energy management technologies for residential and distributed energy applications. Its energy platforms are designed to integrate battery storage, backup power, monitoring, EV charging, and renewable generation into flexible home energy systems.
Flexible 6kW Battery Retrofit and Backup Energy Management
The GoodWe GW6000-SBP-US20 combines 6kW AC output, 6.3kW maximum battery discharge power, high-voltage battery support, 120/240V split-phase backup, AC-coupled retrofit capability, microgrid operation, built-in autotransformer functionality, generator compatibility, and optional EV charging in a flexible residential energy storage inverter. It is particularly well suited for homeowners looking to add battery storage and backup functionality to an existing solar installation.
