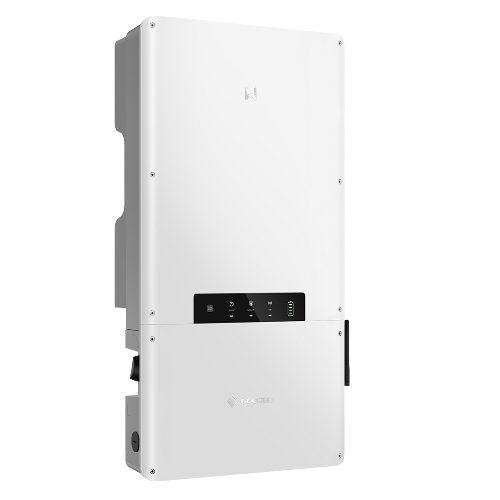

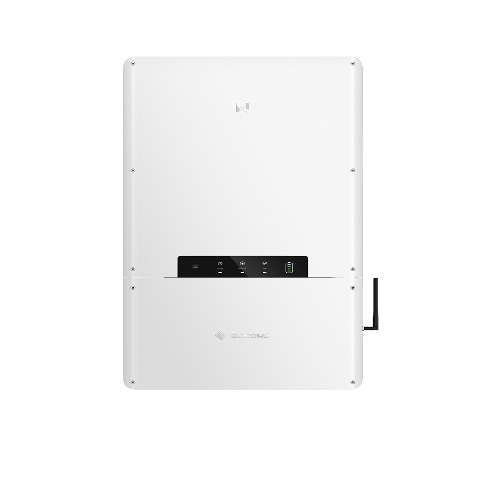

GoodWe 5kW ES-US Series Split phase Hybrid Inverter GW5000-ES-US20
MPN No: GW5000-ES-US20
Expected ship date Sep 08 - 15
In Stock
$838.75
GoodWe 5kW ES-US Series Split phase Hybrid Inverter GW5000-ES-US20
GoodWe 5kW ES-US Series Split phase Hybrid Inverter GW5000-ES-US20
Regular price
$838.75
New
63 IN STOCK
GoodWe 5kW ES-US Series Split phase Hybrid Inverter GW5000-ES-US20
GoodWe 5kW ES-US Series Split phase Hybrid Inverter GW5000-ES-US20
Available
MPN No: GW5000-ES-US20
Regular price
$838.75
Expected ship date Sep 08 - 15
Ships from U.S. Warehouse
Trusted by Thousands
Expert U.S. Support
We offer multiple secure payment options for your convenience
We offer multiple secure payment options for your convenience
Regular price
$838.75
GoodWe 5kW ES-US Series Split phase Hybrid Inverter GW5000-ES-US20
MPN No:
GW5000-ES-US20
Expected ship date Sep 08 - 15
GoodWe 5kW ES-US Series Split-Phase Hybrid Inverter GW5000-ES-US20
The GoodWe GW5000-ES-US20 ES-US Series is a 5kW split-phase high-voltage hybrid inverter designed for residential solar, battery storage, and backup power applications in North America.
Engineered to increase solar self-consumption, it combines PV generation, high-voltage battery integration, grid interaction, and backup capability in one intelligent energy platform.
The ES-US platform also supports an optional GoodWe EV charger, fossil-fuel generator integration, smart monitoring, and multiple communication protocols.
Key Technology
-
5kW Split-Phase Hybrid Inverter
Provides 5,000W nominal on-grid AC output for residential solar, battery storage, and energy management applications. -
High-Voltage Battery Integration
Compatible with lithium-ion batteries operating from 80V to 495V, with a nominal battery voltage of 300V. -
7.5kW Maximum PV Input
Supports up to 7,500W of PV input power, allowing the solar array to be sized above the inverter's nominal AC output. -
Dual MPPT Solar Inputs
Two independent MPP trackers provide flexibility for arrays installed on different roof orientations or with varying solar conditions. -
5kW Battery Charging
Provides up to 5,000W maximum battery charging power and 50A maximum continuous charging current. -
5.25kW Battery Discharging
Supports up to 5,250W maximum battery discharge power with 50A maximum continuous discharge current. -
120/240V Backup Power
Delivers 5,000VA nominal backup output with 120/240V split-phase output for supported residential backup loads. -
10kVA Short-Duration Backup Output
Can provide up to 10,000VA for 10 seconds when sufficient PV and battery power are available, helping accommodate temporary load surges. -
97.6% Maximum Efficiency
High conversion efficiency helps maximize usable energy from the PV and battery system. -
Integrated Rapid Shutdown & AFCI
Includes integrated rapid shutdown, AFCI, battery arc-fault detection, PV string current monitoring, and multiple electrical protection functions. -
Optional EV Charger Integration
The ES-US platform supports an optional Level 2 EV charging function, allowing compatible electric vehicles to charge using solar or grid electricity. -
Fossil Fuel Generator Compatible
Supports integration with a compatible fossil-fuel generator for additional energy resilience. -
Smart Connectivity
Supports LAN, optional 4G, Bluetooth, Wi-Fi, RS485, and CAN communications for monitoring and system integration. -
NEMA Type 4X Enclosure
Durable enclosure provides environmental protection for flexible wall-mounted installation.
Best Uses
-
Residential Solar + Battery Storage
Ideal for homeowners combining PV generation with high-voltage lithium-ion battery storage. -
Home Backup Power
Supports 120/240V split-phase backup power when incorporated into a properly configured system with the required automatic backup device. -
Solar Self-Consumption
Designed to store excess solar generation and make that energy available when household demand exceeds current PV production. -
Solar + Storage + EV Charging
Suitable for integrated home energy installations requiring solar production, battery storage, and optional electric vehicle charging. -
Generator-Integrated Energy Systems
Provides additional flexibility for residential systems incorporating a compatible backup generator.
Product Specifications
| Specification | Details |
|---|---|
| Manufacturer | GoodWe |
| Series | ES-US Series |
| Model / SKU | GW5000-ES-US20 |
| Inverter Type | Split-Phase High-Voltage Hybrid Inverter |
| Nominal AC Output Power | 5,000 W |
| Nominal AC Output Voltage | 240 V |
| AC Output Voltage Range | 211–264 V |
| Nominal AC Grid Frequency | 50 / 60 Hz |
| AC Grid Frequency Range | 58.5–61.2 Hz |
| Maximum AC Current Output to Utility Grid | 20.8 A |
| Maximum AC Current From Utility Grid with EV Charger | 40 A |
| Power Factor | ~1, Adjustable from 0.8 Leading to 0.8 Lagging |
| Maximum Total Harmonic Distortion | <3% |
| Maximum PV Input Power | 7,500 W |
| Maximum PV Input Voltage | 600 V |
| MPPT Operating Voltage Range | 50–550 V |
| PV Start-Up Voltage | 60 V |
| Number of MPPT Trackers | 2 |
| Strings per MPPT | 1 |
| Maximum Input Current per MPPT | 16 A |
| Maximum Short-Circuit Current per MPPT | 23.4 A |
| Battery Type | Lithium-Ion |
| Nominal Battery Voltage | 300 V |
| Battery Voltage Range | 80–495 V |
| Battery Start-Up Voltage | 80 V |
| Number of Battery Inputs | 1 |
| Maximum Continuous Charging Current | 50 A |
| Maximum Continuous Discharging Current | 50 A |
| Maximum Battery Charging Power | 5,000 W |
| Maximum Battery Discharging Power | 5,250 W |
| Backup Nominal Apparent Power | 5,000 VA |
| Maximum Backup Apparent Power with Grid | 5,000 VA Continuous / 10,000 VA for 10 Seconds |
| Maximum Backup Output Current | 20.8 A |
| Backup Output Voltage | 240 / 120 V |
| Backup Output Frequency | 60 Hz |
| Backup Output THDv | <3% @ Linear Load |
| Maximum Efficiency | 97.6% |
| Cooling | Natural Convection |
| Topology | Non-Isolated |
| Operating Temperature | -31°F to 140°F (-35°C to 60°C) |
| Relative Humidity | 0–95% |
| Maximum Operating Altitude | 9,842 ft (3,000 m) |
| User Interface | LED, App |
| BMS Communication | RS485, CAN |
| Meter Communication | RS485 |
| Portal Communication | LAN (4G Optional) + Bluetooth + Wi-Fi |
| Noise Emission | <20 dB |
| Self-Consumption at Night | <20 W (No Backup Output) |
| Protection Rating | NEMA Type 4X |
| Mounting Method | Wall Mounted |
| Dimensions (W × H × D) | 19.1 × 35.4 × 7.5 in |
| Weight | 72.3 lb |
| Grid Interconnection | UL 1741 SB, California Rule 21, HECO Rule 14, IEEE 1547, IEEE 1547.1 |
| Safety Regulations | UL 1741, CSA 22.2 No. 107.1, UL 1998, UL 1699B |
| Electromagnetic Compatibility | FCC Part 15 Class B |
Integrated Safety & Protection
The GW5000-ES-US20 incorporates extensive protection functionality, including PV string current monitoring, PV insulation resistance detection, residual current monitoring, PV and battery reverse-polarity protection, anti-islanding protection, AC overcurrent and short-circuit protection, AC overvoltage protection, AFCI, battery arc-fault detection, and integrated rapid shutdown. It also incorporates a Type II DC surge protection device and Type III AC surge protection.
Backup Power Capability
The inverter provides 5,000VA nominal backup power at 120/240V and can reach 10,000VA for up to 10 seconds when sufficient PV and battery power are available. GoodWe specifies that an Automatic Backup Device is required for the residential backup function.
About GoodWe:
GoodWe develops solar inverters, energy storage solutions, EV charging equipment, and intelligent energy management technologies for residential and distributed energy applications. Its integrated energy platforms are designed to connect solar generation, battery storage, backup power, monitoring, and smart energy equipment within a unified ecosystem.
Flexible Solar, Storage and Backup Energy Management
The GoodWe GW5000-ES-US20 combines 5kW AC output, 7.5kW PV input capacity, dual MPPTs, high-voltage battery support, 120/240V backup capability, integrated safety features, and smart communications in a compact residential hybrid inverter. With optional EV charging and generator compatibility, the ES-US platform provides a flexible foundation for modern home energy systems.
