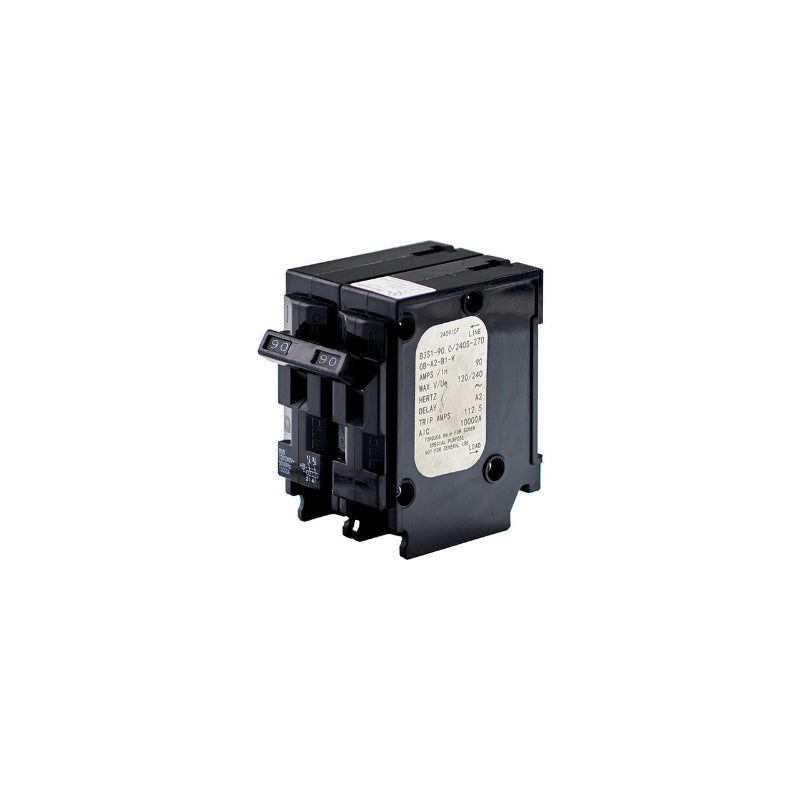

EG4 90 Amp AC Breaker BSB Series (FlexBoss Inverter) EG4BREAKER90A
MPN No: EG4BREAKER90A
Expected ship date Nov 26 - Dec 03
In Stock
$53.28
EG4 90 Amp AC Breaker BSB Series (FlexBoss Inverter) EG4BREAKER90A
EG4 90 Amp AC Breaker BSB Series (FlexBoss Inverter) EG4BREAKER90A
Regular price
$53.28
LESS THAN 50
EG4 90 Amp AC Breaker BSB Series (FlexBoss Inverter) EG4BREAKER90A
EG4 90 Amp AC Breaker BSB Series (FlexBoss Inverter) EG4BREAKER90A
In Stock
MPN No: EG4BREAKER90A
Regular price
$53.28
Expected ship date Nov 26 - Dec 03
We offer multiple secure payment options for your convenience
We offer multiple secure payment options for your convenience
Data Sheet
Regular price
$53.28
EG4 90 Amp AC Breaker BSB Series (FlexBoss Inverter) EG4BREAKER90A
MPN No:
EG4BREAKER90A
Expected ship date Nov 26 - Dec 03
In Stock
EG4 EG4BREAKER90A 90 Amp AC Breaker BSB Series (FlexBoss Inverter)
Key Features:
- 90A DC Circuit Breaker – Designed for overload and short circuit protection.
- 120/240V AC & 250V DC Rated – Suitable for AC and DC electrical systems.
- Interrupting Capacity of 10,000A – Provides high-level safety in power systems.
- Wide Operating Temperature Range – Functions between -40°C and +85°C.
- Trip-Free Design – Automatically disconnects during overcurrent events, even if manually held ON.
- Mechanical Lifecycle of 10,000 Operations – Built for long-term durability.
- UL489 & IEC 60947-2 Certified – Meets global safety standards for circuit protection.
- 1-Pole, 2-Pole, 3-Pole, 4-Pole Configurations – Supports different installation needs.
- Industrial-Grade Construction – Ideal for solar, telecommunications, marine, and industrial applications.
Best Applications:
- Solar PV Systems & Battery Protection
- Industrial Automation & Control Panels
- UPS & Backup Power Systems
- Railway & Marine Electrical Systems
Installation & Compatibility:
- Compatible with wire sizes #16-#4 AWG (1.31-21.2 mm²) and #3-#2/0 AWG (26.7-67.4 mm²).
- Torque rating of 2.8 N·m (small gauge) to 6.8 N·m (large gauge) for secure connections.
- Can be installed in vertical or horizontal configurations.
About EG4 Electronics:
EG4 specializes in high-performance electrical components for solar, industrial, and automation applications, offering reliable and certified circuit protection solutions.
Technical Specifications:
| Specification | Details |
|---|---|
| Model Number | EG4BREAKER90A |
| Rated Current | 90A |
| Rated Voltage (AC/DC) | 120V / 240V AC, 250V DC |
| Interrupting Capacity (AIC) | 10,000A |
| Rated Insulation Voltage (Ui) | 500V |
| Impulse Withstand Voltage (Uimp) | 4kV |
| Electrical Lifecycle | 6,000 Cycles |
| Mechanical Lifecycle | 10,000 Cycles |
| Operating Temperature Range | -40°C to +85°C |
| Trip-Free Mechanism | Yes |
| Certifications | UL 489, IEC 60947-2 |
| Weight | 1 lb |
