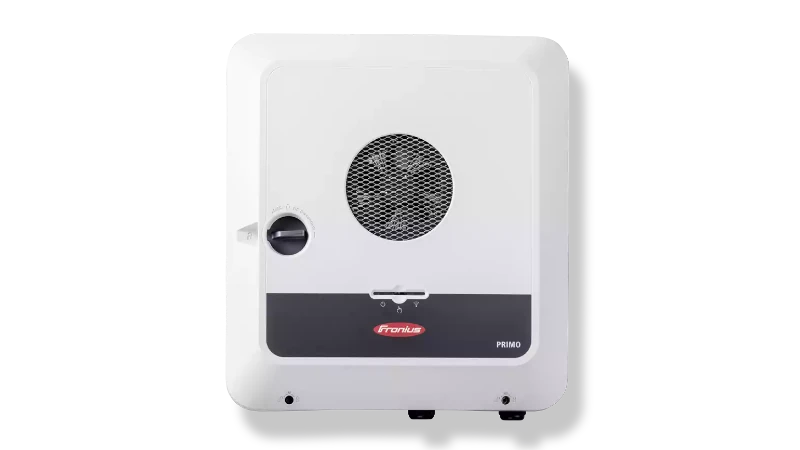

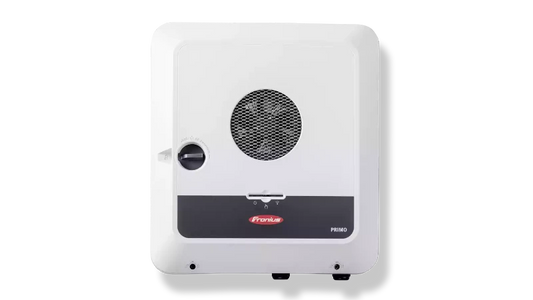

Fronius Primo 10kW GEN24 Inverter 208-240 Plus Hybrid 4,210,144,802
MPN No: 4,210,144,802
Expected ship date Jun 23 - 30
In Stock
$3,794.48
Fronius Primo 10kW GEN24 Inverter 208-240 Plus Hybrid 4,210,144,802
Fronius Primo 10kW GEN24 Inverter 208-240 Plus Hybrid 4,210,144,802
Regular price
$3,794.48
LESS THAN 50
Fronius Primo 10kW GEN24 Inverter 208-240 Plus Hybrid 4,210,144,802
Fronius Primo 10kW GEN24 Inverter 208-240 Plus Hybrid 4,210,144,802
Available
MPN No: 4,210,144,802
Regular price
$3,794.48
Expected ship date Jun 23 - 30
Ships from U.S. Warehouse
Trusted by Thousands
Expert U.S. Support
We offer multiple secure payment options for your convenience
We offer multiple secure payment options for your convenience
Data Sheet
Regular price
$3,794.48
Fronius Primo 10kW GEN24 Inverter 208-240 Plus Hybrid 4,210,144,802
MPN No:
4,210,144,802
Expected ship date Jun 23 - 30
Fronius Primo 10kW GEN24 Inverter 208-240 Plus Hybrid 4,210,144,802
The Fronius Primo GEN24 Plus 10.0kW Hybrid Inverter is a premium single-phase energy management solution designed for residential solar and battery storage systems. Combining advanced hybrid inverter technology, integrated backup power functionality, and intelligent energy management features, the Primo GEN24 Plus delivers maximum solar self-consumption while providing reliable energy security. Designed for 208-240V applications, this inverter supports battery integration, advanced monitoring, and future-ready energy management capabilities.
With dual MPPT inputs, integrated Wi-Fi and Ethernet connectivity, active cooling technology, and compatibility with high-voltage battery systems, the GEN24 Plus serves as the central hub for modern solar-plus-storage installations. Its PV Point backup power feature provides essential power during grid outages, even without battery storage.
Key Technology
-
10kW Hybrid Inverter Platform
Combines solar generation, battery storage, and intelligent energy management in a single unit. -
Dual MPPT Design
Two independent MPPT trackers maximize energy harvest from multiple roof orientations and array configurations. -
PV Point Backup Power
Provides integrated backup power through a dedicated outlet during daylight grid outages, even without a battery. -
Battery-Ready Hybrid Architecture
Supports high-voltage battery systems for increased energy independence and self-consumption. -
Integrated Monitoring & Communications
Includes Wi-Fi, Ethernet, Modbus TCP, and Solar.web monitoring capabilities. -
Active Cooling Technology
Regulated air cooling improves reliability and extends inverter service life. -
Smart Energy Management
Supports load management, EV charging integration, and advanced energy optimization. -
Type 4X / IP66 Protection
Designed for indoor and outdoor installations with exceptional environmental durability.
Best Uses
-
Residential Solar + Storage Systems
Ideal for homeowners seeking energy independence and battery backup capability. -
Whole-Home Energy Management
Supports advanced load management and solar self-consumption strategies. -
Backup Power Applications
Provides essential backup functionality during utility outages. -
Future-Ready Solar Installations
Designed for battery integration, EV charging, and smart home energy systems.
Warranty
- Standard Manufacturer Warranty: 10 Years
Product Specifications
| Specification | Details |
|---|---|
| Manufacturer | Fronius |
| Model | Primo GEN24 Plus 10.0 208-240 |
| Part Number | 4,210,144,802 |
| Product Type | Single-Phase Hybrid Solar Inverter |
| Nominal AC Output Power | 10,000W |
| Maximum AC Output Power | 10,000VA |
| Grid Voltage | 208-240VAC Single Phase |
| Number of MPPT Trackers | 2 |
| Maximum PV Input Voltage | 600VDC |
| MPP Voltage Range | 65V – 480V |
| Maximum Input Current | 25A / 12.5A |
| Battery Voltage Range | 150V – 455V |
| Maximum Battery Charge/Discharge Power | 10.36kW |
| Maximum Efficiency | 97.3% |
| Communication Interfaces | Wi-Fi, Ethernet, Modbus TCP, RS485 |
| Monitoring Platform | Fronius Solar.web |
| Backup Power Function | PV Point Integrated |
| Cooling | Active Regulated Air Cooling |
| Protection Rating | Type 4X / IP66 |
| Installation | Indoor / Outdoor |
| Operating Temperature | -40°F to 140°F (-40°C to 60°C) |
| Dimensions | 23.4 × 20.8 × 7.1 in |
| Weight | 51.5 lb |
| Inverter Topology | Transformerless |
| Country of Manufacture | Austria |
About Fronius:
Founded in Austria in 1945, Fronius is a global technology leader in solar energy, battery storage integration, and energy management solutions. Fronius inverters are recognized worldwide for exceptional reliability, advanced monitoring capabilities, and innovative backup power technologies.
Advanced Hybrid Solar & Storage Control with Integrated Backup Power
The Fronius Primo GEN24 Plus 10.0kW Hybrid Inverter combines premium European engineering, intelligent energy management, battery-ready architecture, and integrated backup power functionality—making it an ideal centerpiece for high-performance residential solar and storage systems.
